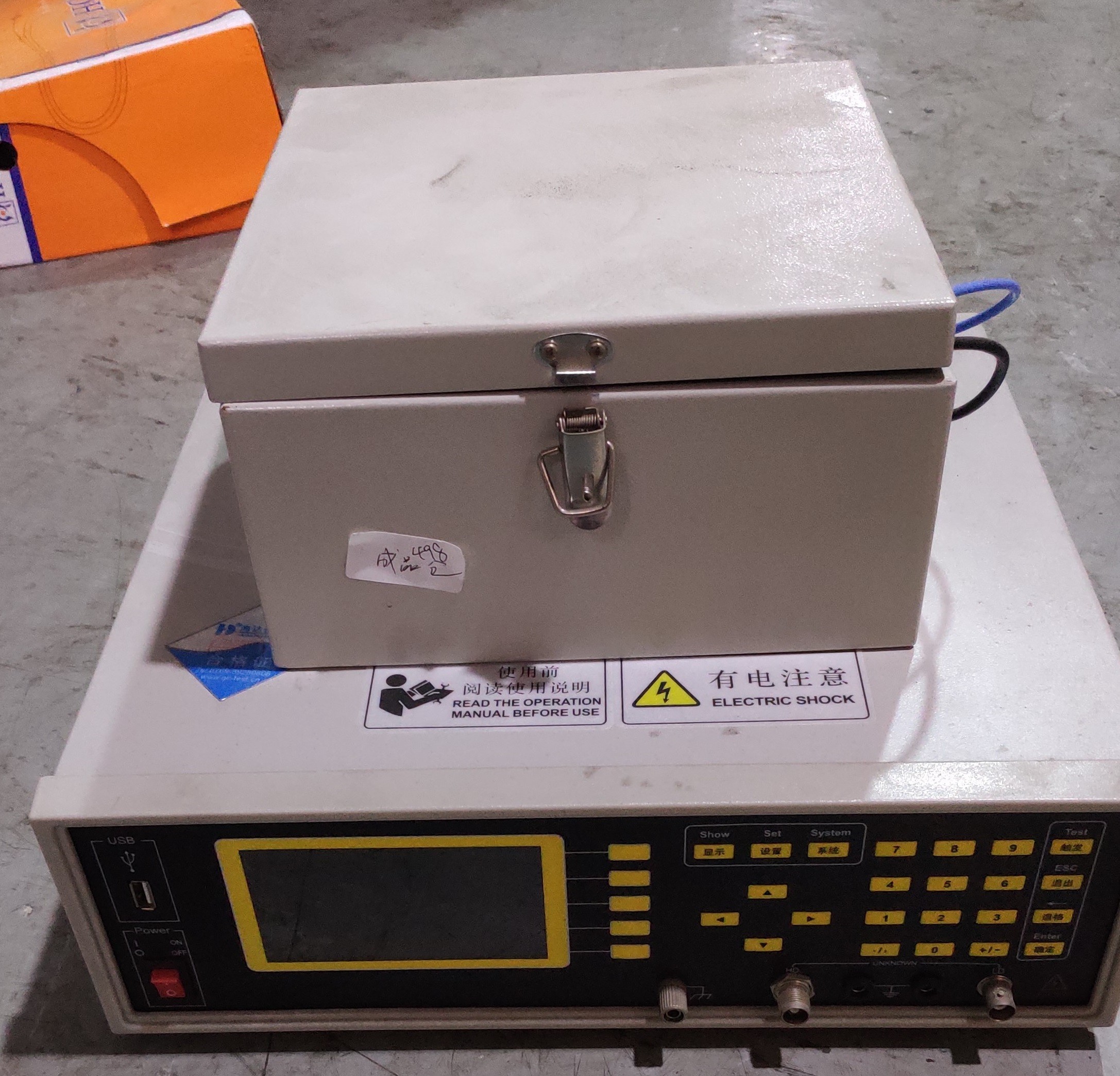

EN 1149-2 Electrostatic Footwear Testing Equipment Textile Resistance Tester

EN 1149-2 Electrostatic Footwear Testing Equipment Textile Resistance Tester

Brand Name: HAIDA
Model Number: HD-G828
MOQ: 1 Set
Price: Negotiable
Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash, escrow
Supply Ability: 30 Sets per Month Haida
Detail Information
Place of Origin:
Guangdong, China (Mainland)
Certification:
CE,ISO
Power:
Electronic
Working Power:
AC220V±10%,≤15W
Test Range:
1x10^3 Ω~1x10^14 Ω
Machine Dimension:
295mmx270mmx110mm
Packaging Details:
ach set protected with resin fiber and PP film, then put into Strong wooden case with operation man
Supply Ability:
30 Sets per Month Haida
Highlight:

EN 1149-2 Footwear Testing Equipment

,

HAIDA Footwear Testing Equipment

Product Description

EN 1149-2 Electrostatic Device Footwear Test Tester Textile Resistance Tester









Test standard



EN 1149-1and EN 1149-2







Technical parameters



Technical Index HD-G828
Test range 1x10^3 Ω~1x10^14 Ω
Accuracy ≤±5%
Test voltage DC100V±3%
Working power AC220V±10%,≤15W
Stability Connect the 1×10^8 Ω standard resistance to the instrument and observe the change for less than ±2% for 1 hour. The instrument can work continuously for 8 hours.
Machine dimension

295mmx270mmx110mm

































Application



Textile resistance tester can be used for scientific research, laboratories, textile production enterprises, protective clothing manufacturers, trade agencies and security protection management departments on the different needs of textile electrostatic resistance test. It provides scientific and reliable basis for the development of antistatic textiles, quality control in the production process, and the detection of electrostatic properties in the use of textile trade and protective clothing.












EN 1149-2 Electrostatic Footwear Testing Equipment Textile Resistance Tester 0







We can provide



1.Design & Production : Solution Consultation for each order

   Recommend the most cost -performance machine

   Research & Develop the suitable one for Special- designed Model.

2.Shipping & Delivery: One-Stop Service

   Production- Deliver to your door - Installation & Training- Technical Support

3.Warranty

   1 year warranty with lifetime technology support

4.After-Sale Service

   React within 2 Hours

   Video inspection & on-site service combined
