| Place of Origin: | Guangdong, China (Mainland) |
|---|---|
| Brand Name: | HAIDA |
| Certification: | ISO 9001:2000; ISO 9001:2008 |
| Model Number: | HD-P808 |
| Minimum Order Quantity: | 1 Set |
| Price: | Negotiable |
| Packaging Details: | ach set protected with resin fiber and PP film, then put into Strong wooden case with operation man |
| Delivery Time: | 20 days after order confirmed |
| Payment Terms: | L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash, escrow |
| Supply Ability: | 30 Sets per Month Haida |
| Power: | 1 Phase, AV 220V, 50/60HZ | Use: | Leather |
|---|---|---|---|
| Count: | LCD,0~999,999 | Product Name: | Leather Rubbing Fastness Tester |
| Test Speed: | 40±2cpm | ||
| High Light: | ISO 20344 7.3 Footwear Testing Equipment,500g Load Footwear Testing Equipment |
||

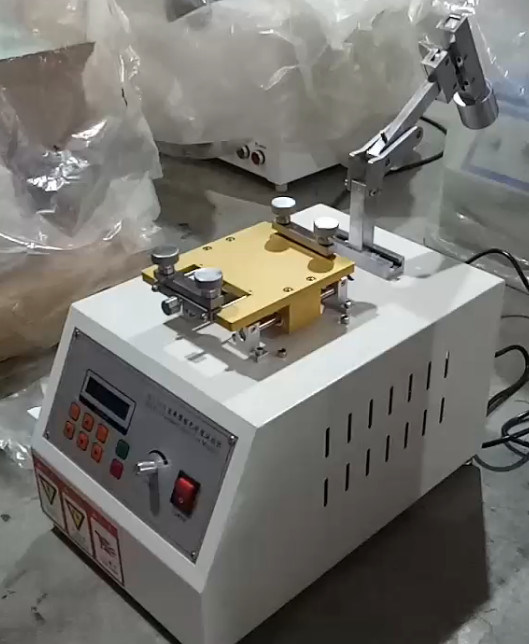

ISO 20344 7.3 IULTCS Leather Rubbing Fastness Tester, Footwear Testing Equipment
STANDARD
ISO-11640 DIN 4843, QB/T 2226 QB/T 2537, ISO 20344 7.3
STANDARD FEATURE
| Technical Index | HD-P808 |
| Specimen size | 120x20mm |
| Wool cloth area | 15mmx15mm |
| Test speed | 40±2cpm |
| Load | 500g |
| Rubbing distance | 35mm |
| Count | LCD,0~999,999 |
| Power | 1 phase, AV 220V, 50/60HZ |
| N.Weight | Approx 70kg |
| Volumn | 290x480x530mm |
APPLICATION
Leather Rubbing Fastness Tester in the test dyeing uppers, leather lining, after rubbing the extent of damage and Discoloration.
Quality Control
A) Quality assurance items
The guarantee period with FOC within one year (not including nonexpendable & transport and travel fees)
During the guarantee period, Haida shall supply free maintenance or replacement for the damaged part(just for nonexpendable part) induced by non-human damage;
If any quality problems occurs within the guarantee period, and Haida must provide on-site service, the transport and travel expense shall be borne by customer;
If any big quality problems occurs out of the guarantee period, Haida will provide a maintain service, the transport and travel expense shall be borne by customer, also charge for a favorable price;
Haida will provide a lifetime favorable price to the buyer with the materials and spare parts used in system operation, equipment maintenance;
B) The main quality warranty maintenance certificate
If there is any dispute please refer to our guarantee letter, so:
1. please keep the guarantee letter, if you lost it, please connect with us in a month.
2. If the guarantee letter has been altered or it has no our stamp, it is useless.
