85kg Footwear Withstand Voltage Tester 1000v/Sec Designated Voltage

Basic Information
Place of Origin: Guangdong, China (Mainland)
Brand Name: HAIDA
Certification: CE,ISO
Model Number: HD-P825
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: ach set protected with resin fiber and PP film, then put into Strong wooden case with operation man
Delivery Time: 20 days after order confirmed
Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash, escrow
Supply Ability: 30 Sets per Month Haida
Detail Information
Power: Electronic Capacity: 0.5KVA
Output Voltage: AC 0 - 20KV (Adjustable) Test Frequency/time: 60HZ, 1 Min
Test Space: 58×38×54cm Metal Net (Sample Plate): 40mm×20mm
High Light:

Footwear Withstand Voltage Tester


1000v/Sec Footwear Withstand Voltage Tester

Product Description

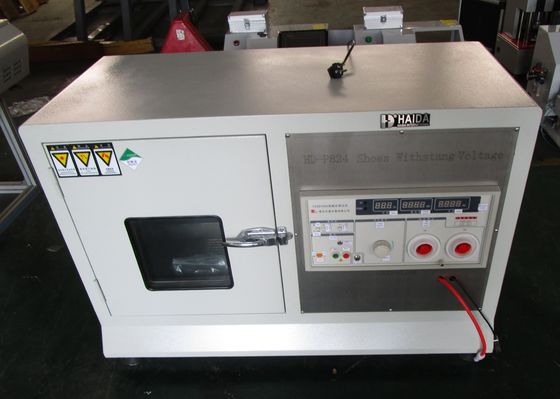

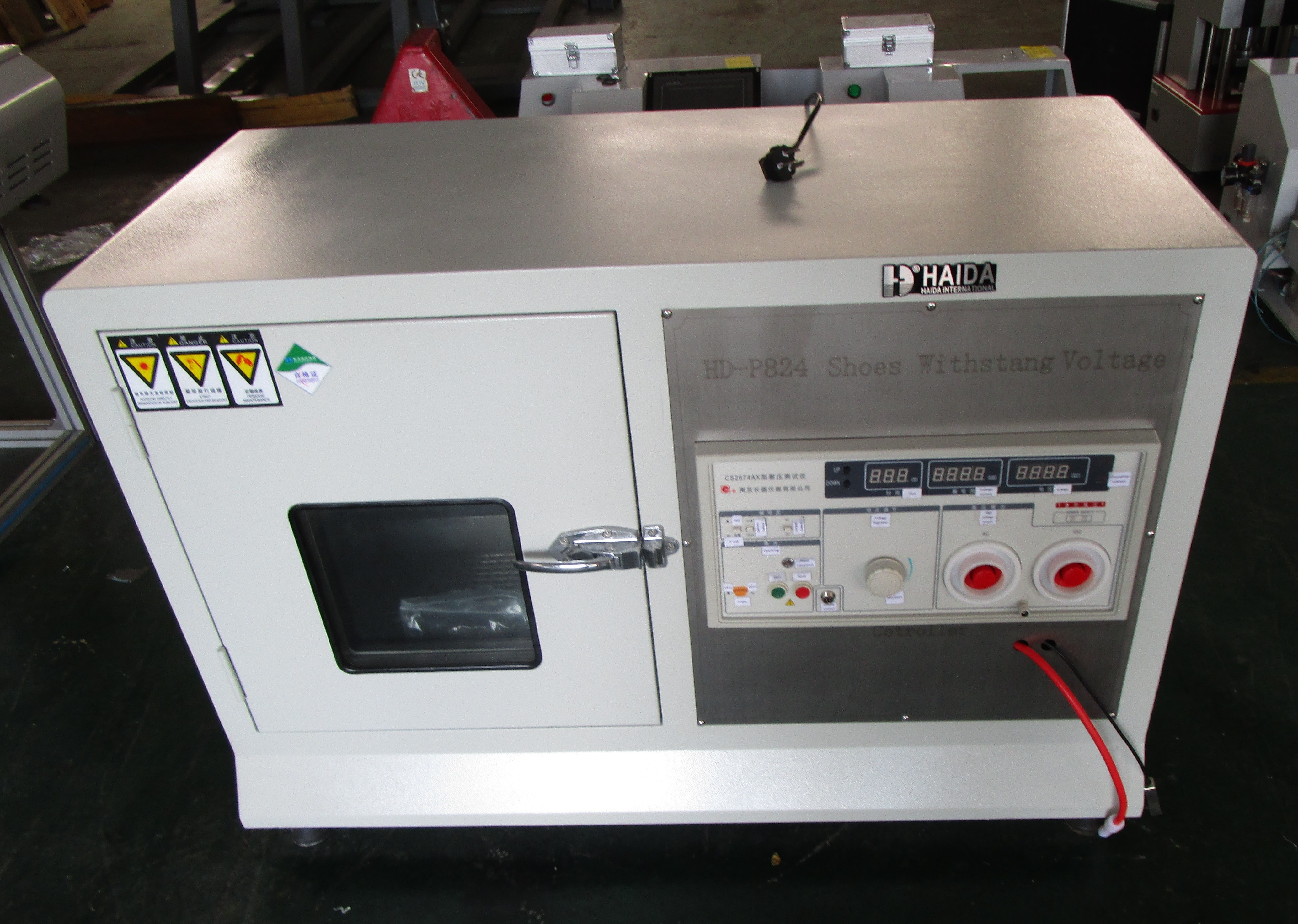

85kg Footwear Withstand Voltage Tester 1000v/Sec To The Designated Voltage





Test standard


ANS-Z41, CSA-Z195, GB12011, ISO 20345:2011




Product introduction


Footwear withstand voltage tester,It used to test if footwear soles or insulation materials can withstand voltage value and to understand the extent of withstand voltage.




Standard parameters


Item Specification
Test voltage 1000v/sec to the designated voltage
Capacity 0.5KVA
Input voltage AC220V
Output voltage AC 0 - 20KV (Adjustable)
Test frequency/time 60HZ, 1 min
Conductive steel diameter 3mm
The inside electrod (steel) layer depth Above 30mm
Metal net (Sample plate) 40mm×20mm
Test space 58×38×54cm
Machine size (L×W×H) 121×48×75cm
Weight 85kg
Power AC220V, 50HZ




















footwear withstand voltage tester      footwear withstand voltage tester
