Spuncture Resistance Tester Puncture Strength Testing Machine With Load Sensor

Basic Information
Place of Origin: Guangdong, China (Mainland)
Brand Name: HAIDA
Certification: CE,ISO
Model Number: HD-P809
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: ach set protected with resin fiber and PP film, then put into Strong wooden case with operation man
Delivery Time: 20 days after order confirmed
Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash, escrow
Supply Ability: 30 Sets per Month Haida
Detail Information
Power: Electronic Machine Size: 720*300*830 Mm
Puncture Speed: 10±3mm/min Sensor: Load Sensor
Product Name: Shoe Compression Puncture Tester Use: Shoes
High Light:

10mm/Min Spuncture Resistance Tester


Load Sensor Spuncture Resistance Tester


Shoes Puncture Strength Testing Machine

Product Description

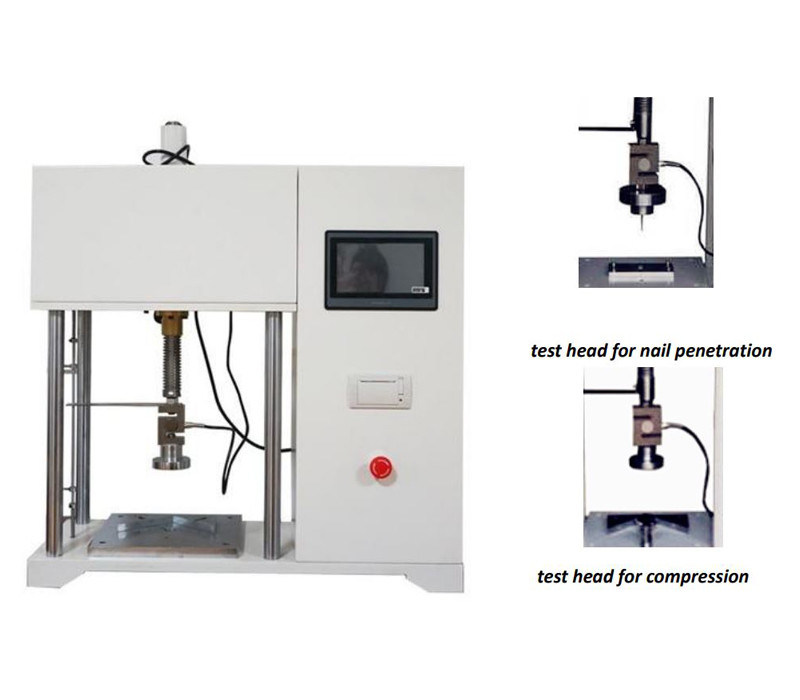

Spuncture Resistance Tester , Puncture Strength Tester With Load Sensor​






ISO 20344 5.5/EN 12568 for compression tester for toe cap& ISO 20344.5.8.2 nail penetration test for sole.






Compression capacity (EN)15±0.1kN
Compression speed (EN)5±2mm/min
Hardness of Compression plate (EN)60HRC
Puncture nail 4.50±0.05 m, 60 HRC
Sensor Load sensor
Resolution 1/10,000
Puncture speed 10±3mm/min
Machine weight 115kg
Machine size 720*300*830 mm








Puncture Strength Tester is used to test Anti compression and nail resistance of safety footwear.








spuncture resistance tester






How to install and use the product?

The product is shipped with an operating instructions and video of English version.or we will send you an operation video to teach you how to install and use the product with English speaking. However, if you need us to teach you face to face, please let us know in advance.


How about the packing for machine, is it safely protected during transportation?
Our machine is packed by standard export wooden box, it won’t be damaged. We’ve delivered many testing machines abroad by sea or by air without damage.


What is the order process?
Inquiry - quotation - communication - order confirming - deposit payment - production - testing and debugging - balance payment - packing - delivery - customer receiving - after service.
