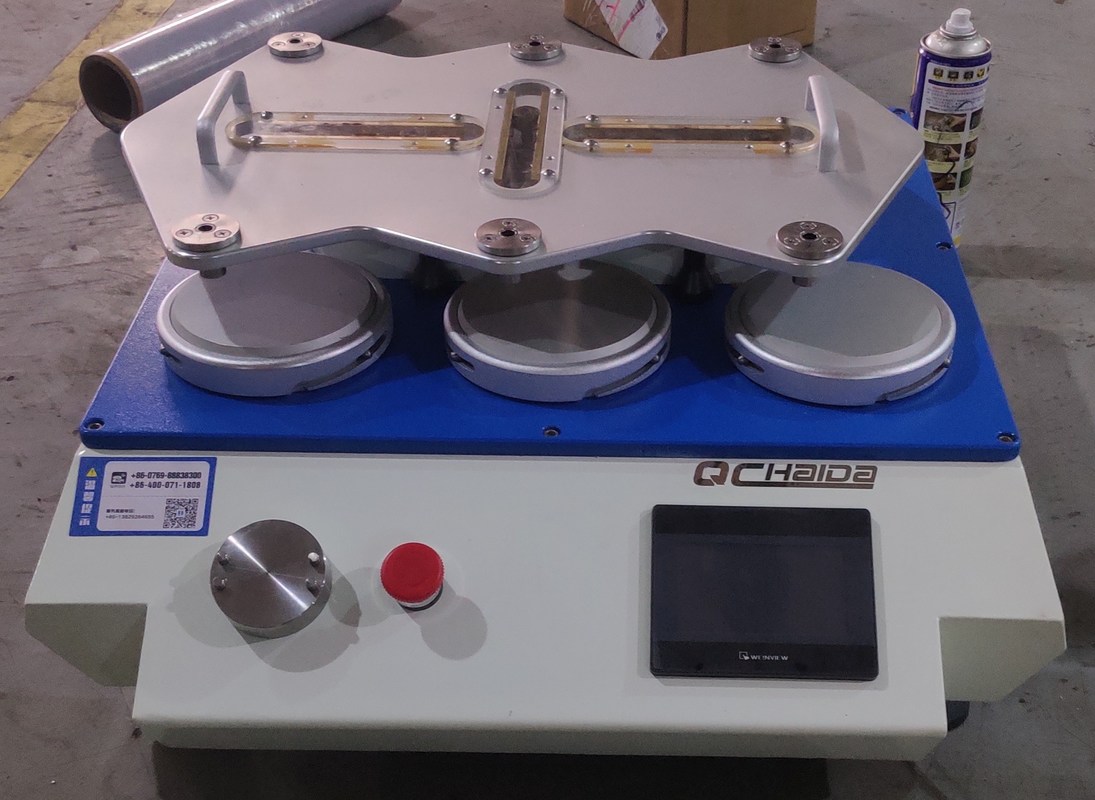

Martindale Abrasion Tester Footwear Testing Machine 140mm Sample Diameter

Basic Information
Place of Origin: Guangdong, China (Mainland)
Brand Name: HAIDA
Certification: CE,ISO
Model Number: HD-P306
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: ach set protected with resin fiber and PP film, then put into Strong wooden case with operation man
Delivery Time: 20 days after order confirmed
Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash, escrow
Supply Ability: 30 Sets per Month Haida
Detail Information
Power: AC 220V/50Hz Interface: LCD Display
Pace Speed Of The Holder: 50-2r/min Sample Loading Pressure Hammer: 2385±10g
Diameter Of Abrasion Fabric: 140mm Diameter Of Specimen: 38mm
Maximum Stroke: 24 ± 0.5mm, 60.5 ± 0.5mm
High Light:

140mm Diameter Footwear Testing Machine


2r/min Footwear Testing Machine


Martindale Abrasion Tester

Product Description

 Martindale Abrasion Tester , Footwear Testing Equipment 140mm Sample Diameter




Test Standard


ASTM D4970, ISO12945-2 and other pilling degree test;

ASTM D4966, ISO12947 and other fabric abrasion tests.




Product Description


Martindale abrasion tester mainly applies to the pilling & abrasion resistance test of textile the similar fabric.

Testing the samples as per the standard, test can be classified as dry test and wet test. And test the samples Lissajous-oriented for the regulated times, then observe the difference between it and the original samples and decide the grade of scrubbing resistance.





Product Parameters


Technical Index HD-P306-4 HD-P306-6 HD-P306-8
Consumables Baize 4,Testing Cotton 4 Baize 6,Testing Cotton 6 Baize 8 ,Testing Cotton 8
Interface LCD display
Count display Projected Count: 0 ~ 999 999 times;Cumulative count: 0 ~ 99 9999 times
Maximum stroke 24 ± 0.5mm, 60.5 ± 0.5mm
Loading : a. Holder:200±1g
b. Dress material counter weight: 395±2g
c. Furnishings/Leather material counter weight: 594±2g
d. Stainless steel butterfly slice: 260±1g
Abrasion chunk effective rub diameter A model: 200g(1.96N,9KPa) , abrasion head¢ 28.8 -0.084mm
Pace speed of the holder 50-2r/min
Sample loading pressure hammer 2385±10g
Diameter of abrasion fabric 140mm
Diameter of Specimen 38mm
Power AC 220V/50Hz

































Product Features


1. Adopt with LCD touch screen, clear and easy to operate;

2. With pill and abrasion testing progress, can meet various international standards;

3. Use reduce and increase counting testing method for easy operation;

4. With imported PLC, reliable and suitable for long time test.

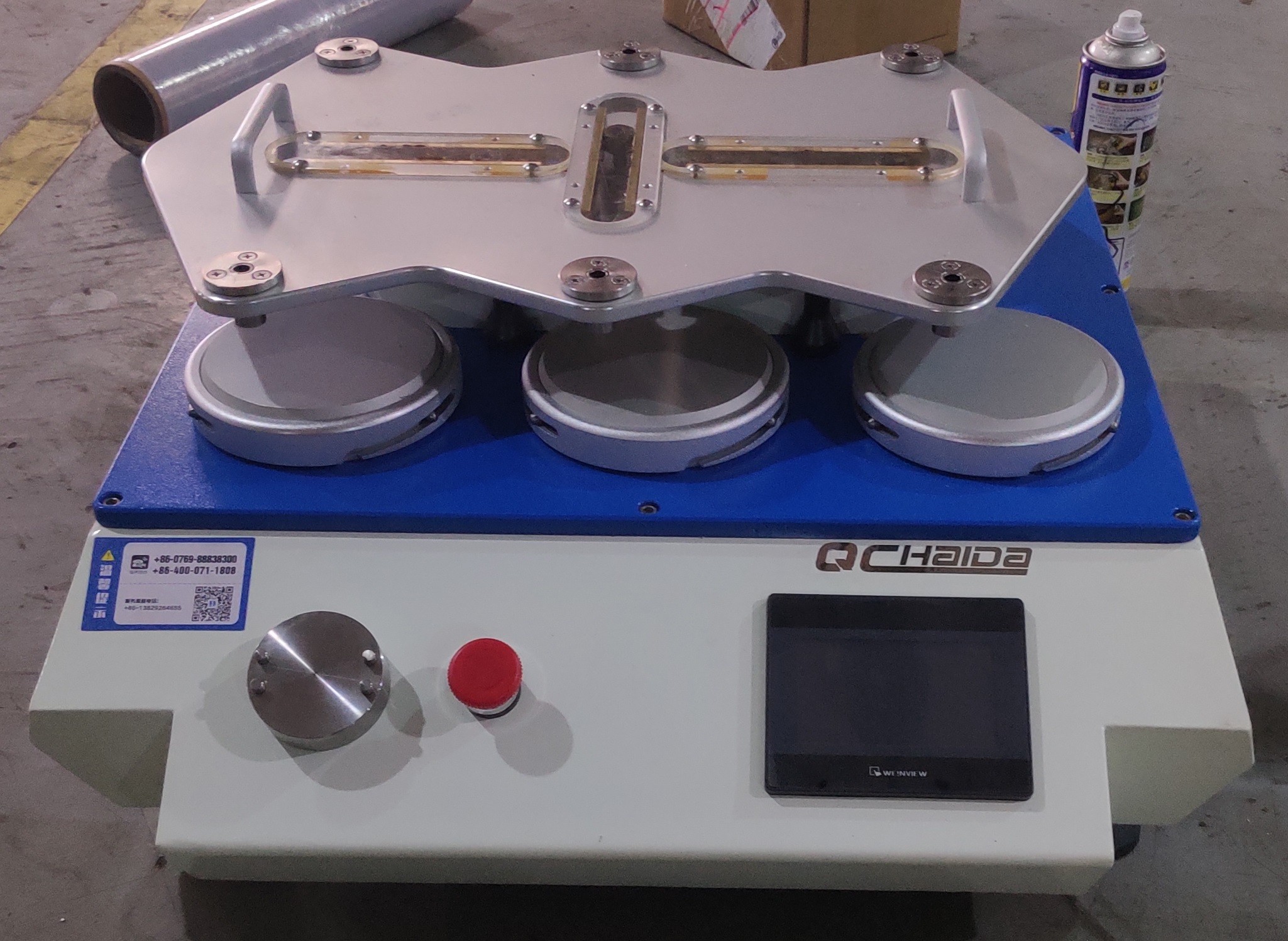

martindale abrasion tester   martindale abrasion tester
