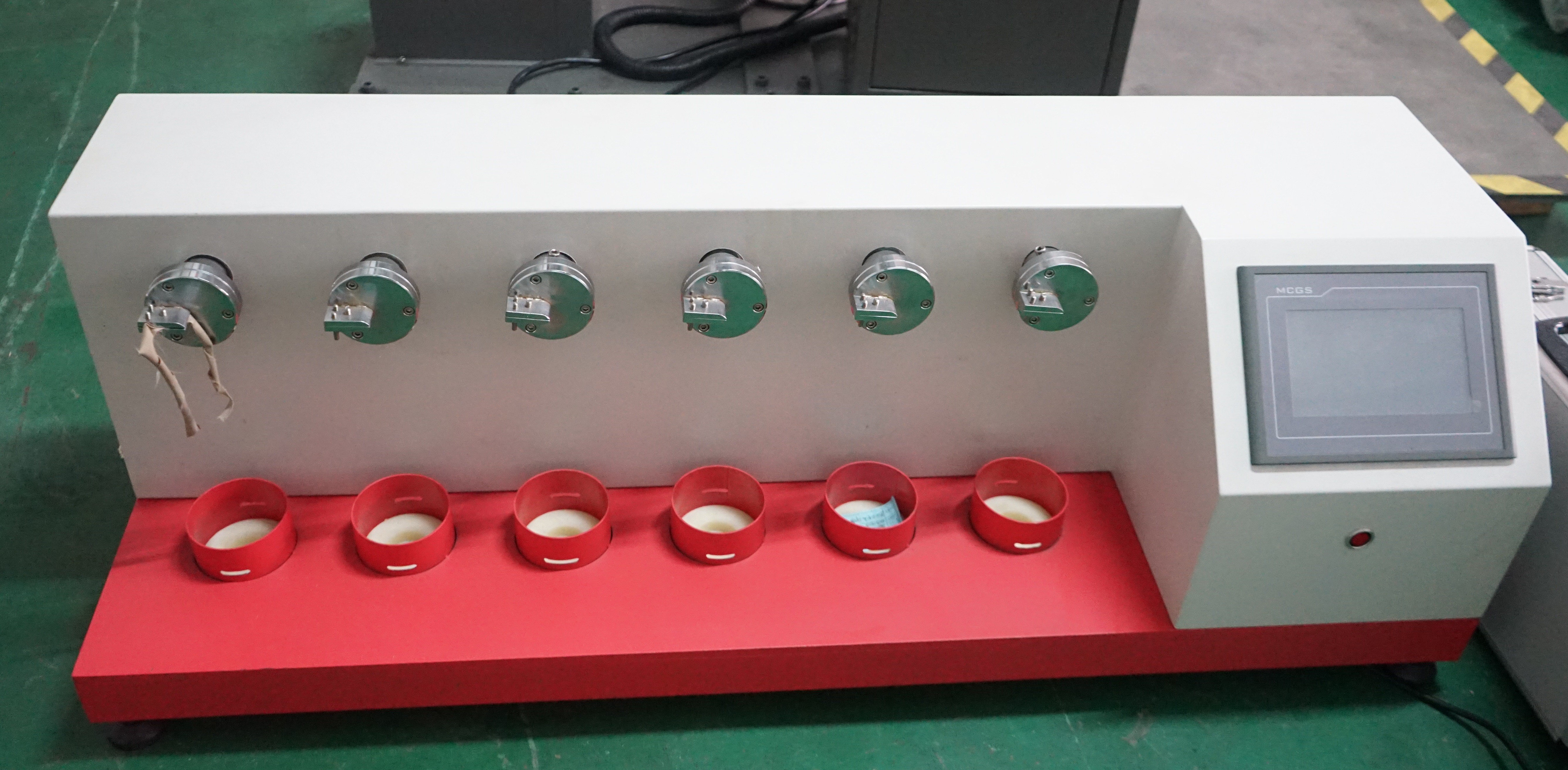

QB/T 1472 Footwear Testing Equipment With 6 Stations Intersole Fibreboard Zigzag Tester

Brand Name:	HAIDA
Model Number:	HD-P887
MOQ:	1 Set
Price:	Negotiable
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash, escrow
Supply Ability:	30 Sets per Month Haida

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong, China (Mainland)

Certification:

CE,ISO

Power:

Electronic

Upper Grip:

6 Stations

Lower Grip:

2kg, 6pcs

Angle:

90°±1°

Weight:

Approx. 150kg

Supply:

AV 220V, 50/60HZ

Packaging Details:

ach set protected with resin fiber and PP film, then put into Strong wooden case with operation man

Supply Ability:

30 Sets per Month Haida

Highlight:

QB/T 1472 Footwear Testing Equipment

6 Stations Footwear Testing Equipment

2kg Lower Grip Footwear Testing Equipment

Product Description

QB/T 1472 Footwear Tester With 6 Stations , Intersole Fibreboard Zigzag Tester

STANDARD

BS 5131,QB/T 1472

STANDARD FEATURES

Upper grip	6 stations
Lower grip	2kg, 6pcs
Speed	60r/min±10/min
Angle	90°±1°
Weight	Approx. 150kg
Power	1 phase, AV 220V, 50/60HZ
Size (WDH)	112x26x32cm

Our machine is packed by standard export wooden box, it won’t be damaged. We’ve delivered many testing machines abroad by sea or by air without damage.

APPLICATION

Fiberboard flexing Tester is used to test the fiberboards such as insole foreparts and stiffener that are flexed or deformed in wear to measure its quality. During test, the specimen is rotated through 180°(90°each side of vertical) back and forth under a certain load until it breaks.
