| Place of Origin: | Guangdong, China (Mainland) |
|---|---|
| Brand Name: | HAIDA |
| Certification: | CE,ISO |
| Model Number: | HD-P810 |
| Minimum Order Quantity: | 1 Set |
| Price: | Negotiable |
| Packaging Details: | ach set protected with resin fiber and PP film, then put into Strong wooden case with operation man |
| Delivery Time: | 20 days after order confirmed |
| Payment Terms: | L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash, escrow |
| Supply Ability: | 30 Sets per Month Haida |
| Power: | Electronic | Rotation Angle: | 30° |
|---|---|---|---|
| Load: | 200g, 4pcs | Controller: | Pointer Type |
| Size (W*D*H): | 45x20x45cm | Product Name: | Insole Back-part Stiffness Tester |
| High Light: | 4pcs Load Shoe Wear Tester,Bending Stiffness Shoe Wear Tester,30 Degree Rotation Shoe Wear Tester |
||

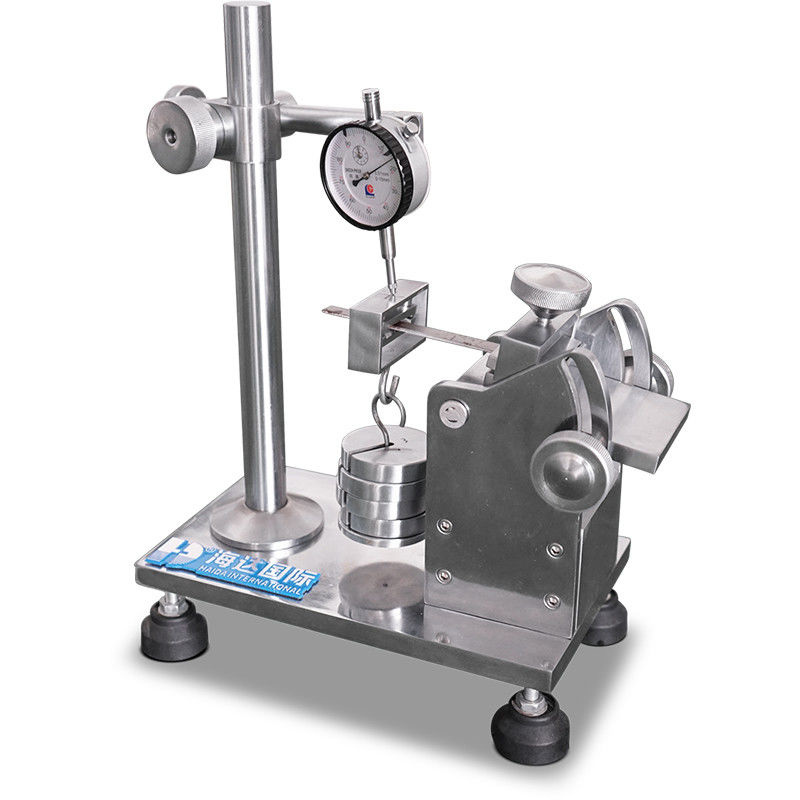

4pcs Load Shoe Wear Tester , Bending Stiffness Tester Rotation Angle 30degree
APPLICATION
This machine is used to measure the stiffness in the longitudinal direction of steel shanks used for the reinforcement of the waist region of shoes. The shank is clamped at its heel end and bent as a cantilever beam by masses added to its forward end. The amount of bending is measured and used to calculate the flexural rigidity of the shank.
STANDARD
QB/T 1813
STANDARD FEATURES
| Rotation angle | 30° |
| Length of measuring clip | 60±0.02mm |
| Depth of clamp for front end | 12mm |
| Load | 200g, 4pcs |
| Controller | Pointer type |
| Weight | Approx. 20kg |
| Power | 1 phase, AV 220V, 50/60HZ |
| Size (W*D*H) | 45x20x45cm |
FAQ
How to install and use the product?
The product is shipped with an operating instructions and video of English version.or we will send you an operation video to teach you how to install and use the product with English speaking. However, if you need us to teach you face to face, please let us know in advance.
How about the packing for machine, is it safely protected during transportation?
Our machine is packed by standard export wooden box, it won’t be damaged. We’ve delivered many testing machines abroad by sea or by air without damage.
What is the order process?
Inquiry - quotation - communication - order confirming - deposit payment - production - testing and debugging - balance payment - packing - delivery - customer receiving - after service.
