ISO 20344 8.3 Footwear Abrasion Tester For Leather Shoe Soles 2.5N 5N

Basic Information
Place of Origin: Guangdong, China (Mainland)
Brand Name: HAIDA
Certification: CE,ISO
Model Number: HD-P307
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: ach set protected with resin fiber and PP film, then put into Strong wooden case with operation man
Delivery Time: 20 days after order confirmed
Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash, escrow
Supply Ability: 30 Sets per Month Haida
Detail Information
Power: Electronic Net Weight: 55KG
Abrasion Speed: 0.32m/sec Fixture Load: 2.5N
Weight Load: 2.5N,5N Use: Leather And Others
High Light:

ISO 20344 8.3 Footwear Abrasion Tester


5N Footwear Abrasion Tester


0.32m/sec Footwear Abrasion Tester

Product Description

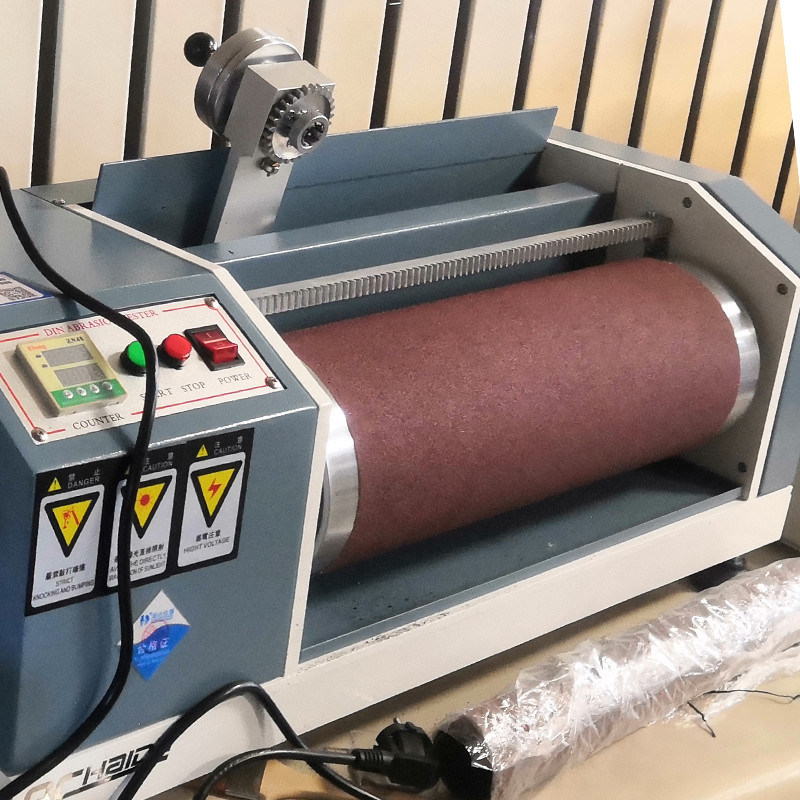

ISO 20344 8.3 Footwear Abrasion Tester For Leather And Shoe Soles 2.5N 5N






DIN-53516, ISO-4649, GB/T9867, ASTM D5963, ISO 20344 8.3






Technical Index HD-P307
Specimens size 16mm, 6-15mm (D)
Fixture load 2.5N
Weight load 2.5N,5N
Fixture lateral displacement 4.2mm/wheel each lap
Wheel diameter 150mm
Wheel length 460mm
Wheel rotate speed 40rpm
Travel reservations 40m/20m
Abrasion speed 0.32m/sec
Dip angle 3°the angle of the specimen
back shaft with vertical roller face
Machine Size (L×W×H)70*30*30cm
Net Weight 55KG






















Footwear Abrasion Tester is to measure the abrasion resistance of rubbers (vulcanized thermoset rubbers and thermoplastic elastomers) that are subject to abrasive/frictional wear in their actual service, such as tires, conveyor drive belts, leather and shoe soles






footwear abrasion tester    footwear abrasion tester






How to install and use the product?

The product is shipped with an operating instructions and video of English version.or we will send you an operation video to teach you how to install and use the product with English speaking. However, if you need us to teach you face to face, please let us know in advance.


How about the packing for machine, is it safely protected during transportation?
Our machine is packed by standard export wooden box, it won’t be damaged. We’ve delivered many testing machines abroad by sea or by air without damage.


What is the order process?
Inquiry - quotation - communication - order confirming - deposit payment - production - testing and debugging - balance payment - packing - delivery - customer receiving - after service.
