ISTA Package Incline Impact Test Machine 500kg for Carton / Box

Brand Name:	Haida
Model Number:	HD-A523
MOQ:	1
Price:	$4,000-7,300

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong, China

Customized Support:

OEM, ODM

Power:

Electronic

Warranty:

1 Year

Standards:

ISTA Test Series

Load Capacity:

≤500 Kg (can Be Customized)

Pulley Surface Area (L*W):

Solid Wood Board: 1500*1500 Mm (can Be Customized)

Impact Board Size (L*W):

Solid Steel Board: 1600*2000mm (can Be Customized)

Specimen Size (L*W*H):

Max. 1500*1500*1500 Mm

Dimension (L*W*H):

6990*1600*1980 Mm

Max. Sliding Distance:

2000 Mm Approx. (can Be Customized)

Impact Velocity Range:

1.1-2.3 M/s

Velocity Deviation:

≤ 5%

Weight:

2700 Kg ( Based On Specifications)

Highlight:

ISTA Package Incline Impact Test Machine

Incline Impact Test Machine for Carton

Product Description

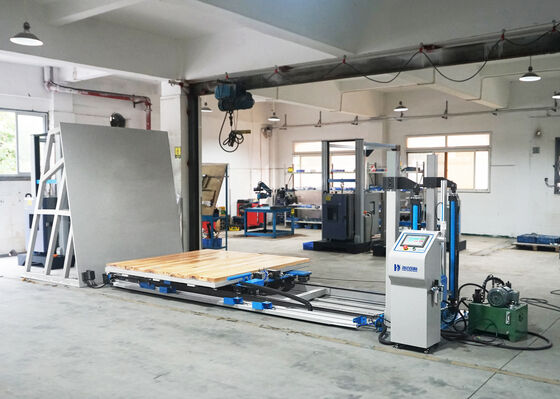

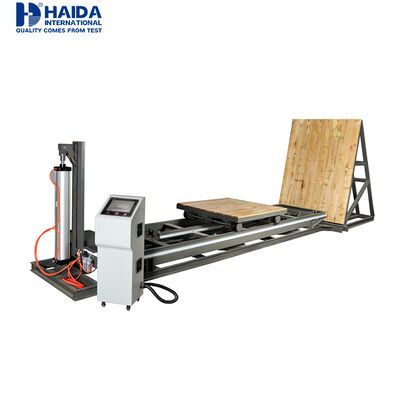

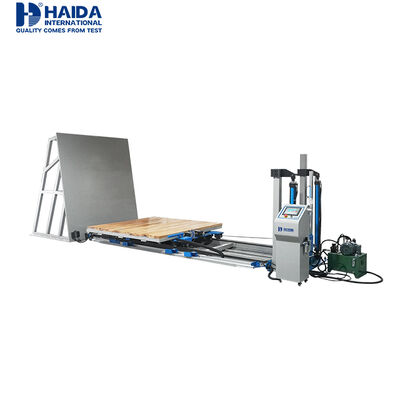

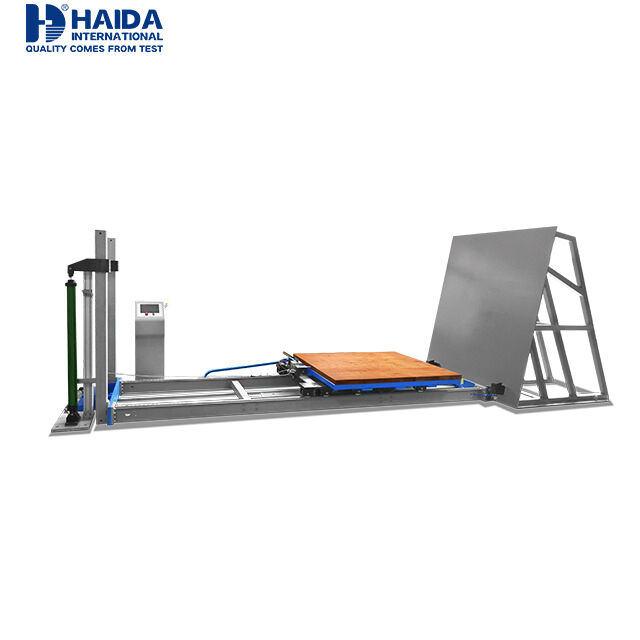

ISTA Package Incline Impact Test Machine

Product Description

Incline impact test machine simulates the ability of product packaging to resist impact damage in the actual environment, such as handling, stacking of shelves, sliding of motors, loading and unloading of locomotives, transportation of products, etc. This machine can also be used as scientific research institutions, colleges and universities. Commonly used test equipment for oblique impact in colleges, packaging technology testing centers, packaging material manufacturers, foreign trade, transportation and other departments.

Specifications:

Item	Description
Load capacity	500kg (can be customized)
Impact surface dimension	1600200020mm (can be customized)
Rolling carriage table dimension	1500*1500mm (can be customized)
Max size of sample	150015001500mm(LWH)
Control system	Touch screen controller
Max. slide length	2000mm (can be customized)
Impact velocity error	≤±5%
Velocity range	1.1~2.3m/s

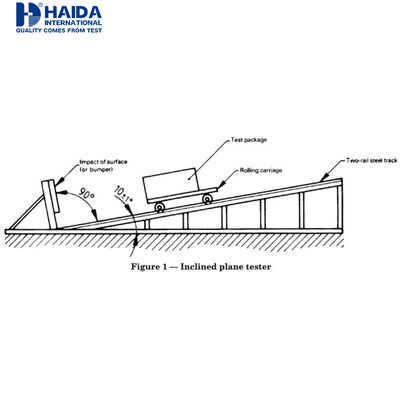

Plane inclined to the vertical angle	10°
Impact surface material	Steel
Working condition	Temperature 0~40°, humidity ≤80% (no condensation)
Safety features	E-Stop Over-load protection Upper and lower limit switches Load sensor with automatic retreat
Dimensions	699016001980mm(LWH)
Weight	2700kg
Air sourse	≥ 0.6MPa (User-supplied)
Oil tank	40L (User-supplied)
Power	380V

Standards: ISTA 3E, 3J & ISTA 6 (inclined impact test), EN ISO 2244-2002

Hardware Features

The whole is composed of thickened square pass, thickened I-beam and solid steel to avoid impact displacement during testing and ensure the stability of the machine;
The appearance of the machine adopts the paint spraying process, with high anti-rust ability and beautiful appearance;
The track and impact pulley have a strong load, up to 500kg;
Double oil cylinder lifting device, the structure is more solid and stable;
The impact pulley is equipped with pulleys, and the sliding friction is small to ensure the accuracy of the data;
After the test platform hits the impact plate, the impact plate has anti-secondary impact impact to ensure the accuracy of the data.

Software Features

Adopt touch screen PLC program control, easy to operate;
The switch sensor is used to sense the impact pulley, and the program automatically calculates the impact speed to ensure the speed is accurate;
Abnormal fault alarm prompts to ensure the safe operation of the equipment.
