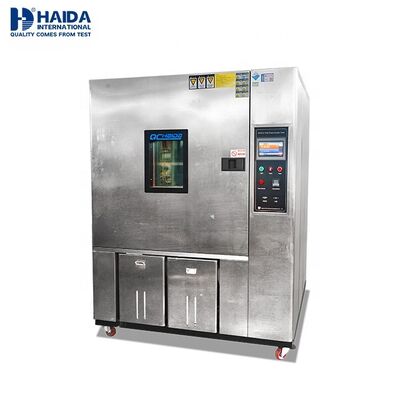

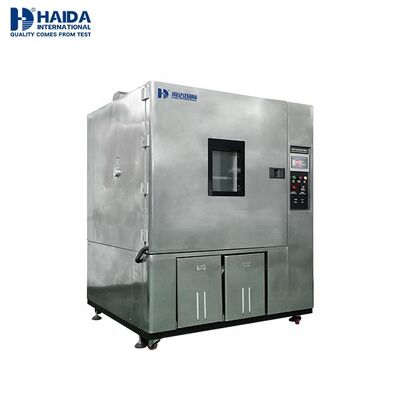

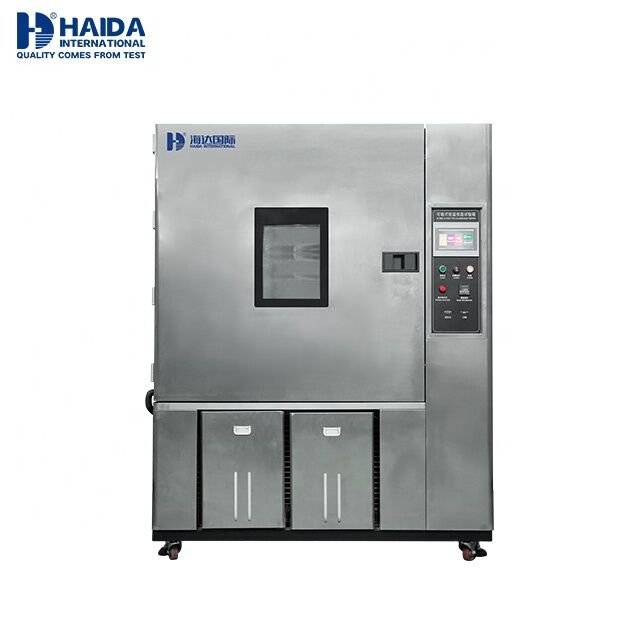

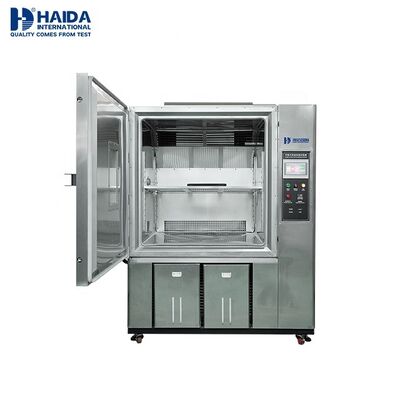

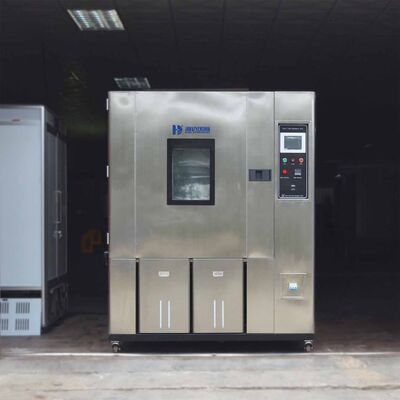

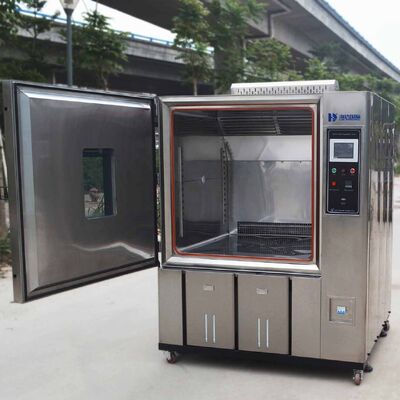

ISTA Environmental Test Programmable Control Constant Temperature and Humidity Climate Test Chamber 1000L

Brand Name:	Haida
Model Number:	HD-E702-1000
MOQ:	1
Price:	$3,800-4,800

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong, China

Customized Support:

OEM, ODM

Power:

Electronic

Warranty:

1 Year

Accuracy:

±0.5°C

Resolution:

±0.01°C

Controller:

TEMI 880 Touch Screen

Refrigerant:

CFC-FREE

Compressor:

Tecumseh Of France

RS 232:

Connect PC

Humidifier:

Stainless Steel Humidifying Tube

Input:

PT100 Or T Thermocouple

Water Tank:

Built-in Hand Type(30Kg Capacity)

Cooling Rate:

Average 1°C/min

Highlight:

1000L Constant Temperature Climate Test Chamber

ISTA Climate Test Chamber

Programmable Control Climate Test Chamber

Product Description

Haida HD-E702 series has the wide range selection of Temperature (Humidity) test chambers, standard model is from 100L to 1000L, and options can be customized to meet your specific test conditions. It's also suitable for ISTA package environmental test.

Specifications

Model	*Internal Dimension (WHD)*	*External Dimension (WHD)*	Temperature（℃）
HD-E702-100	400500500mm	95014001100m	-20/-40/-70
HD-E702-150	500500600mm	110015001100mm	-20/-40/-70
HD-E702-225	500750600mm	110016701200mm	-20/-40/-70
HD-E702-408	600850800mm	120017701400mm	-20/-40/-70
HD-E702-1000	10001000800mm	155021001400mm	-20/-40/-70

Performance	Temp.& Humi. Adjust Way	Balanced temperature and humidity control (BTHC) PID intelligent adjustment
		Temperature range	-20℃,-40℃,-70℃~150℃
		Temperature accuracy	0.01℃
		Temperature tolerance	≤±1.0℃或±2.0℃
		Temperature fluctuations	≤±0.5℃ （without load and temperature stable）
		Temperature uniformity	≤1.5℃ （without loading）, 50mm≤SENSOR
		Humidity range	20%-98%RH
		Humidity accuracy	0.1%RH
		Humidity tolerance	1 、≥75%RH：≤±3%RH ；2 、≤75%RH ：≤±6%RH
		Humidity fluctuations	≤±2.5%RH
		Heating rate	3℃/min in average
		Cooling rate	1℃/min in average
		Internal Chamber Material	Stainless Steel 304
		External Chamber Material	Stainless Steel steel of paint spray
Controller	Operation Panel	Programmable LCD Touch Screen
		Running Mode	Fix Running, Pattern Running
		Program Memory Capacity	120 Group Programmable, Max 100 Section Each
		Output	Rs-232 (USB,Optional)
Water sup	Water Supply	Circulating Water
Water sup		Water Tank Capacity	Chamber Internal Capacity < 800L: 25L X 1pc Chamber Internal Capacity > 800L: 25LX 2pc

ISTA Test Conditions

Anticipated Conditions	Time in Hours	Temperature in ℃ ±2℃ (°F±4°F)	Humidity in %
Extreme Cold Uncontrolled RH	72	-29℃ (-20°F)	uncontrolled RH
Cold, Humid	72	5℃(40°F)	85% RH ±5%
Controlled Conditions	72	23℃(73°F)	50% RH ±5%
Hot, Humid	72	38℃ (100°F)	85% RH±5%
Hot, Humid then Extreme Heat Moderate RH	72 then 6	38℃(100°F) then 60℃(140°F)	85% RH ±5% then 30% RH ±5%
Elevated Temperature Uncontrolled RH	72	50℃(120°F)	uncontrolled RH
Extreme Heat, Dry	72	60℃(140°F)	15% RH +/-5%
Severe Cold Uncontrolled RH	72	-18℃ (0°F)	uncontrolled RH
User Defined High Limit	72	Based upon known conditions	Known conditions
conditions User Defined Low Limit	72	Based upon known conditions	Known conditions
User Defined Cycle	72	Based upon known conditions	Known conditions
