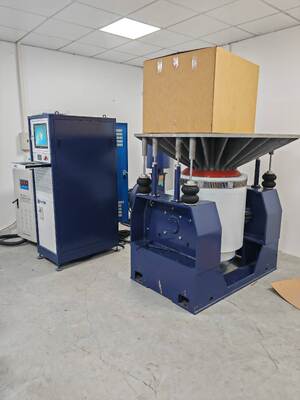

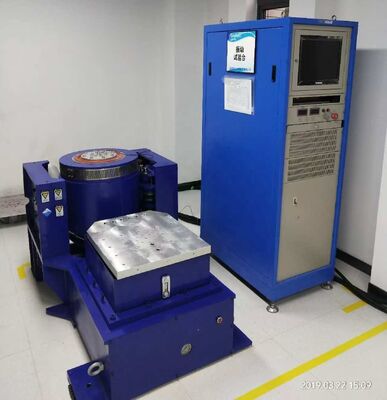

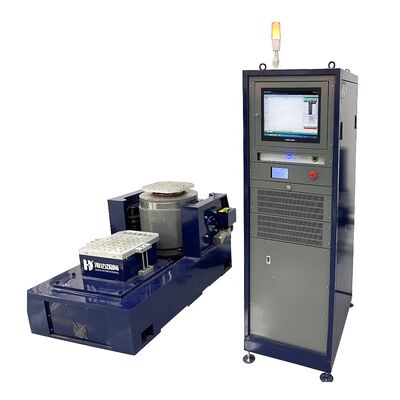

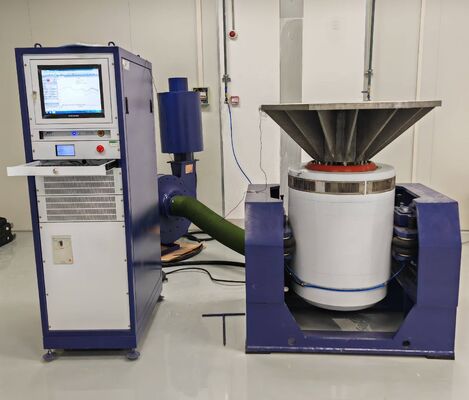

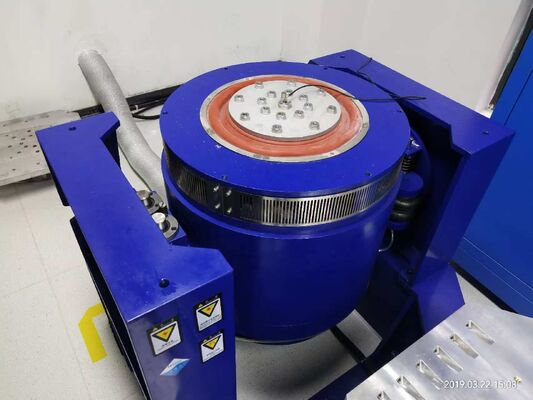

ISTA 6-Amazon Electrodynamic Random Vibration Shaker Test System for Packaging Small Force 6KN Air-cooled

Brand Name:	HAIDA
MOQ:	1

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong, China

Protection Class:

Ip56

Vibration Direction:

Horizontal & Vertical

Type:

Air-Cooled, Testing Machine

Rated Sine Force:

6KN

Rated Random Force:

6KN

Rated Shock Force:

12KN

Dimensions (L*W*H):

2200*1300*760mm

Frequency Range:

2-3000HZ

Max Displacement:

51mm

Max. Acceleration:

100G (980 M/s2)

Max. Velocity:

1.8m/s-2m/s Or Customized

Customized Support:

OEM, ODM

Voltage:

Other

Warranty:

1 Year

Power:

Application:

Electrodynamic Vibration Testing

Highlight:

Packaging Vibration Shaker Test System

ISTA 6 Packaging Vibration Shaker

Packaging Vibration Shaker System

Product Description

Vibration Shaker System

* Vibration test is a process of exciting or shocking some part or device to observe its reaction in real environment. HAIDA vibration shaker systems excitation force ranges from 6kN to 50kN and the maximum load ranges from 200kg to 800kg.

* Test Modes: Multiple test modes can be adjusted: sine,random,resonant search and dwell , typical impact and road simulation modes.

* Application: aviation, aerospace, weapons, ships, communications, automotive, electronics, electrical, home appliances and other fields.

HAIDA can offer you the whole vibration and testing proposal, and provide you with the quality certificates of products according to national and international standards, including GB, GJB, UL, JIS, DIN, ISO, BS, MIL, IEC and ASTM standards.

Specification

Vibration Shaker System(6KN-20KN)
Model	HD-Snake-A6VH	HD-Snake-A10VH	HD-Snake-A20VH
Rated sine force	6KN	10KN	20KN
Rated random force	6KN	10KN	20KN
Rated Shock force	12KN	20KN	40KN
Dimensions (LWH)	220013007600	22001300760mm	260014001060mm
Max displacement	51mm	51mm	51mm/76mm
Armature Diameter	Φ240mm	Φ240mm	Φ320mm
Effective Armature Mass	10kg	10kg	20kg
Max. Load Capacity	200kg	300kg	300kg
Frequency Range	2-3000HZ
Max. Acceleration	100G (980 m/s2)
Max. Velocity	1.8m/s-2m/s or customized
Vibration Direction	Horizontal & Vertical
Table Screw	17*M10
Magnetic Leakage	＜10 gauss
Axial Vibration Isolation Frequency	2.5HZ
Power Supply	AC 3-phase 380V, 50/60Hz
Vibration Shaker System(30KN-50KN)
Model	HD-Snake-A30VH	HD-Snake-A40VH	HD-Snake-A50VH
Rated sine force	30KN	40KN	50KN
Rated random force	30KN	40KN	50KN
Rated Shock force	60KN	80KN	50KN
Dimensions (LWH)	290015001260mm	290015001360mm	310016001560
Max displacement	51mm/76mm	76mm/100mm	76mm/100mm
Armature Diameter	Φ340mm	Φ370mm	Φ445mm
Effective Armature Mass	30kg	40kg	50kg
Max. Load Capacity	500kg	500kg	800kg
Frequency Range	2-2800HZ
Max. Acceleration	100G (980 m/s2)
Max. Velocity	1.8m/s-2m/s or customized
Vibration Direction	Horizontal & Vertical
Table Screw	17*M10
Magnetic Leakage	＜10 gauss
Axial Vibration Isolation Frequency	2.5HZ
Power Supply	AC 3-phase 380V, 50/60Hz

Power Amplifier(6KN-20KN)				Power Amplifier(6KN-20KN)
Model	HD-Snake-A6VH	HD-Snake-A10VH	HD-Snake-A20VH
Maximum Output	10 kVA	10 kVA	20 kVA
Approx. Dimension	720×550×1700mm (LWH)	9505501700mm(LWH)	9505501700mm (LWH)
Approx. Weight	480kg	520kg	560kg
Conversion Efficiency	≥90%
On-off Frequency	116KHz
Noise	≤70dB
Power Amplifier(30KN-50KN)				Power Amplifier(30KN-50KN)
Model	HD-Snake-A30VH	HD-Snake-A40VH	HD-Snake-A50VH
Maximum Output	30 kVA	40 kVA	50 kVA
Approx. Dimension	9001200700mm (LWH)	90012001700mm (LWH)	90012001700mm (LWH)
Approx. Weight	600kg	600kg	600kg
Conversion Efficiency	≥90%
On-off Frequency	116KHz
Noise	≤70dB

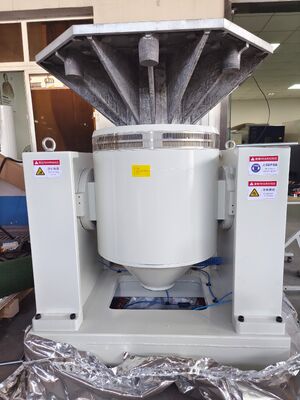

Vertical Head Expander Platform(6KN-20KN)
Model	HD-Snake-A6VH	HD-Snake-A10VH	HD-Snake-A20VH
Expander Size	400*400mm	500*500mm	600*600mm
Approx. Weight	25kg	32kg	39kg
Material	Aluminum Alloy
Max. Work Frequency	Random up to 2000Hz
Fixed Connect Hole	M10 stainless steel screw sleeve
Vertical Head Expander Platform(30KN-50KN)
Model	HD-Snake-A30VH	HD-Snake-A40VH	HD-Snake-A50VH
Expander Size	800*800mm	1000*1000mm	1200*1200mm
Approx. Weight	90kg	120kg	200kg
Material	Aluminum Alloy
Max. Work Frequency	Random up to 2000Hz
Fixed Connect Hole	M10 stainless steel screw sleeve

Horizontal Slide Expander Platform(6KN-20KN)
Model	HD-Snake-A6VH	HD-Snake-A10VH	HD-Snake-A20VH
Expander Size	400*400mm	500*500mm	600*600mm
Approx. Weight	25kg	32kg	39kg
Material	Aluminum Alloy
Max. Work Frequency	Random up to 2000Hz
Fixed Connect Hole	M10 stainless steel screw sleeve; The hole spacing is distributed in a 100*100mm rectangle
Horizontal Slide Expander Platform(30KN-50KN)
Model	HD-Snake-A30VH	HD-Snake-A40VH	HD-Snake-A50VH
Expander Size	800*800mm	1000*1000mm	1200*1200mm
Approx. Weight	90kg	120kg	200kg
Material	Aluminum Alloy
Max. Work Frequency	Random up to 2000Hz
Fixed Connect Hole	M10 stainless steel screw sleeve; The hole spacing is distributed in a 100*100mm rectangle

Product Details

Force Formula and Vibration Generator Structure

Working Principle

Test Curve

Customer Customized Cases

Company Profile

Our Partners

Our Advantages

Our Service

* If you face any problems in future during testing process we promise we will give you a reply within 48 hours and solution provide within 3 working days.
* We can offer operation video and English operation muanual.
* We can provide video-con.

Onsite Service:
* Device installation;
* Equipment Operation Test Technology training;
* Equipment Calibration;
* Daily maintenance and maintenance of equipment
* Free technical training for visiting factories
* 24-hour Online contact
* Free software upgrades
* Free information:
* Product Instruction;
* Product operation instruction/video;
* Experiment Test (test application, test report)

Device Problem Handling:
* Social media 24 hours online communication;
* Mail Seamless Docking;
* Video Conferencing;
* Artificial free door-to-door service
