ISTA PC Control Package Clamping Force Tester / Clamp Force Testing Machine Corrugated Box Clamping Strength Testing Equipment

Brand Name:	Haida
MOQ:	1
Price:	$5,500-7,500

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong, China

Type:

Testing Machine

Accuracy Class:

High Accuracy

Accuracy:

≤±0.5%

Application:

Paper Testing, Strength Testing, Clamp Force Testing, Corrugated Box Testing

Customized Support:

OEM, ODM

Power:

Pana.sonic. 750W Servo Motor

Protection Class:

E-Stop

Voltage:

380 V

Warranty:

1 Year

Capacity:

18kN

Maximum Specimen Weight:

500kg (can Be Customized)

Maximum Specimen Size:

2000mm * 1220mm *1220mm (L*W*H) (can Be Customized)

Motor:

Pana.sonic 750W Servo Motor

Control System:

TComputer Control

Load Cell Resolution:

1/250,000

Clamping Plate Size:

1220mm * 1220mm (L*W)

Lifting Height:

50~1000mm (can Be Customized)

Weight:

3000kg ( Based On Specifications )

Dimension:

3250mm * 2000mm * 2350mm (L*W*H)

Highlight:

Corrugated Box Clamping Strength Testing Equipment

ISTA PC Control Package Clamping Tester

Clamp Force Testing Machine

Product Description

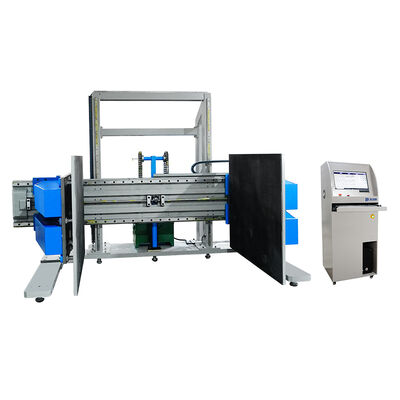

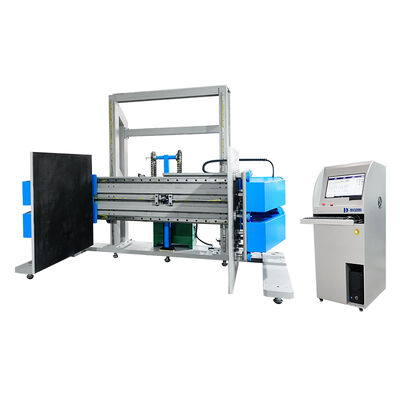

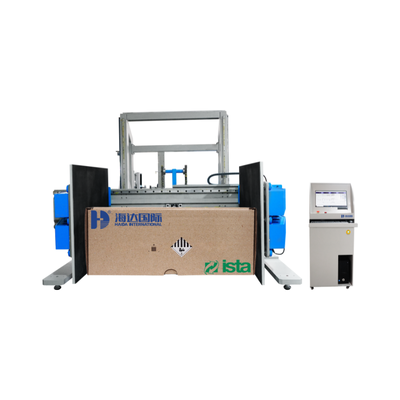

ISTA PC control Package Clamping Force Test Machine

Product Description

Clamping Force Testing Machine for packaging simulates the transportation with Schnabel car discharge the package, in the transit, the package of box affected by clamping force of both boards. And this clamping force tester is to evaluate the resistance property of the package toward this clamping force.

Specifications

Item	Description
Capacity	18kN
Maximum Specimen Weight	500kg (can be customized)
Maximum Specimen Size	2000mm 1220mm 1220mm (LWH) (can be customized)
Control System	Computer control
Motor	Pana.sonic 750W servo motor
Load Cell Resolution	1/250,000
Measurement Accuracy	≤±0.5%
Load Precision	within ±0.25%
Clamping Plate Size	1220mm * 1220mm (L*W)
Clamping Space	Minimum about 50mm1220mm1220mm (LWH) Maximum about 2000mm1220mm1220mm (LWH)
Clamping Speed	5~500mm/min (adjustable)
Lifting Height	50~1000mm
Lifting Speed	Rise: 5~600mm/min (adjustable) Drop: 5~300mm/min (adjustable)
Lifting Method	Cylinder drive
Hydraulic Unit Combination	2.2kW (3HP); 40L fuel tank
Weight	3000kg ( Based on specifications )
Dimension	3250mm * 2000mm * 2350mm (LWH)

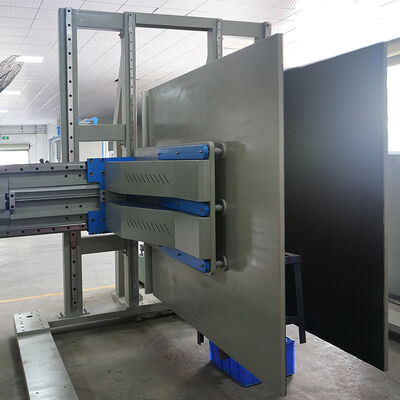

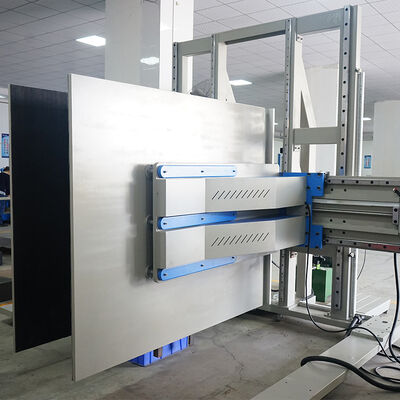

Clamping plate requirement	Make the two clamping boards flat and non-deform under work condition (2000 Pounds) and make clamping boards’ parallel and clamping board and land vertical. Clamping board is thicker than 25mm.
Safety features	E-Stop Over-load protection Upper and lower limit switches Load sensor with automatic retreat
