ISTA Test Digital Double-Wing Carton Drop Testing Machine / Free Drop Test Machine / Package Carton Box Drop Impact Tester

Brand Name:	Haida
MOQ:	1
Price:	$4,000-4,800

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong, China

Type:

Impact Testing Machine

Accuracy:

Less Than 1o

Customized Support:

OEM, ODM

Power:

Protection Class:

IP55

Voltage:

220 V

Warranty:

1 Year

Drop Height:

400-1500mm (can Be Customized)

Display Method:

Digital Display

Max. Weight Of Sample:

60kg (can Be Customized)

Balls Control Method:

DC Electromagnetic Control

Max. Sample Weight:

100KG

Max. Size Of Sample:

800*800*800mm (L*W*H)

Drop Panel Area:

1400*1200mm (material Is Solid Steel Plate)

Control Box Dimension:

350*350*1100mm (L*W*H)

Deviation Of Drop Horizon:

Less Than 1°

Machine Size:

1400*1200*2200mm (L*W*H)

Highlight:

ISTA Test Carton Drop Testing Machine

Double-Wing Carton Drop Testing Machine

Product Description

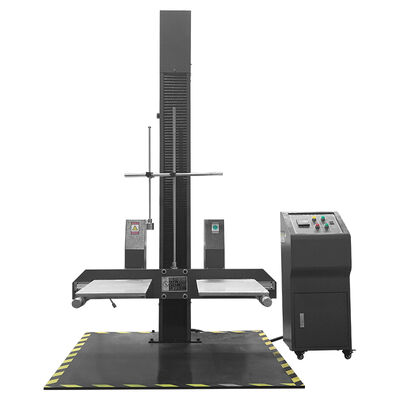

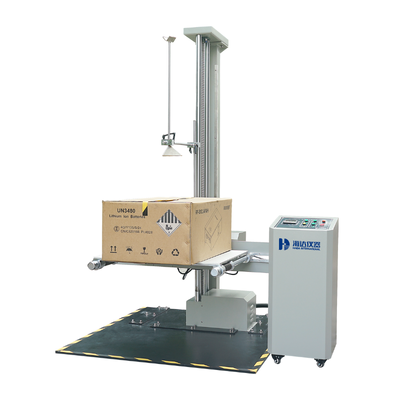

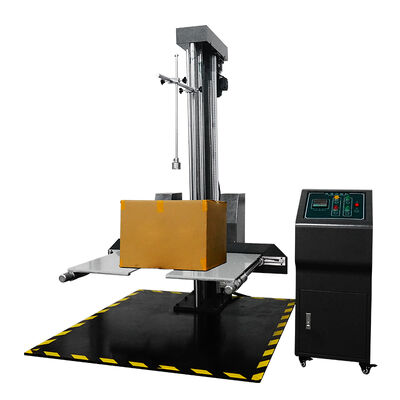

HD-A520-1 Double-Wing Drop Test Machine simulates the drop/ fall during the products handling or transport process of a finished product to evaluate the damage. Standard test of packaged freights (surfaces, corners, and edges), etc. Can be performed efficiently with a high accuracy.

Product Specifications

Item	Description
Drop height	400-1500mm (can be customized)
Display method	Digital display
Max. size of sample	800800800mm(LWH)
Max. weight of sample	60kg (can be customized)
Drop panel area	1400*1200mm (material is Solid steel plate)
Control box dimension	3503501100mm(LWH)
Deviation of drop horizon	Less than 1°
Machine size	140012002200mm(LWH)

Features

1. Outside material: advanced paint coat.
2. It adopts double wings to fix the products well when testing.
3. Power system: drive device (imported motor + speed reducer +Axel+ upper and lower limitation + spring+electromagnet) +dropping device(dropping standard board +magnet + safety spacing push rod + automatic return back + digital alto-meter +encoder +hydraulic pressure buffering device)
4. Control system: adopting electromagnet sensor control, the interface is easy to operate, high degree automatic control.
5. Safety device: upper and lower limitation device, automatic off-power device if electricity leakage occurs.

Product Details
