High-Force Vibration Test Shaker Random Air-cooled Vibration Test System Random Vibration Test Machine

Brand Name:	HAIDA
MOQ:	1
Price:	$36,000-45,000

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong, China

Protection Class:

IP55

Rated Load:

300kg (Can Be Customized)

Max. Displacement:

25.4 Mmp-p, 51 Mmp-p, 76 Mmp-p, 100 Mmp-p

Max. Sine Force:

3kN,6kN, 10kN ,20kN ,30kN, 50kN

Max. Random Force:

3kN,6kN, 10kN ,20kN ,30kN, 50kN

Max Shock Force:

6kN,12kN,20kN,40kN,60kN,100kN

Frequency Range:

1-4000 Hz

Max. Speed:

2m/s

Max. Acceleration:

100 G ( 980 M/s²)

1st Order Resonant Frequency:

2,400 Hz

Displacement (continuous):

100 Mm

Warranty:

1 Year

Customized Support:

OEM, ODM

Voltage:

380 V

Power:

AC 3-phase 380V, 50/60Hz

Type:

Vibration Shaker Table Systems

Highlight:

High Force Vibration Test Shaker

Air-cooled Vibration Test Machine

Random Vibration Test Shaker

Product Description

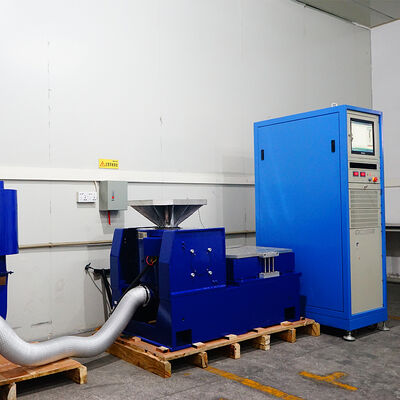

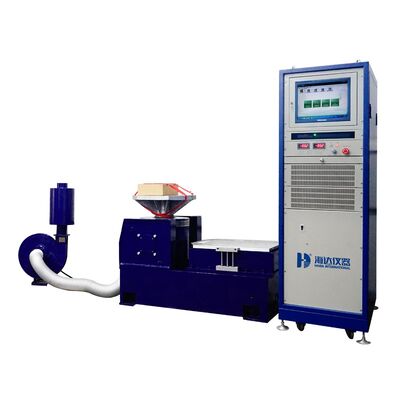

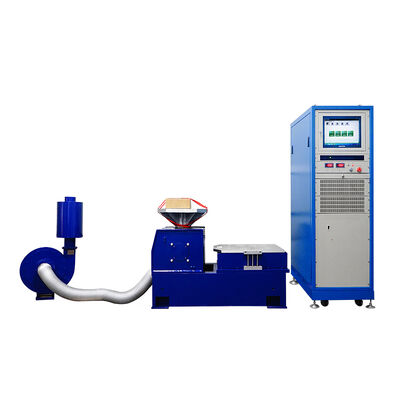

HD-G826 Electrodynamic Vibration Shaker

Product Description

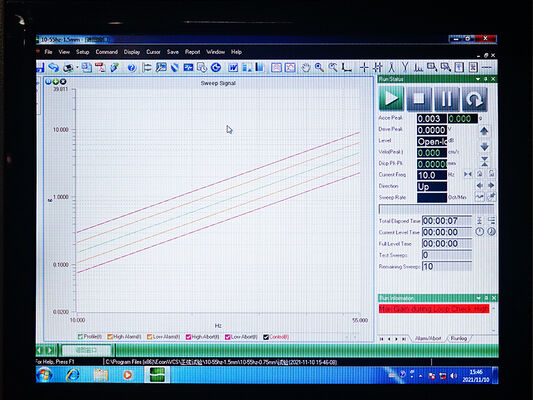

HD-G826 High Frequency Electro-dynamic vibration Shaker provides a testing platform for packing and transportation simulation, mechanical shock, mission profile and any other real-world condition simulation. Utilizing the most advanced controller, the closed-loop system can accurately reproduce real-world vibration conditions on products from the industries like electronic, automotive, aerospace, aviation, etc.

Specifications

Item	Description
Max. Sine Force	2200 Kg.f peak
Max. Random Force	2200 Kg.fr.ms
Max. Shock Force	4400 Kg.f peak
Frequency Range	2~3000Hz
Max. Displacement	(Peak to Peak) 100mm
Max. Velocity	2m/s
Max. Acceleration	100G (980m/s2)
Vibration direction	Vertical

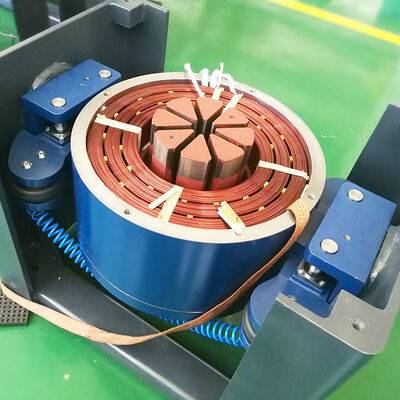

Armature Diameter	340mm
Effective Armature Mass	21kg
Table screw	17*M10
Max. Load Capacity	350kg
Magnetic Leakage	<10gauss
Axial Vibration Isolation Frequency	2.5Hz
Dimension	845mm790mm840mm (Head Expander is excluded)
Weight	3500kg (SlipTable is excluded)
Powe rsupply	AC 3-phase 380V/50Hz
