| Place of Origin: | Guangdong, China (Mainland) |
|---|---|
| Brand Name: | HAIDA |
| Certification: | CE,ISO |
| Model Number: | HD-W816 |
| Minimum Order Quantity: | 1 Set |
| Price: | Negotiable |
| Packaging Details: | ach set protected with resin fiber and PP film, then put into Strong wooden case with operation man |
| Delivery Time: | 20 days after order confirmed |
| Payment Terms: | L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash, escrow |
| Supply Ability: | 30 Sets per Month Haida |
| Power: | Electronic | Weight: | 5kg |
|---|---|---|---|
| Dimensions: | 200 X 250 X 480 Mm | Height Of The Funnel With Nozzle: | 200 Mm (±10 Mm) |
| Holder Dia.: | 150 Mm (±5 Mm) | Rate Of Water Spray: | 250 Ml In 25 To 30 Seconds. |
| Size Of Test Specimen: | 180 X 180 Mm Square. | Plastic Funnel Dia.: | 150 Mm (±5 Mm) |
| High Light: | 45 ° Water Vapour Permeability Tester,150mm Water Vapour Permeability Tester,ISO Water Vapour Permeability Tester |
||
45 ° Water Vapour Permeability Tester Specimens Spray Rate Tester 5kg
Product Introduction

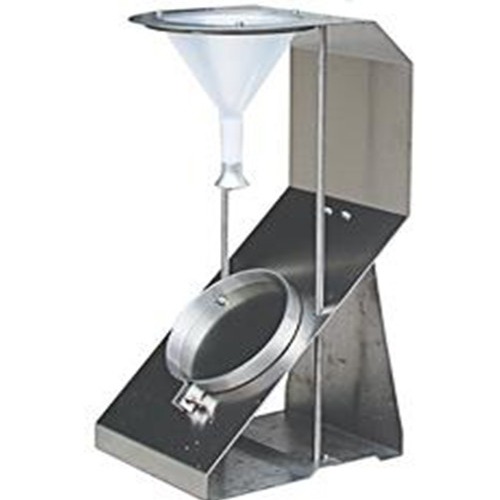

Water Spray Tester consists of a metal frame that allows distilled water to be sprayed onto the specimen at 45 ° and 150 mm below the nozzle.
Determination of surface moisture resistance of fabrics. It includes a metal frame that allows distilled water to be injected through the nozzle onto test specimens at 45 ° and 150 mm below the nozzle. The appearance of the sample is compared with the optional photographic scale.
AATCC 22-Water repellency: spray test
Technical Parameters
| Technical Index | HD-W816 |
| Spray nozzle | 19 holes.(Center-1, First circle-6, Second circle-12) |
| Size of test specimen | 180 x 180 mm square. |
| Rate of water spray | 250 ml in 25 to 30 seconds. |
| Position of test specimen | Mounted on a ring and placed at an angle of 45° |
| Distance between center of spray | 150 mm (±2 mm) |
| Holder Dia. | 150 mm (±5 mm) |
| Plastic funnel dia. | 150 mm (±5 mm) |
| Height of the funnel with nozzle | 200 mm (±10 mm) |
| Dimensions | 200 x 250 x 480 mm |
| Weight | 5kg |
