| Place of Origin: | Guangdong, China (Mainland) |
|---|---|
| Brand Name: | HAIDA |
| Certification: | CE,ISO |
| Model Number: | HD-E703 |
| Minimum Order Quantity: | 1 Set |
| Price: | Negotiable |
| Packaging Details: | ach set protected with resin fiber and PP film, then put into Strong wooden case with operation man |
| Delivery Time: | 20 days after order confirmed |
| Payment Terms: | L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash, escrow |
| Supply Ability: | 30 Sets per Month Haida |
| Internal Dimension: | (W*D*H) 1000*800*1000mm | External Dimension: | (W*D*H) 1500*1180*1900mm |
|---|---|---|---|
| Test Condition: | 20±20C; 65% RH | Temperature Range: | -40~+150℃ |
| Temperature Accuracy: | ±1℃ | Humidity Range: | 20~98%R.H. (Refer Image Below) |
| Humidity Accuracy: | ±3%R.H | Cooling Method: | Air Cooling |
| High Light: | 380V thermal test chamber,ISO thermal test chamber,ISO thermal vacuum chamber |
||

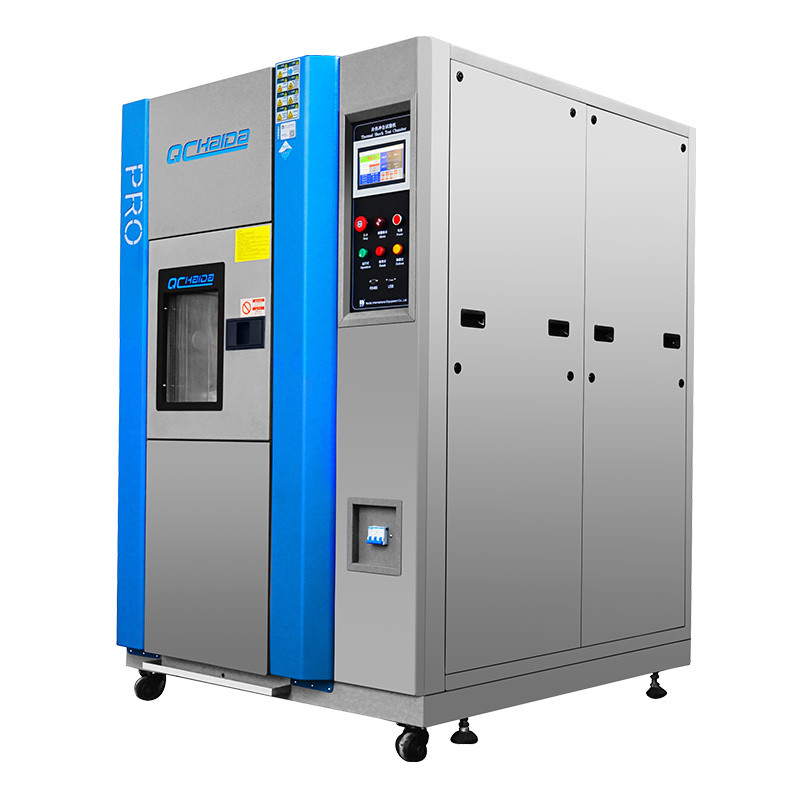

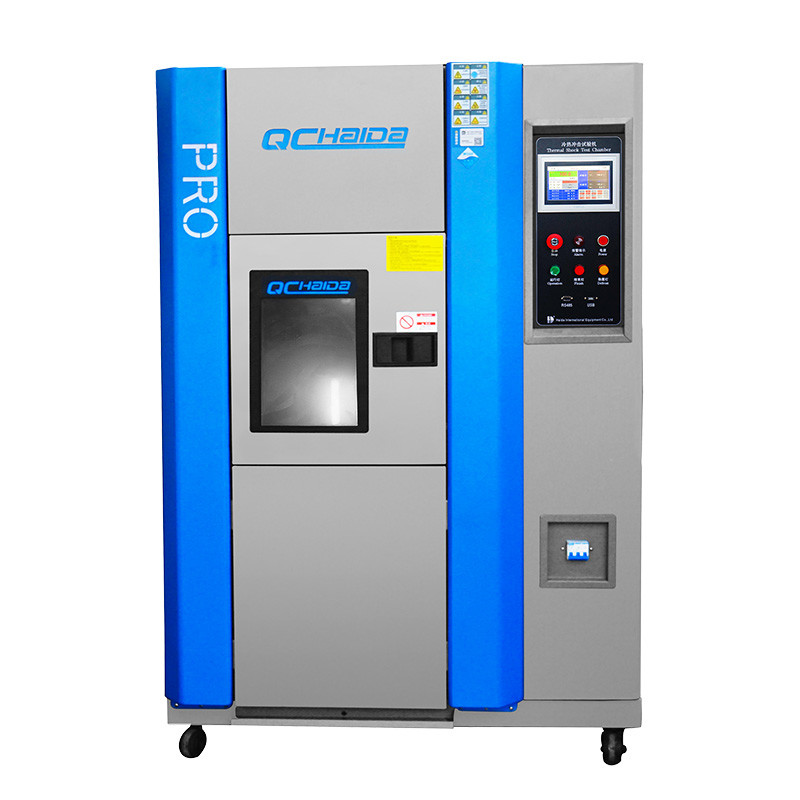

Programmable Hot And Cold Shock Test Chamber, Environmental Test Chamber
Product Introduction:
Hot And Cold Shock Test Chamber is used to test the bearing extent of the material structures and composite material in an instant and continuous high temperature and extremely low temperature environment, it is widely used in metal, plastic, rubber, electronics and other materials and it can be used as an important reference for improving product quality. It meets the standard of MTL, IEC, JIS, GJB and so on .
Features
To simulate test environment with different temperature and humidity
Cyclic test includes climatic conditions: holding test, cooling-off test, heating-up test, moistening test and drying test…
Cable port with flexible silicone plug for cable routing to provide the condition of test unit under operation
Uncover test unit weakness in a short-term test with accelerated time effect
Test Standard:
1,GJB150.5A-2009
2,GB/2423.22-2012/IEC 60068-2-14:2009
3,GB/T 2424.13-2002/IEC 60068-2-33:1971
4,GJB360B-2009
5,GB/T 2423.1-2008/IEC6008-2-1-2007
6,GB/T 2423.2-2008/IEC60068-2-2:2007
7,GB/T 10589-2008
8,GB/T 11158-2008
Technical Parameters
| Model | HD-E703-200K40 | HD-E703-200K55 | HD-E703-200K65 | ||
| Nominal content product(L) | 200 | ||||
| Inside the box size(mm) | 650×450×670(W×H×D) | ||||
| Overall dimensions(mm) | 1530×1800×1980(W×H×D) | ||||
| Technical parameters | Temperature range | High temperature | RT～170 ℃ | ||
| Low temperature | －75℃ ～RT | ||||
| Test area | －40℃ ～150℃ | －50℃ ～150℃ | －65℃ ～150℃ | ||
| Temperature shock range | High temperature | 60℃ ～150℃ | |||
| Low temperature | －10℃ ～－40℃ | －10℃ ～－50℃ | －10℃ ～－65℃ | ||
| Normal temperature zone | Indoor temperature | ||||
| Temperature and humidity deviation | ±0.3℃,±2%R·H | ||||
| Difference in temperature and humidity | ±2℃,±3%R·H | ||||
| Heating rate | 2℃/min | ||||
| Cooling rate | 0.5~1.2℃/min | ||||
| Cold storage time | RT→－75℃≤ 65min | ||||
| Thermal storage time | RT→170℃≤ 35min | ||||
| Refrigeration system | Compressor | Imported German blog, R23 / R404A refrigerant | |||
| Cooling way | Water or air cooling | ||||
| Condenser | Stainless steel brazed plate type heat exchanger | ||||
| Heater/evaporator | Nickel-chromium electric heater/finned evaporator | ||||
| Microcomputer & display screen | TT-5188T3-7HLTaitong controller | ||||
| Drive motors | Drive | ||||
| Temperature and humidity sensor | Japan | ||||
| Safety measures | No fuse switch, compressor overpressure, overheat, overcurrent protection, fuse, water flow protection, phase sequence protection, oil pressure protection, pressure relief protection, low pressure protection, pressure cylinder protection, temperature limit protection | ||||
| Material | Chassis shell | High quality cold rolled steel sheet is sprayed with static electricity | |||
| Inner wall of the chassis | SUS304# Stainless steel plate | ||||
| Heat preservation material | Polyurethane rigid foam + high density fiberglass cotton | ||||
| Standard configuration | Test hole, floodlight, double vacuum bulletproof glass observation window | ||||
| Power supply | three-phase,380V,50Hz | ||||
