ASTM Textile/ Fabrics Water Vapour Permeability Tester Air Velocity 0.1m/S~0.8m/S

Basic Information
Place of Origin: Guangdong, China (Mainland)
Brand Name: HAIDA
Certification: CE,ISO
Model Number: HD-W814
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: ach set protected with resin fiber and PP film, then put into Strong wooden case with operation man
Delivery Time: 20 days after order confirmed
Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash, escrow
Supply Ability: 30 Sets per Month Haida
Detail Information
Power: Electronic Test Station: 8pc Of Each Standard Test
Temperature Range: 18℃~50℃ Humidity Range: 40~95%RH
Air Velocity: 0.1m/s~0.8m/s Net Weight: 180 Kg
Power Source: 1 Phase, AC220V, 50Hz, 3.5kW Dimensions: 740x670x1300mm(approx)
High Light:

ASTM water vapour permeability tester


0.8m/S water vapour permeability tester


HAIDA water vapour permeability tester

Product Description

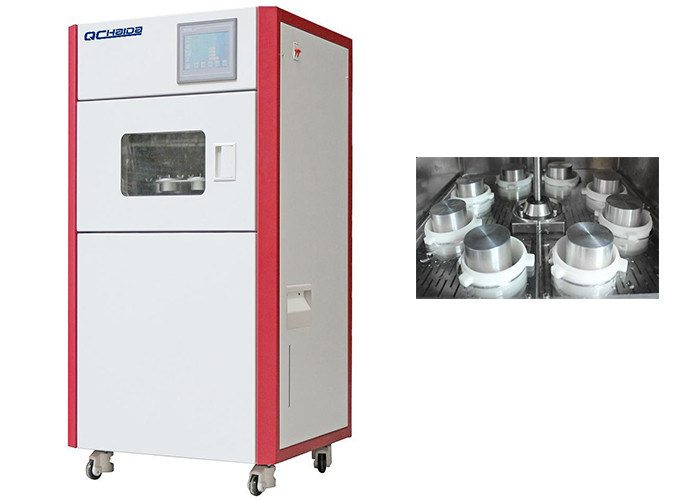

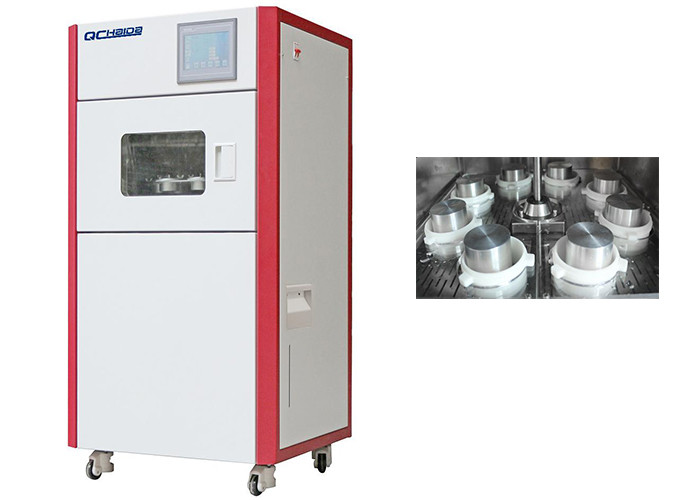

ASTM Textile/ Fabrics Water Vapour Permeability Tester Air Velocity 0.1m/S~0.8m/S






Water Vapour Permeability Tester is used for water permeability testing of various fabrics, film materials, composite fabrics and coated fabrics.



Water Vapour Permeability Tester




Testing standard


ASTM E96,JIS L1099A,GB/T 12704.1. BS 7209,JIS L1099B (Optional,different test standard with different fixture)




Technical parameters


Technical Index HD-W814
Test station 8pc of each standard test
Temperature range 18℃~50℃
Himidity range 40~95%RH
Air velocity 0.1m/s~0.8m/s
Dimensions 740x670x1300mm(approx)
Net Weight 180 Kg
Power source 1 Phase, AC220V, 50Hz, 3.5kW
Product Features

1. Apply a variety of standards and measurement methods.
2. Rotary sample holder, adjustable speed, uniform test than fixed sample holder.
3. The wind speed is adjustable, the use of imported wind speed sensor calibration, speed accuracy and stability.
4. Temperature and humidity control using PID algorithm, small fluctuations, effectively prevent temperature and humidity overshoot; with temperature and humidity calibration function, can well avoid the sensor bias caused by long-term use.
5. High-precision temperature and humidity sensors, test data stability, high precision.
6. SCM control, color touch screen operation, modular design, temperature and humidity digital settings, intelligent control, real-time display of temperature and humidity and time.
7. Input parameters in the color touch screen to calculate WVT, WVP and PV values.
8. The instrument is equipped with PC software, can record temperature and humidity curve, easy to calculate and print a large number of data reports.
