JIS L1096-2010 Water Vapour Permeability Tester ±1℃ Shearing Thermal Test Chamber

Basic Information
Place of Origin: Guangdong, China (Mainland)
Brand Name: HAIDA
Certification: CE,ISO
Model Number: HD-E702-800-K40
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: ach set protected with resin fiber and PP film, then put into Strong wooden case with operation man
Delivery Time: 20 days after order confirmed
Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash, escrow
Supply Ability: 30 Sets per Month Haida
Detail Information
Internal Dimension: (W*D*H) 1000*800*1000mm External Dimension: (W*D*H) 1500*1180*1900mm
Test Condition: 20±20C; 65% RH Temperature Accuracy: ±1℃
Humidity Range: 20~98%R.H. (Refer Image Below) Cooling Method: Air Cooling
High Light:

JIS L1096-2010 Water Vapour Permeability Tester


65% RH Water Vapour Permeability Tester

Product Description

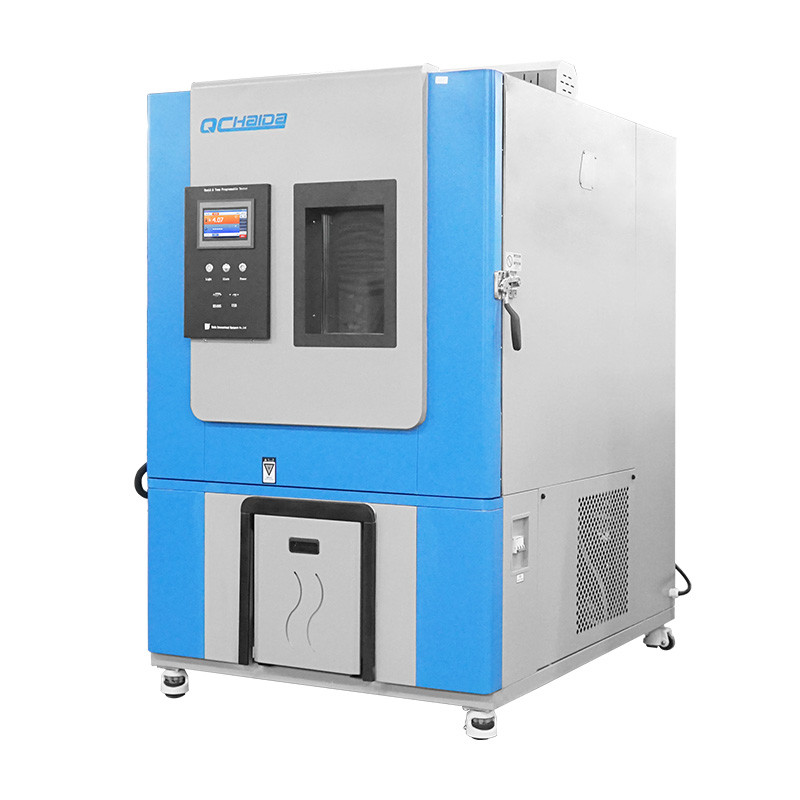

JIS L1096-2010 Shearing Thermal Test Chamber Water Vapour Permeability Teter ±1℃



1. To simulate test environment with different temperature and humidity
2. Cyclic test includes climatic conditions: holding test, cooling-off test, heating-up test, moistening test and drying test…
3. Cable port with flexible silicone plug for cable routing to provide the condition of test unit under operation
4. Uncover test unit weakness in a short-term test with accelerated time effect

Test Standard
GB/T 11048,ISO 11092,ASTM F 1868-09,ASTM D 1518-85,JIS L1096-2010,ASTM F 1868-02

Technical Parameters


Technical Index HD-E702-800-K40
Cooling speed 1℃/min in average (without loading)
Heating speed 3℃/min in average (without loading)
Internal chamber material SUS#304 stainless steel, mirror finished
External chamber material Stainless steel with paint spray

LCD touch screen, programmable control temperature and humidity
Can set different parameter for cyclic test

Insulation material 50mm high density rigid Polyurethane foam
Heater Explosion-proof type SUS#304 stainless steel fins radiator pipe heater
Compressor France Tecumseh compressor
Lighting Heat resistance
Temperature sensor PT-100 dry and wet bulb sensor
Observation window Tempered glass
Testing hole Diameter 50mm, for cable routing
Power supply source three-phase, 380V±10%, 50/60Hz
Gross Weight 500kg
Safety protection device

Protection for leakage
Compressor overvoltage and overload
Heater short circuit
Water shortage

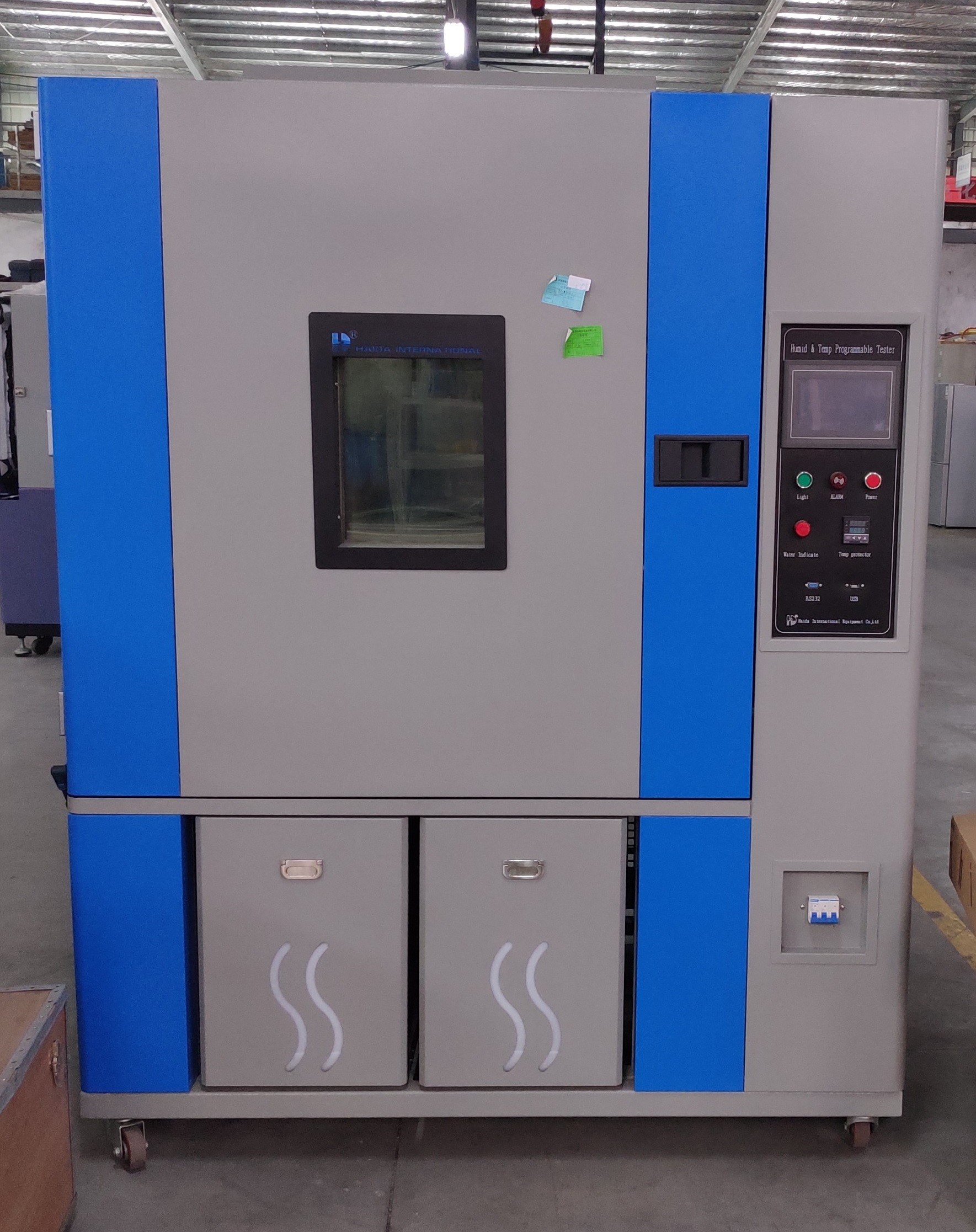

thermal test chamber thermal test chamber thermal test chamber
