Water Repellency Spray Rate Tester Textile Testing Tester AATCC 22

Basic Information
Place of Origin: Guangdong, China (Mainland)
Brand Name: HAIDA
Certification: CE,ISO
Model Number: HD-W816
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: ach set protected with resin fiber and PP film, then put into Strong wooden case with operation man
Delivery Time: 20 days after order confirmed
Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash, escrow
Supply Ability: 150 Sets per Month Haida
Detail Information
Height Of The Funnel With Nozzle: 200 Mm (±10 Mm) Spray Nozzle: Converse Face With 19 Holes.(Center-1, First Circle-6, Second Circle-12)
Rate Of Water Spray: 250 Ml In 25 To 30 Seconds. Distance Between Center Of Spray: 150 Mm (±2 Mm)
High Light:

AATCC 42 Impact Penetration Tester


152mm Nozzle Impact Penetration Tester

Product Description

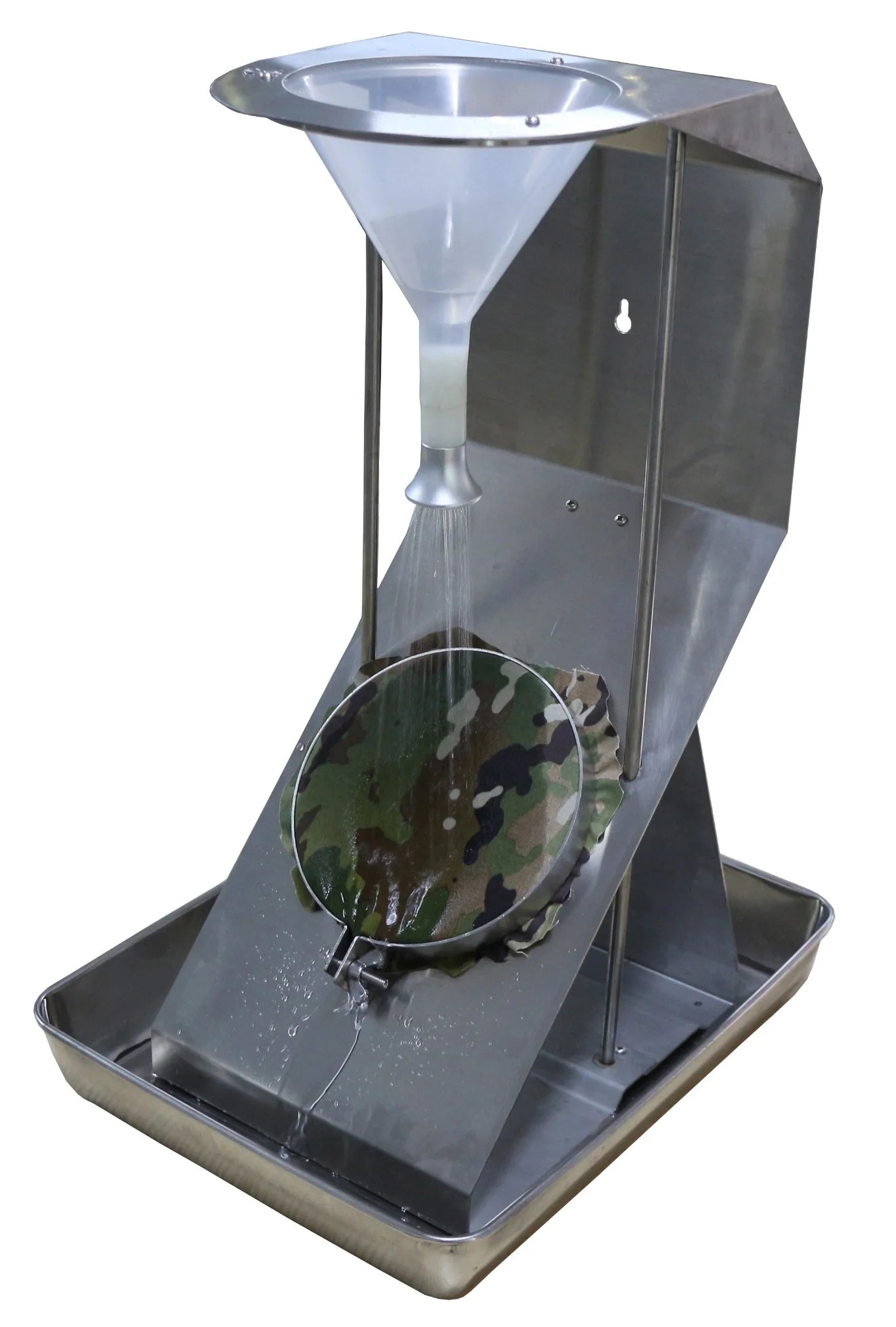

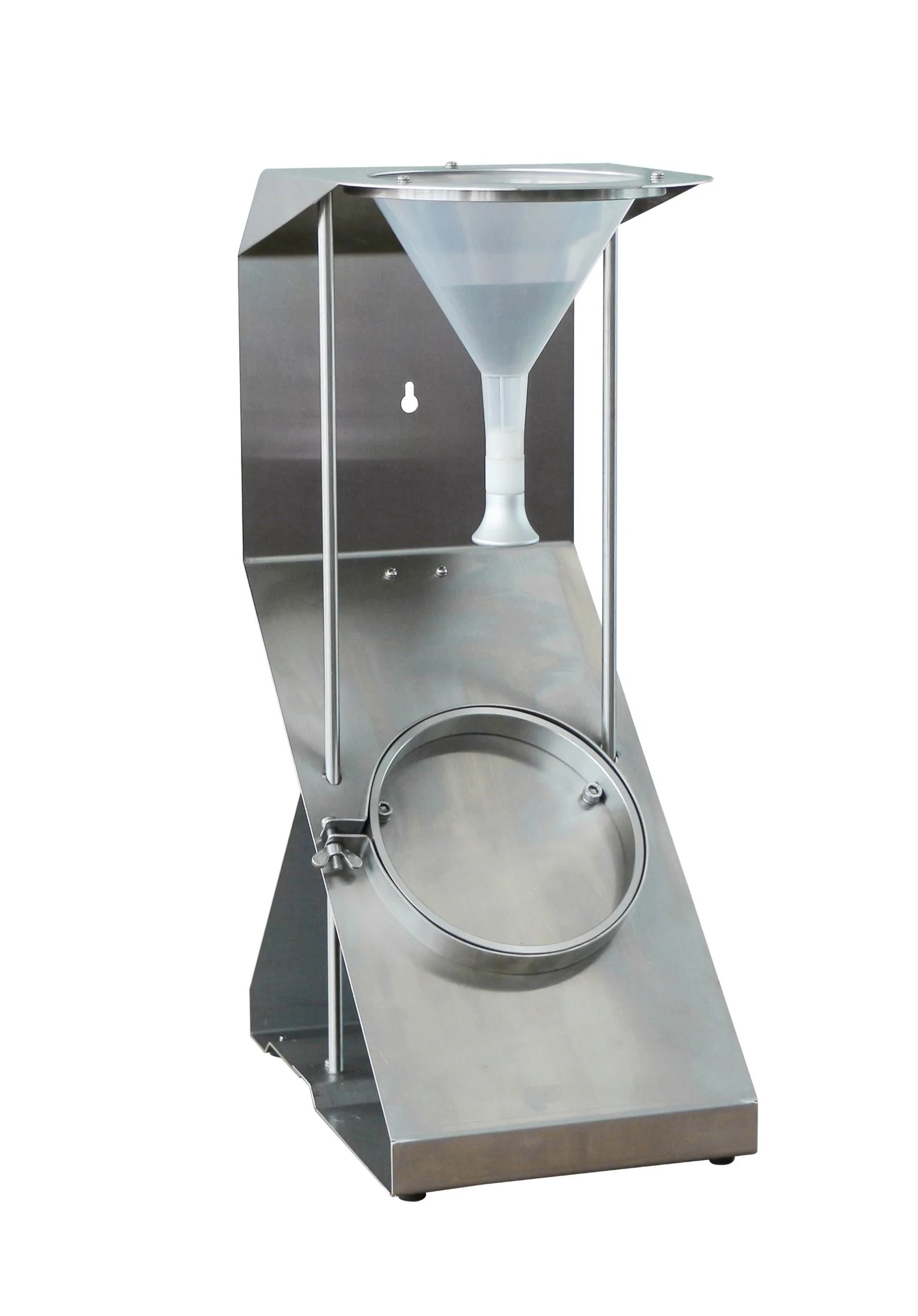

Water Repellency Spray Rate Tester Textile Testing Tester AATCC 22


Test Standard


AATCC 22-Water repellency: spray test




Water Spray Tester to determine the water repellency or surface wetting resistance of fabrics. Appearance of the specimen is compared against photographic chart.


Technical Parameters


Technical Index HD-W816
Spray nozzle 19 holes.(Center-1, First circle-6, Second circle-12)
Size of test specimen 180 x 180 mm square.
Rate of water spray 250 ml in 25 to 30 seconds.
Position of test specimen Mounted on a ring and placed at an angle of 45°
Distance between center of spray 150 mm (±2 mm)
Holder Dia. 150 mm (±5 mm)
Plastic funnel dia. 150 mm (±5 mm)
Height of the funnel with nozzle 200 mm (±10 mm)
Dimensions 200 x 250 x 480 mm
Weight 5kg



impact penetration tester   impact penetration tester
