| Place of Origin: | Guangdong, China (Mainland) |
|---|---|
| Brand Name: | HAIDA |
| Certification: | CE,ISO |
| Model Number: | HD-W816 |
| Minimum Order Quantity: | 1 Set |
| Price: | Negotiable |
| Packaging Details: | ach set protected with resin fiber and PP film, then put into Strong wooden case with operation man |
| Delivery Time: | 20 days after order confirmed |
| Payment Terms: | L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash, escrow |
| Supply Ability: | 30 Sets per Month Haida |
| Spray Nozzle: | With 19 Holes.(Center-1, First Circle-6, Second Circle-12) | Size Of Test Specimen: | 180 X 180 Mm Square. |
|---|---|---|---|
| Rate Of Water Spray: | 250 Ml In 25 To 30 Seconds. | Position Of Test Specimen: | Mounted On A Ring And Placed At An Angle Of 45° |
| Distance Between Center Of Spray: | 150 Mm (±2 Mm) | Holder Dia.: | 150 Mm (±5 Mm) |
| Plastic Funnel Dia.: | 150 Mm (±5 Mm) | Weight: | 5kg |
| High Light: | HAIDA water repellency tester,10ml/s water repellency tester,10ml/s textile testing machine |
||

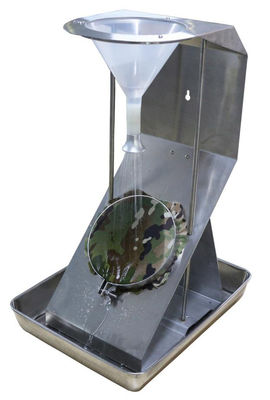

HAIDA 10ml/S Water Repellency Tester With Spray Nozzle 250 Ml In 25 To 30 Seconds
Usage
Water Spray Tester to determine the water repellency or surface wetting resistance of fabrics. Appearance of the specimen is compared against photographic chart.
Test Standard
AATCC 22-Water repellency: spray test
Technical Parameters
| Technical Index | HD-W816 |
| Spray nozzle | face with 19 holes.(Center-1, First circle-6, Second circle-12) |
| Size of test specimen | 180 x 180 mm square. |
| Rate of water spray | 250 ml in 25 to 30 seconds. |
| Position of test specimen | Mounted on a ring and placed at an angle of 45° |
| Distance between center of spray | 150 mm (±2 mm) |
| Holder Dia | 150 mm (±5 mm) |
| Plastic funnel dia | 150 mm (±5 mm) |
| Height of the funnel with nozzle | 200 mm (±10 mm) |
| Dimensions | 200 x 250 x 480 mm |
| Weight | 5kg |
FAQ
How to install and use the product?
The product is shipped with an operating instructions and video of English version.or we will send you an operation video to teach you how to install and use the product with English speaking. However, if you need us to teach you face to face, please let us know in advance.
How about the packing for machine, is it safely protected during transportation?
Our machine is packed by standard export wooden box, it won’t be damaged. We’ve delivered many testing machines abroad by sea or by air without damage.
What is the order process?
Inquiry - quotation - communication - order confirming - deposit payment - production - testing and debugging - balance payment - packing - delivery - customer receiving - after service.
