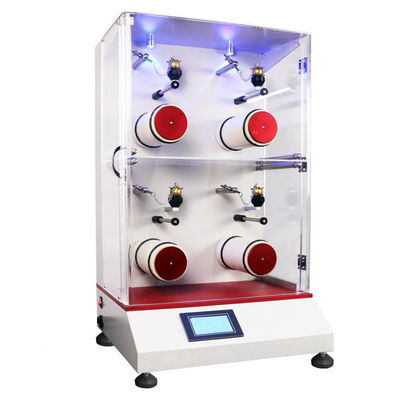

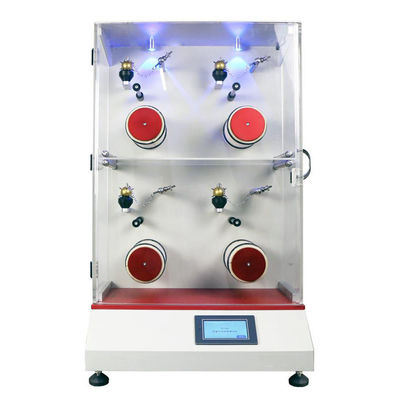

LED Pilling Test Machine, ICI Mace Snag Tester Of Tungsten Carbide Steel Needle

Brand Name:	HAIDA
Model Number:	HD-W955
MOQ:	1 Set
Price:	Negotiable
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash, escrow
Supply Ability:	30 Sets per Month Haida

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong, China (Mainland)

Certification:

CE,ISO

Power:

Electronic

Dimensions:

970 X 480 X400 Mm

Needle:

Tungsten Carbide Steel

Digital Counter:

0–99999,LED

Felt Thickness:

3～3.2mm; Width 165mm

Mace Weight:

160±10g

Packaging Details:

ach set protected with resin fiber and PP film, then put into Strong wooden case with operation man

Supply Ability:

30 Sets per Month Haida

Product Description

LED Pilling Test Machine, ICI Mace Snag Tester Of Tungsten Carbide Steel Needle

TECHNICAL PARAMETER

Technical Index	HD-W955
No. of Cylinder	4 Nos.
Mace	Diameter Ø 31.8mm, Weight 160g (Including needles)
Speed of Rotation of Cylinder	60 R.P.M. (± 2 rpm.) (As Per Standards)
Mace weight	160±10g
The exposed length of the pin nail	10mm; the tip radius R0.13mm
Felt thickness	3～3.2mm; width 165mm
Working width of guide rod	125mm
The distance between the hammer and the guide rod	45mm
Size of Test Specimen	200x330mm (As Per Standards)
Digital Counter (Preset Type)	0–99999,LED
Needle	tungsten carbide steel
Dimensions	970 x 480 x400 mm
Power supply	220V,50Hz or 110V,60Hz
Net Weight	60 Kg

TEST STANDARD

ASTM D3939,GB / T 11047

INTRODUCTION

ICI Mace Snag Tester applies to rapidly determine the snagging resistance of heavyweight fabrics such as apparel, upholstery, and automotive interiors fabrics etc.

FEATURES

The number of rotation cycles can be preset. Automatically stops when the preset rotation period is reached. In order to ensure the accuracy of detection and prolong the service life, the nail hammer is made of platinum steel. Adjustable chain length.
