| Place of Origin: | Guangdong, China (Mainland) |
|---|---|
| Brand Name: | HAIDA |
| Certification: | CE,ISO |
| Model Number: | HD-W128-4 |
| Minimum Order Quantity: | 1 Set |
| Price: | Negotiable |
| Packaging Details: | ach set protected with resin fiber and PP film, then put into Strong wooden case with operation man |
| Delivery Time: | 20 days after order confirmed |
| Payment Terms: | L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash, escrow |
| Supply Ability: | 30 Sets per Month Haida |
| Power: | Electronic | Number Of Chambers: | 4 Nos. |
|---|---|---|---|
| Size Of Chamber: | 146mm (inside Diameter) X 152mm (length) | Length Of Impellerair Injection: | 121mm |
| Number Of Samples: | 12 (3 In Each Compartment) | Impeller Rotation Speed: | 1200 ± 10 Rpm |
| High Light: | Random Tumble Pilling Test Machine,Four Chambers Pilling Test Machine,Fabric Pilling Test Machine |
||

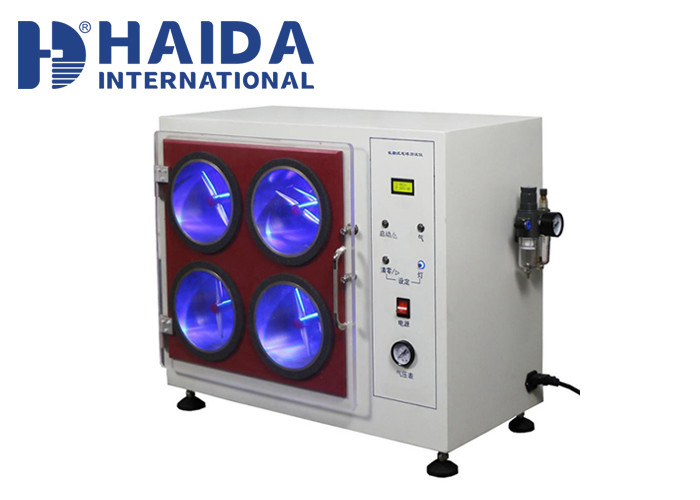

Four Chambers Random Tumble Pilling Test Equipment
Fabric Shuffle Pilling Tester Test Fabric
Introduction
Salient Features
1. Vertical instrument with 2 or 4 chambers.
2. Compact, rigid construction, with small footprint.
3. Simple-to-use control system.
4. Chambers illuminated, utilising long-life LED technology.
5. Interlocked chamber doors for maximum operator safety.
6. Adjustable air pressure.
7. Audible alarm signals end of test.
8. Equipped as standard with an American (ASTM D 3512) impeller - other impellers to special order.
Technical parameter:
| Technical Index | HD-W128-2 | HD-W128-4 |
| Number of Chambers | 2 Nos. | 4 Nos. |
| Size of chamber | 146mm (inside diameter) x 152mm (length) | |
| Length of impeller | 121mm | |
| Number of samples | 12 (3 in each compartment) | |
| Impeller rotation speed | 1200 ± 10 rpm | |
| Timer | up to 99 min and 59 s | |
| Compressed air injection | 14kPa - 21kPa (2 - 3 Psi) | |
| Cork sheet | 1.5mm (thickness) x 148mm (width) x 452mm (length) | |
| Chloroprene sheet (optional) | 3mm (thickness) x 452mm (length), 47±3° (in hardness) | |
| Dimensions | 550 x 380 x 550 mm | 700 x 400 x 550 mm |
| Power supply | 220V, 50Hz or 110V, 60Hz,90W | |
| Net Weight | 65kg | 80kg |
About us
Haida International Equipment Co,Ltd was established in 2004, located in Dongguan city, Guangdong Province, China, is specialized in production and R&D of various material physical properties testing equipment. We have our own independent research and development center and four testing equipment production lines: textile, footwear, leather, mask. In 2006, textile, footwear, leather mask testing equipment officially put into production and entered the international market.
