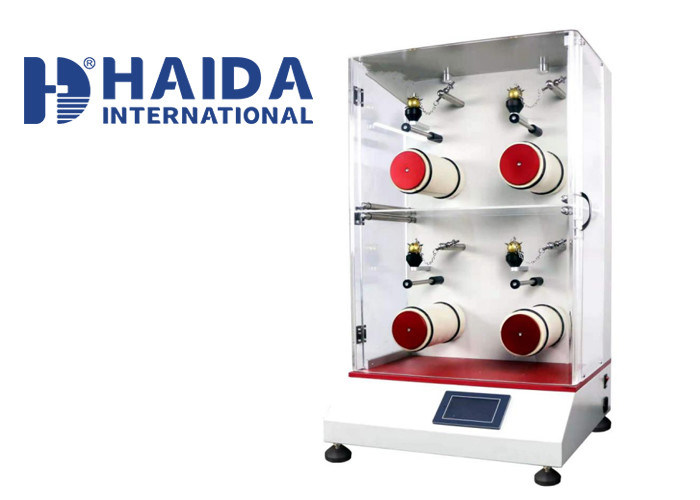

Fabric Textile ICI Mace Snag Tester And Snagging Resistance Test Machine

Basic Information
Place of Origin: Guangdong, China (Mainland)
Brand Name: HAIDA
Certification: CE,ISO
Model Number: HD-W955
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: cach set protected with resin fiber and PP film, then put into Strong wooden case with operation man
Delivery Time: 20 days after order confirmed
Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash, escrow
Supply Ability: 30 Sets per Month Haida
Detail Information
Power: Electronic Mace Weight: Diameter Ø 31.8mm, Weight 160g (Including Needles)
Speed Of Rotation Of Cylinder: 60 R.P.M. (± 2 Rpm.) (As Per Standards) Size Of Test Specimen: 200x330mm (As Per Standards)
Dimensions: 970 X 480 X400 Mm Power Supply: 220V,50Hz Or 110V,60Hz
High Light:

Fabric Textile ICI Mace Snag Tester


Electronic Mace Snag Tester


110V Mace Snag Tester

Product Description

Fabric Textile ICI Mace Snag Tester And Snagging Resistance Tester For Pilling Test
This tester is specially designed equipment to determine the snagging resistance of a fabric.
To rapidly determine the snagging resistance of robust apparel and furnishings fabrics.
Testing standards
ASTM D3939 Standard Test Method for Snagging Resistance of Fabrics (Mace Test Method)
JIS L 1058 Test methods for snag of woven fabrics and knitted fabrics
VDA 230-220 Textiles for the automotive interiors - Determining the thread puller tendency of textiles
Mace Snag test
Test procedure
1.Place tubular fabrics specimen on cylindrical drum of test apparatus.
2.Set the counter for 600 revolutions (approximately a 10-mm test) and operate the mace snagging tester.
3.Remove the specimens from the drums.
4.Grade the test specimen and record.
Salient features
1.Specially designed equipment to determine the snagging resistance of robust apparel and furnishings fabrics.

2.Four Snagging Cylinders for better efficiency of work.
3.Microprocessor based controller with latest aesthetics.
4.Specially designed standard mace meet the standard specifications.
5.Smooth precision engineered components for excellent performance.
6.Supplied with calibration & inspection certificates.


Fabric Textile ICI Mace Snag Tester And Snagging Resistance Test Machine 0

Technical details

No. of Cylinder 4 Nos.
Mace Diameter Ø 31.8mm, Weight 160g (Including needles)
Speed of Rotation of Cylinder 60 R.P.M. (± 2 rpm.) (As Per Standards)
Size of Test Specimen 200x330mm (As Per Standards)
Digital Counter (Preset Type) 0–99999,LED
Needle tungsten carbide steel
Dimensions 970 x 480 x400 mm
Power supply 220V,50Hz or 110V,60Hz
Weight 60 Kg

Accessories supplied with the instrument
1.Main Unit:01 No.
2.Rubber O-Rings:08 Nos.
3.Gage(for setting position of mace):01 No.
4.Felt Sleeves:04 Nos.
5.Power Cord:01 No.
6.This User’s Manual:01 No.
7.Inspection & Conformance Certificate:01 No.
