| Place of Origin: | Guangdong, China (Mainland) |
|---|---|
| Brand Name: | HAIDA |
| Certification: | CE,ISO |
| Model Number: | HD-W128-2 |
| Minimum Order Quantity: | 1 Set |
| Price: | Negotiable |
| Packaging Details: | ach set protected with resin fiber and PP film, then put into Strong wooden case with operation man |
| Delivery Time: | 20 days after order confirmed |
| Payment Terms: | L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash, escrow |
| Supply Ability: | 30 Sets per Month Haida |
| Number Of Chambers: | 2 Nos. | Timer: | Up To 99 Min And 59 S |
|---|---|---|---|
| Compressed Air Injection: | 14kPa - 21kPa (2 - 3 Psi) | Cork Sheet: | 1.5mm (thickness) X 148mm (width) X 452mm (length) |
| Chloroprene Sheet (optional): | 3mm (thickness) X 452mm (length), 47±3° (in Hardness) | Power Supply: | 220V, 50Hz Or 110V, 60Hz |
| Weight: | 65kg | Dimensions: | 550 X 380 X 550 Mm |
| High Light: | Two Chambers Fabric Fuzzing Testing Machine,Random Tumble Fabric Fuzzing Testing Machine,Random Tumble Pilling Test Machine |
||

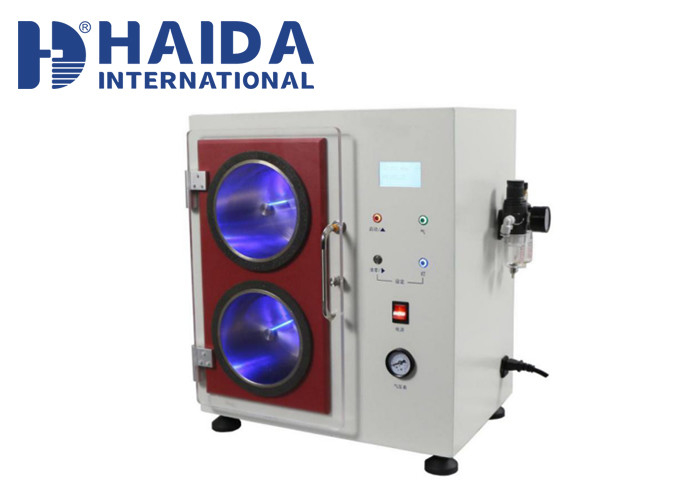

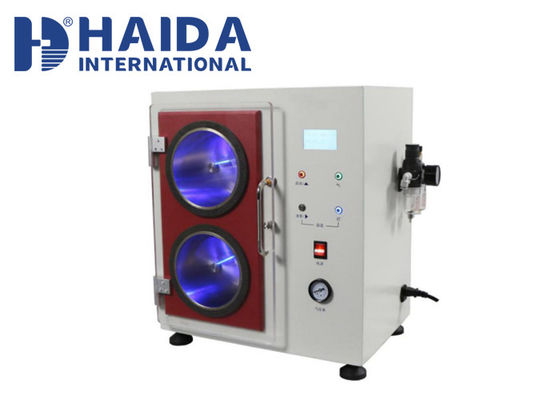

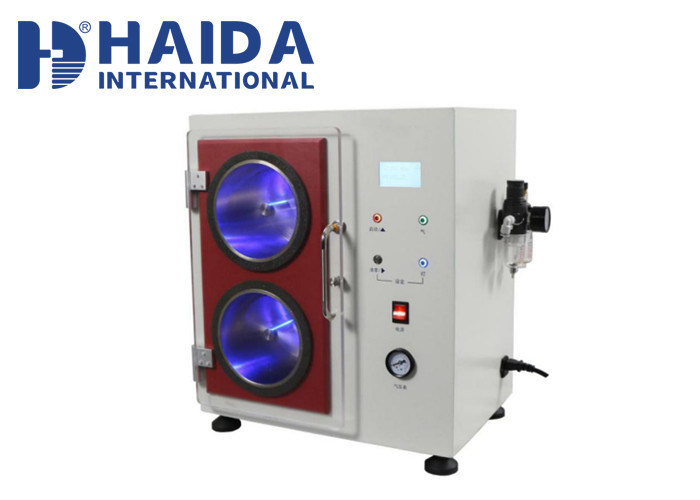

Two Chambers Automation Fabric Pilling And Fuzzing Testing Machine
Random Tumble Pilling Tester
Product introduction:
Pilling and other changes in surface appearance, such as fuzzing, that occur in normal wear are simulated on a laboratory testing machine. Pills are caused to form on fabric by a random rubbing action produced by tumbling specimens in a cylindrical test chamber lined with a mildly abrasive material. To form pills with appearance and structure that resemble those produced in actual wear, small amounts of short-length gray cotton fiber are added to each test chamber with the specimens. The degree of fabric pilling is evaluated by comparison of the tested specimens with visual standards that may be actual fabrics, or photographs of fabrics, showing a range of pilling resistance. The observed resistance to pilling is reported using an arbitrary rating scale.Random Tumble Pilling Tester is specially designed equipment to determine the pilling and fuzzing characteristics of textile fabrics.
Smith Barney Inc. are now able to offer a technically advanced machine that is easy to use and inexpensive to own.
Usage
To determine the pilling and fuzzing characteristics of textile fabrics.
Test standards
ASTM D3512 Standard Test Method for Pilling Resistance and Other Related Surface Changes of Textile Fabrics: Random Tumble Pilling Tester
ISO 12945-3 Textiles- Determination of the fabric propensity to surface pilling, fuzzing or matting
Part 3: Random tumble pilling method
JIS L 1076 Testing methods for pilling of woven fabrics and knitted fabrics
DIN 53867 Testing of textile fabrics; determination of pilling with the Random-Tumble-Pilling-Tester
Salient Features
1. Vertical instrument with 2 or 4 chambers.
2. Compact, rigid construction, with small footprint.
3. Simple-to-use control system.
4. Chambers illuminated, utilising long-life LED technology.
5. Interlocked chamber doors for maximum operator safety.
6. Adjustable air pressure.
7. Audible alarm signals end of test.
8. Equipped as standard with an American (ASTM D 3512) impeller - other impellers to special order.
Technical parameter
| Number of Chambers | 4 Nos. |
| Size of chamber | 146mm (inside diameter) x 152mm (length) |
| Length of impeller | 121mm |
| Number of samples | 12 (3 in each compartment) |
| Impeller rotation speed | 1200 ± 10 rpm |
| Timer | up to 99 min and 59 s |
| Compressed air injection | 14kPa - 21kPa (2 - 3 Psi) |
| Cork sheet | 1.5mm (thickness) x 148mm (width) x 452mm (length) |
| Chloroprene sheet (optional) | 3mm (thickness) x 452mm (length), 47±3° (in hardness) |
| Dimensions | 700 x 400 x 550 mm |
| Power supply | 220V, 50Hz or 110V, 60Hz |
| Weight | 80kg |
Accessories supplied with the instrument
1. Main Unit: 01 No.
2. Power Cord: 01 No.
3. This User’s Manual: 01 No.
4. Inspection & Conformance Certificate: 01 No.
About us
Haida International Equipment Co,Ltd was established in 2004, located in Dongguan city, Guangdong Province, China, is specialized in production and R&D of various material physical properties testing equipment. We have our own independent research and development center and four testing equipment production lines: textile, footwear, leather, mask. In 2006, textile, footwear, leather mask testing equipment officially put into production and entered the international market.
