| Place of Origin: | Guangdong, China (Mainland) |
|---|---|
| Brand Name: | HAIDA |
| Certification: | ISO，CE |
| Model Number: | HD-P304 |
| Minimum Order Quantity: | 1set |
| Price: | Negotiable |
| Packaging Details: | ach set protected with resin fiber and PP film, then put into Strong wooden case with operation man |
| Delivery Time: | 20 days after order confirmed |
| Payment Terms: | L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash, escrow |
| Supply Ability: | 80 Sets per Month |
| Rotating Speed: | 60~72r/min(adjustable) | Load: | 250gx2,500gx2, 750gx2 |
|---|---|---|---|
| Space Between Abrasion Wheels: | 52.5mm | Net Weight: | 40Kg |
| Abrasion Paper( Optional): | S-42,width 12.7mm,length 160mm | Counter: | LED 0～99999999 |
| Power Supply: | AC220V/50Hz | Product Name: | Pilling Test Machine |
| High Light: | Abrasion Wheel Pilling Tester Machine,Rotating Pilling Tester Machine,72r/min Pilling Test Machine |
||

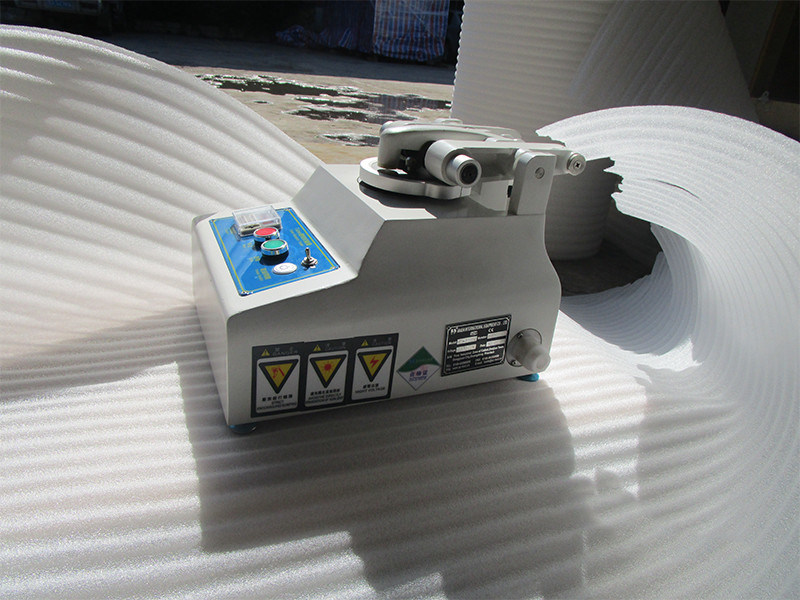

Pilling Test Machine is an excellent pilling test instrument for fabric testing, providing accurate and reliable test results. It is designed for the determination of the pilling resistance of fabrics by measuring the resistance to wear caused by rubbing or abrasion. With this pilling test machine, you can accurately measure the pilling resistance of fabrics.
This pilling test instrument is ideal for quality assurance and product development. It is widely used in fabric industry, textile industry, clothing industry, etc., for pilling test and pilling resistance evaluation.
| Product Name | Specification |
|---|---|
| Pilling Test Machine | Thickness of abrasion wheel: 12.7mm Dimension: 45×35×42cm Abrasion paper( optional): S-42,width 12.7mm,length 160mm Abrasion Wheel and Plate`s Space:: 37~38mm Counter: LED 0～99999999 Rotating Speed: 60~72r/min(adjustable) Net Weight: 40Kg Space Between abrasion Wheels: 52.5mm Load: 250gx2,500gx2, 750gx2 |

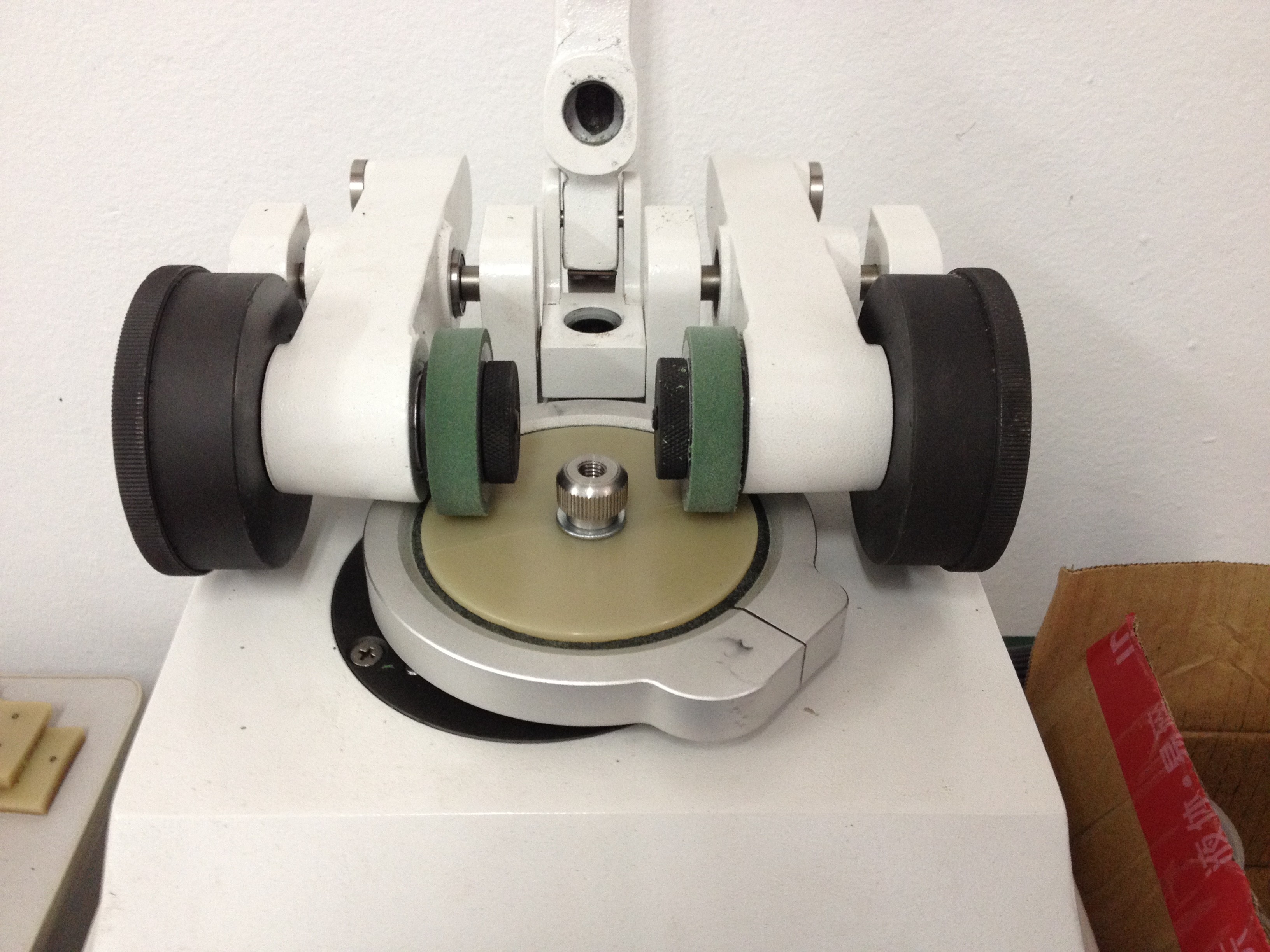

Abrasion Tester is suitable for measuring leather, fabric, coating, paper, floor tile, plywood, glass, natural rubber, etc. . Use the specified grinding wheel and apply the weight to the specimen cut with the knife. Set the scroll time. Then take out the specimen and observe the condition after the specimen is worn. Or calculate the different weights of the samples before and after the test to get the wear index meter.
We offer technical support and services for our Pilling Test Machine. Our experienced engineers are available to help you with any questions or technical problems you might have. We provide remote support as well as on-site services. Our support team is available 24/7 to answer your inquiries. We also offer training programs to ensure that you are able to fully utilize the features of our Pilling Test Machine.
The Pilling Test Machine will be packaged for shipping in a durable cardboard box. Inside the box, the machine will be secured with bubble wrap and foam padding. The box will be further secured with packing tape. The package will be clearly marked with "FRAGILE" labels to ensure that the machine is handled with care during transit.
