80RPM Circular Locus Tester For Fabric 560×350×380mm External Dimension

Basic Information
Place of Origin: Guangdong, China (Mainland)
Brand Name: HAIDA
Certification: CE,ISO
Model Number: HD-W502
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: ach set protected with resin fiber and PP film, then put into Strong wooden case with operation man
Delivery Time: 20 days after order confirmed
Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash, escrow
Supply Ability: 30 Sets per Month Haida
Detail Information
Power: Electronic Weight: 28kg
External Dimension: 560×350×380mm Adjustable Speed Range: (40~80)±2r/min
Adjustable Brush Height: 2~12mm Use: Fabrics
High Light:

Circular locus pilling tester


Fabric Circular Locus Pilling Tester


Circular Locus Tester

Product Description

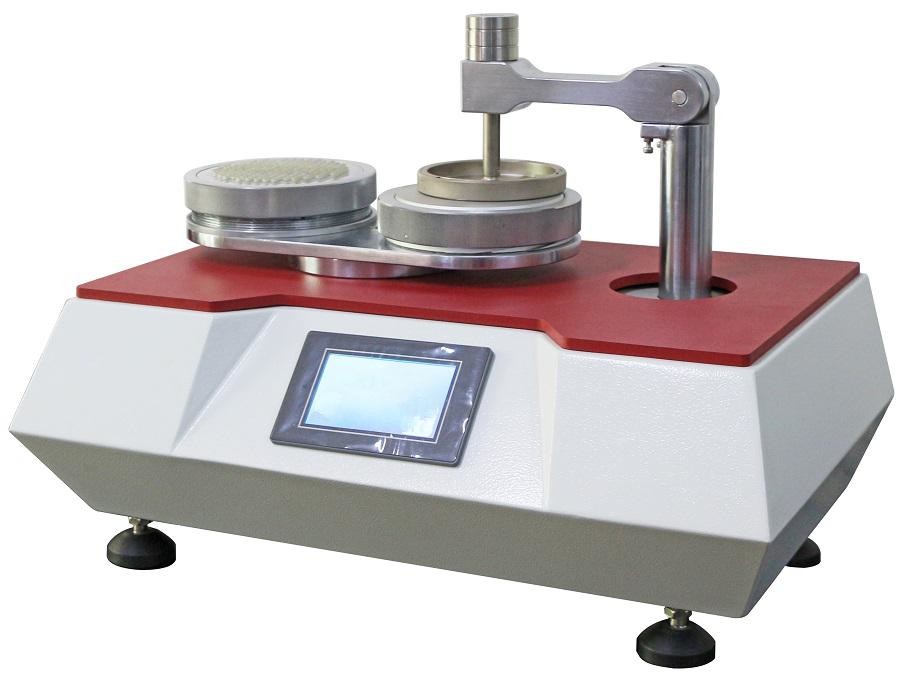

80RPM Circular Locus Tester For Fabric 560×350×380mm External Dimension




Product Introduction


Circular locus pilling tester is used to measure pilling and pilling of wool, chemical fiber, blended fabric, woven fabric and so on, in order to evaluate the product quality and production process. During the test, the fabric is rubbed with a nylon brush and abrasive, or only under controlled conditions.




Technical parameter


Technical Index HD-W502
Motion Trail φ40mm Circular trajectory motion
Adjustable Brush Height 2~12mm
Sample Pressure Chemical Fiber Fabric Pressure 590cN
Combed Fabric Pressure 780cN
Carding Fabric Pressure 490cN
Sample Size φ112.8mm(100mm2)
Adjustable Speed Range (40~80)±2r/min
Two Count Methods

1~999999 Times

1~999999 Min

External Dimension 560×350×380mm
Weight 28kg
Power Supply AC220V 50Hz 40W





















Q: Do you accept customization service?

A: Yes, of course, we can not only offer standard machines, but also customized machines according to your request. Don't hesitate to tell us your requirement, we will do our best to meet your needs.

Q: How about your warranty?

A: Generally, our warranty is one year. Within the warranty period, we can offer technique support and part parts change, if it's necessary, our engineers may go to your place for better service.

Q: What is the order process?

A: Get Inquiry - Send the Quotation - Confirm the requirements - Order confirming - Payment - production - testing and debugging- packing - Confirm with customer about the necessary documents- Arrangement the Delivery - Send the product out - Customer Receiving - After Service.
