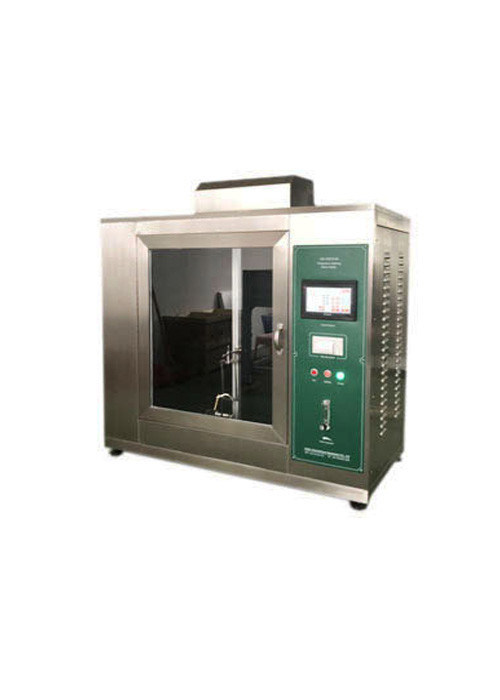

GB/T5456-2009 Vertical Flame Tester Flammability Testing Machine For Fabric 26mm

Basic Information
Place of Origin: Guangdong, China (Mainland)
Brand Name: HAIDA
Certification: CE,ISO
Model Number: HD-W821
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: ach set protected with resin fiber and PP film, then put into Strong wooden case with operation man
Delivery Time: 20 days after order confirmed
Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash, escrow
Supply Ability: 30 Sets per Month Haida
Detail Information
Power: Electronic Weight: Approx 36KG
Flame Angle: 30 º& 90° Ignition Time: 0 ~ 999.9s Can Be Set
Flame Spread Time: 0 ~ 999.9s Can Be Set Product Name: Fabric Vertical Flammability Tester
High Light:

GB/T5456-2009 Flammability Testing Machine


30degree Flammability Testing Machine


GB / T5456-2009 Vertical Flammability Tester

Product Description

GB/T5456-2009 Vertical Flame Tester Flammability Testing Machine For Fabric 26mm





Test standard


GB / T5456-2009,ISO6941 : 2003




Technical parameters


Technical Index HD-W821
Control method 7-inch color touch screen, can set and display ignition time and flame spread time
Machine size 410mm(W) X 900mm(H) X 380mm(D)
Ignition time 0 ~ 999.9s can be set
Flame spread time 0 ~ 999.9s can be set
Flame angle 30 º& 90°
Flame size

Inner diameter of blowtorch tube: Ø6mm

The inner diameter of the fire nozzle is Ø1.7mm, evenly distributed 8 Ø0.9mm holes

Combustion gas The combustion gas uses industrial propane or butane gas
Sample holder Composed of a rectangular metal frame, the rectangular frame is 560mm long and 150mm wide. It is equipped with 12 sample fixing pins. The distance between the sample fixing pins and the bottom of the frame is 5mm, 10mm, 190mm, 370mm, 550mm and 555mm. The length is at least 26mm. The test plane frame is at least 20mm, and a positioning cylinder with a diameter of 2mm and a length of at least 20mm is installed near each fixed pin.
Weight Approx 36KG
Voltage AC220V, 50Hz
































Vertical Flame Tester is suitable for the measurement of limited flame spread properties of Protective clothing.. A defined flame from a specified burner is applied for 10 s to the surface or the bottom edge of textile specimens which are vertically oriented.​





Company Introduction:


HAIDA INTERNATIONAL is a professional manufacturer of various kinds of testing equipments over 16 years. HAIDA products are widely used in paper products, packaging, ink printing, adhesive tapes, bags, footwear, leather products, environment, toys, baby products, hardware, electronic products, plastic products, rubber products and other industries, and applicable to all scientific research units, quality inspection institutions and academic fields.






How to install and use the product?

The product is shipped with an operating instructions and video of English version.or we will send you an operation video to teach you how to install and use the product with English speaking. However, if you need us to teach you face to face, please let us know in advance.


How about the packing for machine, is it safely protected during transportation?
Our machine is packed by standard export wooden box, it won’t be damaged. We’ve delivered many testing machines abroad by sea or by air without damage.


What is the order process?
Inquiry - quotation - communication - order confirming - deposit payment - production - testing and debugging - balance payment - packing - delivery - customer receiving - after service.
