| Place of Origin: | Guangdong, China (Mainland) |
|---|---|
| Brand Name: | HAIDA |
| Certification: | CE,ISO |
| Model Number: | HD-W821-1 |
| Minimum Order Quantity: | 1 Set |
| Price: | Negotiable |
| Packaging Details: | ach set protected with resin fiber and PP film, then put into Strong wooden case with operation man |
| Delivery Time: | 20 days after order confirmed |
| Payment Terms: | L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash, escrow |
| Supply Ability: | 30 Sets per Month Haida |
| Power: | Electronic | Control Method: | Color Touch Screen |
|---|---|---|---|
| Flame Angle: | 25º | Flame Size: | Ø11mm |
| Sample Size: | 300x76mm | Flame Height: | 38±1mm |
| Net Weight: | 20kg | Dimensions: | L330xW30xH945mm |
| High Light: | CE approval Flammability Testing Machine,25degree Flammability Testing Machine,25degree flammability test equipment |
||

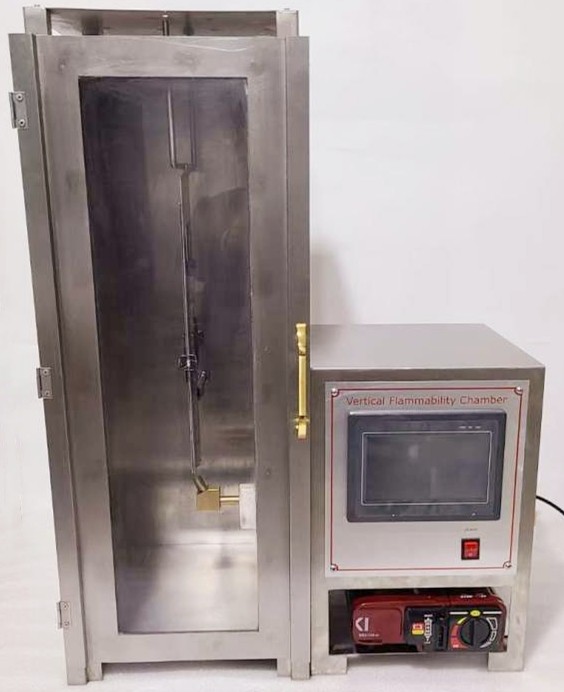

Touch Screen Flammability Tester For Coated Fabric
Application
Flammability Testing Machine is mainly composed of a combustion test box and a control panel. The sample is clamped on a clamp and placed above the burner. The burner produces a flame that meets the specified height to ignite the sample. After the specified ignition time, the sample is measured Parameters such as continuous burning, smoldering time and length of burning loss.
This instrument can be applied to flame retardant fabrics such as woven fabrics, knitted fabrics, coated fabrics, laminated products, etc.
Test standard
GB / T5455-2014,JIS1091,CPAI-84,GB5725-2009,CALIF TB-117,
Technical parameters
| Technical Index | HD-W821-1 |
| Control method | color touch screen |
| Weight | 54.5g,113.4g,226.8g,340.2g,453.6g |
| Flame angle | 25º |
| Flame size | Ø11mm |
| Sample size | 300x76mm |
| Flame height | 38±1mm |
| Combustion gas | The combustion gas uses industrial propane or butane gas (the factory configuration is butane with a purity greater than 98%) |
| Net weight | 20kg |
| Dimensions | L330xW30xH945mm |
| Voltage | AC220V, 50Hz |
About us
Haida International Equipment Co,Ltd was established in 2004, located in Dongguan city, Guangdong Province, China, is specialized in production and R&D of various material physical properties testing equipment. We have our own independent research and development center and four testing equipment production lines: textile, footwear, leather, mask. In 2006, textile, footwear, leather mask testing equipment officially put into production and entered the international market.
