ISO6941 : 2003 Flammability Testing Machine 30degree AC220V Approx 36KG

Basic Information
Place of Origin: Guangdong, China (Mainland)
Brand Name: HAIDA
Certification: CE,ISO
Model Number: HD-W821
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: ach set protected with resin fiber and PP film, then put into Strong wooden case with operation man
Delivery Time: 20 days after order confirmed
Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash, escrow
Supply Ability: 30 Sets per Month Haida
Detail Information
Power: Electronic Ignition Time: 0 ~ 999.9s Can Be Set
Flame Spread Time: 0 ~ 999.9s Can Be Set 0 ~ 999.9s Can Be Set: 30 º& 90°
Weight: Approx 36KG Voltage: Voltage
High Light:

30degree Flammability Testing Machine


ISO6941 : 2003 Flammability Testing Machine


30degree Vertical Flammability Tester

Product Description

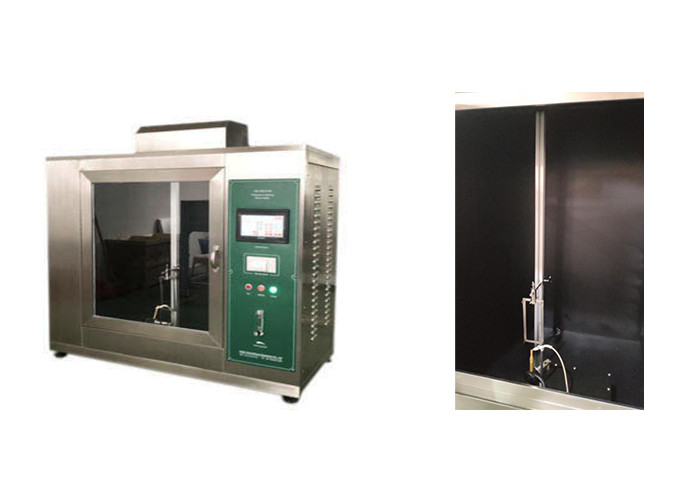

ISO6941 : 2003 Flammability Testing Machine 30degree AC220V Approx 36KG






Flammability Testing Machine is used to access the properties of textile fabrics in response to flame contract under controlled conditions, suitable for vertical burning performance testing of all kinds of single component or multi-component (coating, quilting, multi-layer, sandwich products and similar combinations) textile fabrics and industrial products.




Test standard


GB / T5456-2009,ISO6941 : 2003




Technical parameters


Technical Index HD-W821
Control method 7-inch color touch screen, can set and display ignition time and flame spread time
Machine size 410mm(W) X 900mm(H) X 380mm(D)
Ignition time 0 ~ 999.9s can be set
Flame spread time 0 ~ 999.9s can be set
Flame angle 30 º& 90°
Flame size

Inner diameter of blowtorch tube: Ø6mm

The inner diameter of the fire nozzle is Ø1.7mm, evenly distributed 8 Ø0.9mm holes

Combustion gas The combustion gas uses industrial propane or butane gas
Sample holder Composed of a rectangular metal frame, the rectangular frame is 560mm long and 150mm wide. It is equipped with 12 sample fixing pins. The distance between the sample fixing pins and the bottom of the frame is 5mm, 10mm, 190mm, 370mm, 550mm and 555mm. The length is at least 26mm. The test plane frame is at least 20mm, and a positioning cylinder with a diameter of 2mm and a length of at least 20mm is installed near each fixed pin.
Weight Approx 36KG
Voltage AC220V, 50Hz
Our serives

-24 Hours online service for your consult.
--Help choose right model,and a series of service,person,advise.

Give you best offer
--Provide discount for many sets order
--Do customer's request

1 year warranty service and all life maintenance.
--Technical Egineer are avalible for oversea trainning.
--Free change for some parts
--Remote control technical consult
--Free installation DVD
--Maintenance plan
