45° Flammability Tester For Face Mask Holder 45° Angle Ignition Time 0-99.0s

Basic Information
Place of Origin: Guangdong, China (Mainland)
Brand Name: HAIDA
Certification: CE,ISO
Model Number: HD-W821-2
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: ach set protected with resin fiber and PP film, then put into Strong wooden case with operation man
Delivery Time: 20 days after order confirmed
Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash, escrow
Supply Ability: 30 Sets per Month Haida
Detail Information
Power: Electronic Flame Height: 15.875mm
Time Display: 0-99.9s Resolution: 0.1s
Weight: 30kg Instrument Size: L550XW380XH560mm
Ignition Time: 0-99.0s Sample Size: 152.4x50.8mm
High Light:

HAIDA Flammability Testing Machine


ASTM D1230 Flammability Testing Machine


ASTM D1230 45 degree flammability tester

Product Description

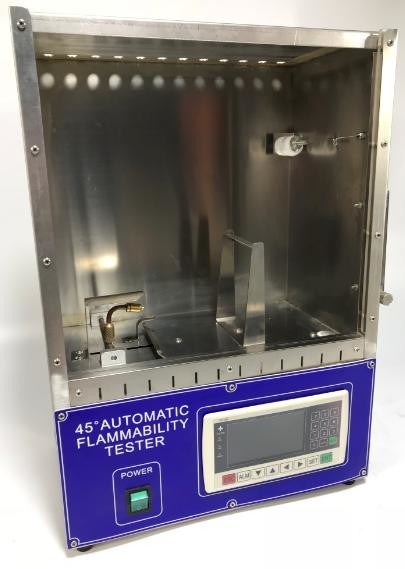

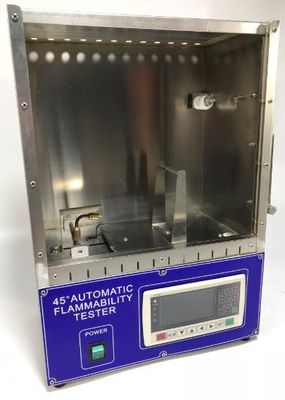

45°Flammability Tester For Face Mask Holder 45° Angle Ignition Time 0-99.0s







Flammability Tester is mainly composed of a control system and a combustion chamber. The sample is installed on a sample holder inclined at a 45° angle in the combustion chamber, and the burner is close to the sample. The sample is ignited with a flame for a specified time and then returned to observe the sample. The burning situation and the spreading speed of the flame on the sample, the ignitability and flame spreading performance of the sample are evaluated.




Test standard


ASTM D1230,CRF16-1610,CALIF TB 117




Technical parameters


Technical Index HD-W821-2
Sample size 152.4x50.8mm
Ignition time 0-99.0s
Inner frame size of sample holder 152x38mm
Distance from burner nozzle to sample surface 8mm
Flame height 15.875mm
Time display 0-99.9s
Resolution 0.1s
Weight 30kg
Combustion air supply device 1
Cotton sewing machine thread 1
Instrument size L550XW380XH560mm
