| Place of Origin: | Guangdong, China (Mainland) |
|---|---|
| Brand Name: | HAIDA |
| Certification: | CE,ISO |
| Model Number: | HD-W810-M |
| Minimum Order Quantity: | 1 Set |
| Price: | Negotiable |
| Packaging Details: | ach set protected with resin fiber and PP film, then put into Strong wooden case with operation man |
| Delivery Time: | 20 days after order confirmed |
| Payment Terms: | L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash, escrow |
| Supply Ability: | 30 Sets per Month Haida |
| Control Method: | LCD Touch Screen | Specimen Holders: | Meet With ISO 6941&ISO 15025 |
|---|---|---|---|
| Machine Size: | 410mm(W) X 900mm(H) X 380mm(D) | Weight: | Approx 36KG |
| INSTALLATION REQUIREMENTS: | Electrical: 230 Volts Nominal 10 Amps | Ambient Temperature: | Operating 25±5℃ |
| Highlight: | Textile Vertical Flammability Tester,LCD Touch Screen Vertical Flammability Tester,ISO 15025 Vertical Flammability Tester |
||

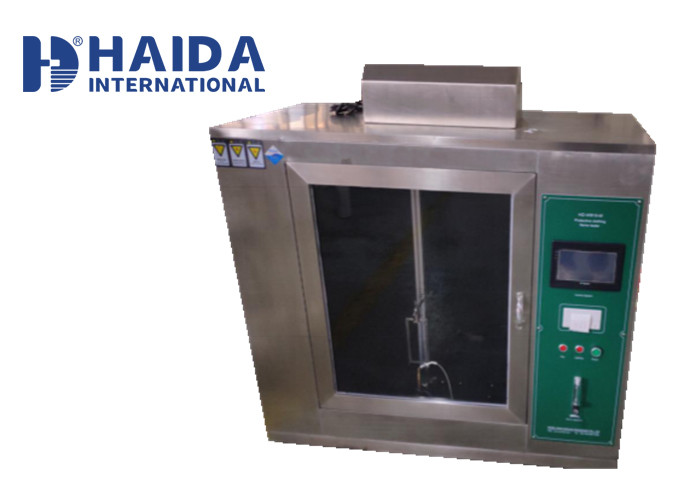

LCD Touch Screen Textile Horizontal Vertical Flame Test
Safety Fabric Vertical Flammability Testerg
INTRODUCTION
Vertical Flame Tester is suitable for the measurement of limited flame spread properties of Protective clothing.. A defined flame from a specified burner is applied for 10 s to the surface or the bottom edge of textile specimens which are vertically oriented.
FEATURE
The apparatus is designed and manufactured according to ISO 15025 standards.
The apparatus can be updated to meet the requirement of ISO6941, ISO 6940 etc by using different specimen holders.
The apparatus consists of mounting frame, gas burner, test specimen holder with Supporting pins.
The angle of the burner can be pre-setted and adjusted automatically.
Flame application time can be pre-setted and operate automatically.
After flame time and afterglow time recorded by LCD screen.
Test standard:
ISO 6941&ISO 15025
Standard parameter
| Control method | LCD touch screen |
| Specimen holders | Meet with ISO 6941&ISO 15025 |
| Machine size | 410mm(W) X 900mm(H) X 380mm(D) |
| Weight | Approx 36KG |
|
INSTALLATION REQUIREMENTS
|
Electrical: 230 volts Nominal 10 Amps Ambient Temperature: Operating 25±5℃ Gas Supplies: Propane and air compressed air |
Detail Pic
