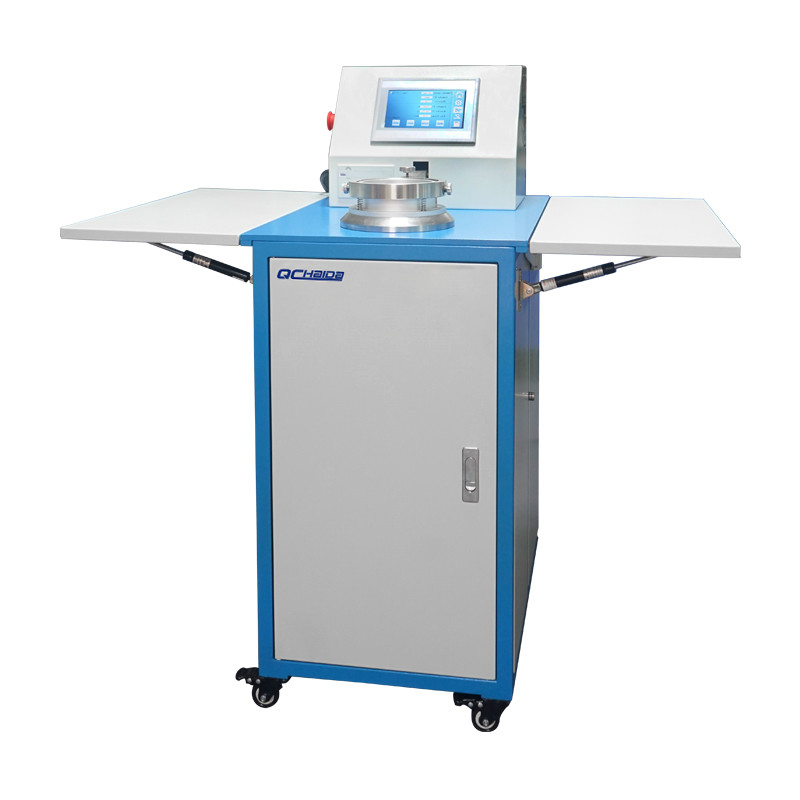

GB/T5453 Textile Testing Equipment 220V Air Permeability Electronic Tester

Basic Information
Place of Origin: Guangdong, China (Mainland)
Brand Name: HAIDA
Certification: CE,ISO
Model Number: HD-W810
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: ach set protected with resin fiber and PP film, then put into Strong wooden case with operation man
Delivery Time: 20 days after order confirmed
Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash, escrow
Supply Ability: 30 Sets per Month Haida
Detail Information
Power: Electronic Product Name: Air Permeability Tester
Net Weight: 75kg Package Dimensions: 780 X 620 X 1350 Mm
Color: As Is Shown In Use: Fabrics
High Light:

GB/T 5453 Textile Testing Equipment


12000mm/s Textile Testing Equipment


Air Permeability Electronic Tester

Product Description

GB/T5453 Air Permeability Electronic Tester ,Textile Testing Equipment 220V





Product Description


Air Permeability Tester is used to directly measure directly the air permeability (considered as the speed of the air flow passing vertically through a sample in specific set conditions) of woven and knitted fabrics, industrial and technical textiles, non-wovens , artificial leather, felts and paper.




Technical Parameter



Technical Index HD-W810
Measuring range 0.1~12,000 mm/s at 20 cm² test area.
Units of measure

mm/s, ft³/ft²/min, cm³/cm²/s, l/m²/s, l/dm²/min, m³/m²/min, m³/m²/h, dm³/s

Pa (pressure drop)

Measuring accuracy ≤ ± 2 %
Test pressure 1-4,000 Pa(Nozzle)
Test areas 20cm²& 38.5cm²(Standard accessories ),5cm²,50cm²,100 cm²(Optional)
Sample thickness ≤ 12mm
Package Dimensions 780 x 620 x 1350 mm
Power supply 220V, 50Hz or 110V, 60Hz
Net Weight 75kg





























air permeability tester






Product features


1. Touch screen control, Chinese and English menu, easy to operate.

2. Built-in thermal printer, convenient to quickly print test results on site.

3. Adopt high precision differential pressure sensor, high test accuracy and good repeatability.

4. The nozzle can be replaced according to the measurement range of each nozzle, with higher accuracy and efficiency.

5. Direct digital setting of test parameters, parameter units can be set according to needs.

6. The flow cylinder is made of seamless steel pipe welding, durable, and equipped with door cover and lock device, in order to ensure the convenient replacement of nozzlesAlso ensures good air tightness.

7. The sample fastening device is controlled by the cylinder, and the sample is automatically clamped to ensure the tightness of the sample clamp.
