| Place of Origin: | Guangdong, China (Mainland) |
|---|---|
| Brand Name: | HAIDA |
| Certification: | CE,ISO |
| Model Number: | HD-W810 |
| Minimum Order Quantity: | 1 Set |
| Price: | Negotiable |
| Packaging Details: | ach set protected with resin fiber and PP film, then put into Strong wooden case with operation man |
| Delivery Time: | 20 days after order confirmed |
| Payment Terms: | L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash, escrow |
| Supply Ability: | 30 Sets per Month Haida |
| Test Pressure: | 1-4,000 Pa(Nozzle) | Sample Thickness: | ≤ 12mm |
|---|---|---|---|
| Package Dimensions: | 780 X 620 X 1350 Mm | Power Supply: | 220V, 50Hz Or 110V, 60Hz |
| Measuring Range: | 0.1~12,000 Mm/s At 20 Cm² Test Area. | Test Areas: | 20cm²& 38.5cm²(Standard Accessories ),5cm²,50cm²,100 Cm²(Optional) |
| Highlight: | Air Permeability Tester,Textile Air Permeability Test,Textile Breathability Test |
||

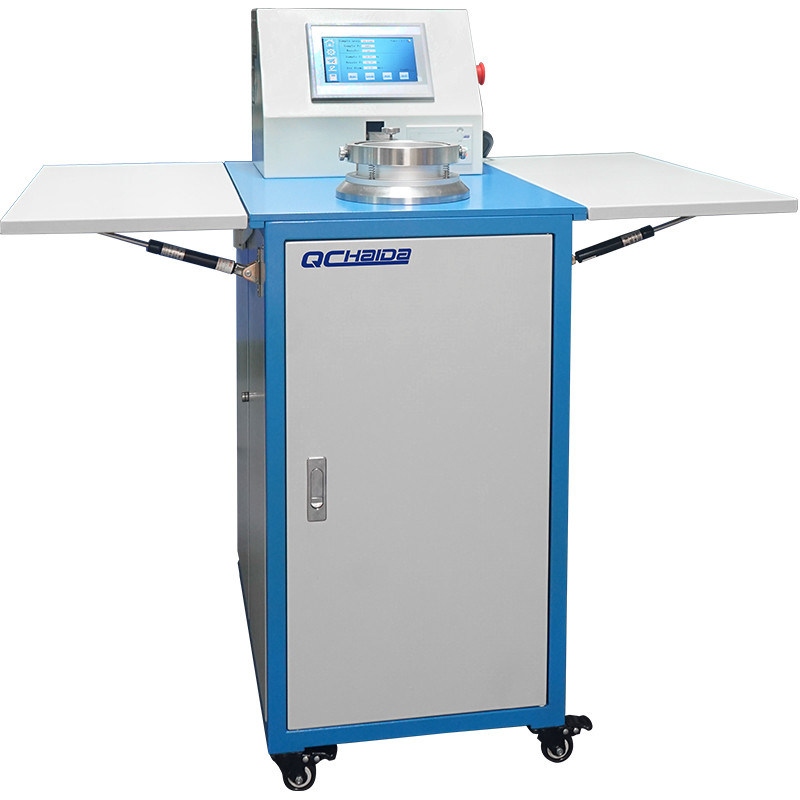

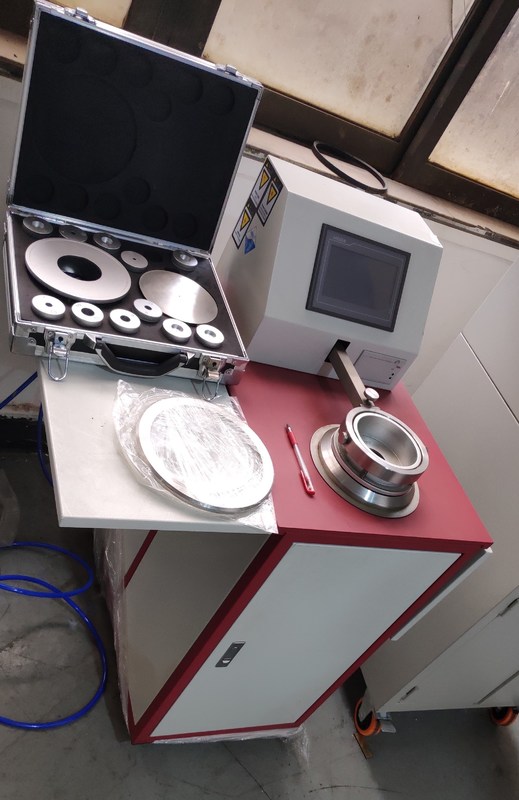

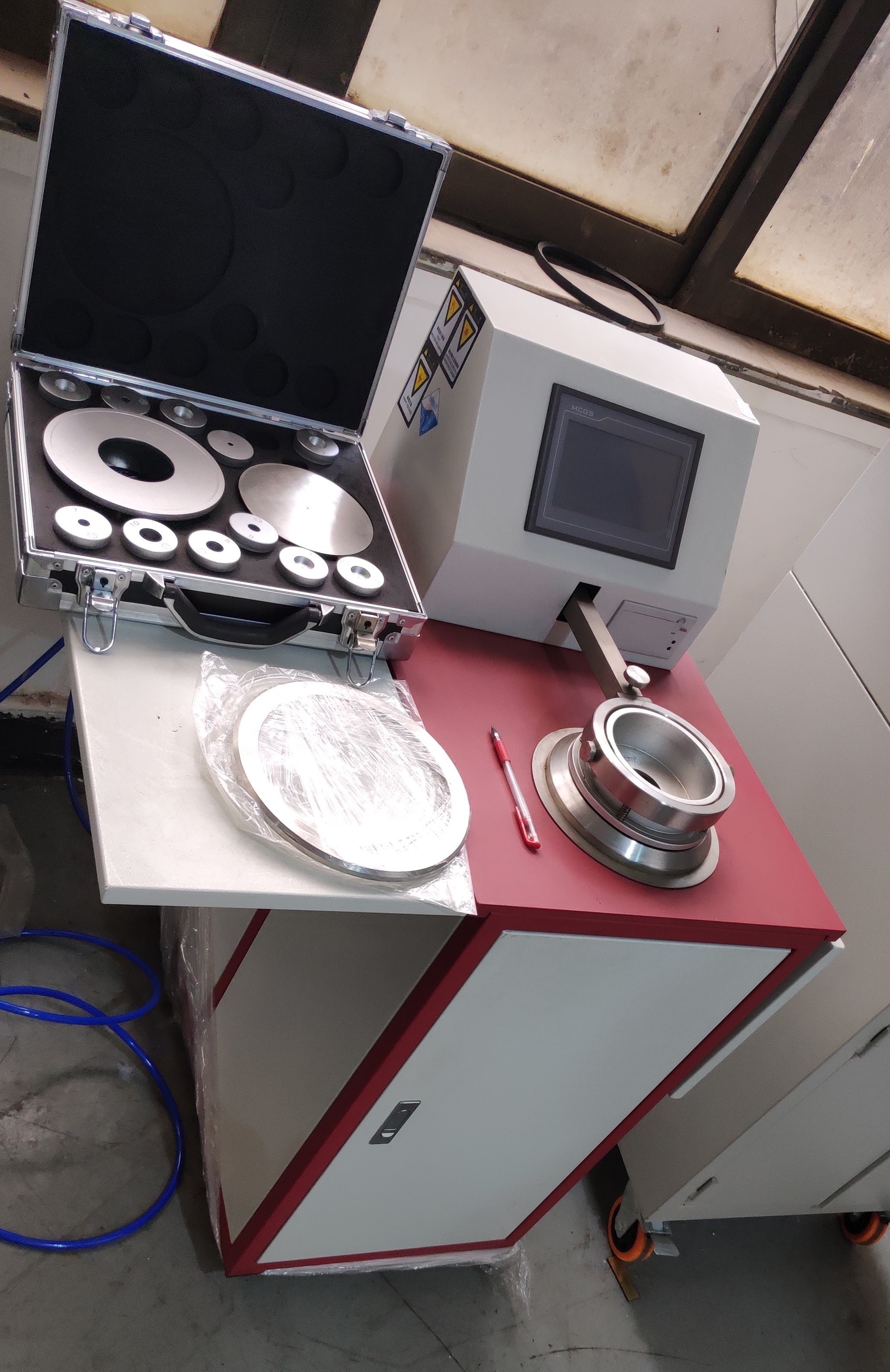

ASTM D737 Air Permeability Tester Fabric Performance Test Machine 4,000 Pa
Usage
Air Permeability Tester is to test the permeability of various textile fabrics, including industrial fabrics, nonwovens and other textile products and other breathable materials.
Test standard
ASTM D737 Standard Test Method for Air Permeability of Textile Fabrics
ISO 9237 Textiles - Determination of the Permeability of Fabrics to Air
BS 5636, DIN 53887, AFNOR G07-111, EDANA 140.1, ISO 7231, ISO 9073-15, JIS L1096-A
TAPPI T251, WSP 070.1.R3, EDANA 140.2-99
Technical parameters
| Technical Index | HD-W810 |
| Measuring range | 0.1~12,000 mm/s at 20 cm² test area. |
| Units of measure |
mm/s, ft³/ft²/min, cm³/cm²/s, l/m²/s, l/dm²/min, m³/m²/min, m³/m²/h, dm³/s Pa (pressure drop) |
| Measuring accuracy | ≤ ± 2 % |
| Test pressure | 1-4,000 Pa(Nozzle) |
| Test areas | 20cm²& 38.5cm²(Standard accessories ),5cm²,50cm²,100 cm²(Optional) |
| Sample thickness | ≤ 12mm |
| Package Dimensions | 780 x 620 x 1350 mm |
| Power supply | 220V, 50Hz or 110V, 60Hz |
| Net Weight | 75kg |
Our serives
1.Design & Production : Solution Consultation for each order
Recommend the most cost -performance machine
Research & Develop the suitable one for Special- designed Model.
2.Shipping & Delivery: One-Stop Service
Production- Deliver to your door - Installation & Training- Technical Support
3.Warranty
1 year warranty with lifetime technology support
4.After-Sale Service
React within 2 Hours
Video inspection & on-site service combined.
