| Place of Origin: | Guangdong, China (Mainland) |
|---|---|
| Brand Name: | HAIDA |
| Certification: | CE,ISO |
| Model Number: | HD-W810 |
| Minimum Order Quantity: | 1 Set |
| Price: | Negotiable |
| Packaging Details: | cach set protected with resin fiber and PP film, then put into Strong wooden case with operation man |
| Delivery Time: | 20 days after order confirmed |
| Payment Terms: | L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash, escrow |
| Supply Ability: | 30 Sets per Month Haida |
| Power Supply: | 220V, 50Hz Or 110V, 60Hz | Weight: | 75kg |
|---|---|---|---|
| Measuring Range: | 0.1-12,000 Mm/s At 20 Cm² Test Area. | Units Of Measure: | Mm/s, Ft³/ft²/min, Cm³/cm²/s, L/m²/s, L/dm²/min, M³/m²/min, M³/m²/h, Dm³/s Pa (pressure Drop) |
| Measuring Accuracy: | Better Than ± 2 % Of The Displayed Value. | Test Pressure: | 1-4,000 Pa |
| High Light: | Electronic Air Permeability Tester For Textiles,20cm2 Air Permeability Tester For Textiles,Artificial Leather Air Permeability Tester |
||

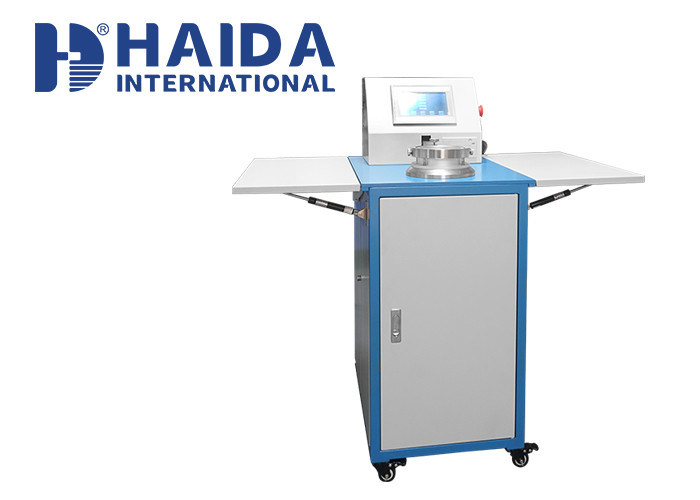

Textile Equipment Of Air Permeability Electronic Tester Permeability Tester

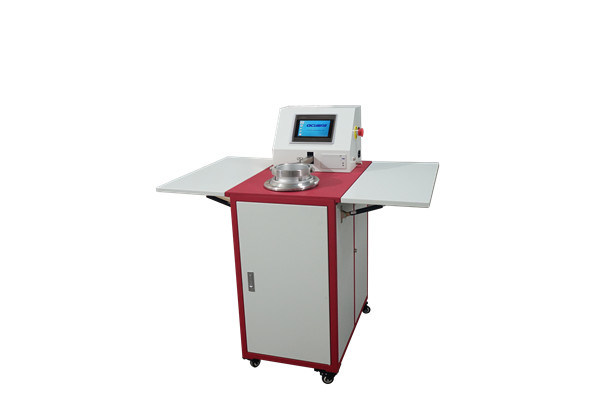

Product Description
The air permeability tester is used to measure the air permeability of machine fabrics and knitted fabrics, industrial and technical textiles, non-woven fabrics, artificial leather, felts (the speed at which the airflow passes through the sample vertically under specific conditions) and paper.
Test standard
ASTM D737 Standard Test Method for Air Permeability of Textile Fabrics
ISO 9237 Textiles - Determination of the Permeability of Fabrics to Air
BS 5636, DIN 53887, AFNOR G07-111, EDANA 140.1, ISO 7231, ISO 9073-15, JIS L1096-A
TAPPI T251, WSP 070.1.R3, EDANA 140.2-99
Standard features
| Measuring range | 0.1-12,000 mm/s at 20 cm² test area. |
| Units of measure |
mm/s, ft³/ft²/min, cm³/cm²/s, l/m²/s, l/dm²/min, m³/m²/min, m³/m²/h, dm³/s Pa (pressure drop) |
| Measuring accuracy | better than ± 2 % of the displayed value. |
| Test pressure | 1-4,000 Pa |
| Test areas | 5, 20, 25, 38.5 and 100 cm² |
| Sample thickness | 0 ... 12mm |
| Dimensions | 1070 x 670 x 1080 mm |
| Power supply | 220V, 50Hz or 110V, 60Hz |
| Weight | 75kg |
Standard:
GB/T5453,ISO9237,ISO7231,ISO5636,ASTMD737,DIN53887,JISL1096,GB/T24218.15
Features
1. Touch screen control, Chinese and English menus, easy to operate.
2. Built-in thermal printer, convenient for quick printing of test results on site.
3. Using high-precision differential pressure sensor, the test accuracy is high, and the repeatability is good.
4. The nozzle can be replaced according to the measuring range of each nozzle, with higher accuracy and efficiency.
5. The test parameters are directly set digitally, and the parameter unit can be set according to needs.
6. The flow tube is welded by seamless steel pipes, which is durable, and is equipped with a door cover and a locking device to ensure easy nozzle replacement and good air tightness.
7. The sample fastening device is controlled by an air cylinder to automatically clamp the sample to ensure the tightness of the sample clamp.
