| Place of Origin: | Guangdong, China (Mainland) |
|---|---|
| Brand Name: | HAIDA |
| Certification: | CE,ISO |
| Model Number: | HD-W810 |
| Minimum Order Quantity: | 1 Set |
| Price: | Negotiable |
| Packaging Details: | ach set protected with resin fiber and PP film, then put into Strong wooden case with operation man |
| Delivery Time: | 20 days after order confirmed |
| Payment Terms: | L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash, escrow |
| Supply Ability: | 30 Sets per Month Haida |
| Air Flow: | 0.1~12,000 Mm/s At 20 Cm² Test Area. | Test Units: | Mm / S, M3 / M2.min, Cm3 / Cm2.s, M3 / M2.h, Cfm, L / Dm2.min, L / M2.s, |
|---|---|---|---|
| Measuring Accuracy: | ≤ ± 2 % | Test Pressure: | 1-4,000 Pa(Nozzle), 1~1000Pa(Sample) |
| Test Areas: | 5, 20, 25,38 ,50 And 100 Cm2 | Sample Thickness: | ≤ 12mm |
| DimPower Supplyensions: | 1080 X 670 X 1080 Mm | Power Supply: | AC 220V 50Hz 1200W |
| High Light: | High Precision Fabric Air Permeability Tester,Computerization Fabric Air Permeability Tester |
||

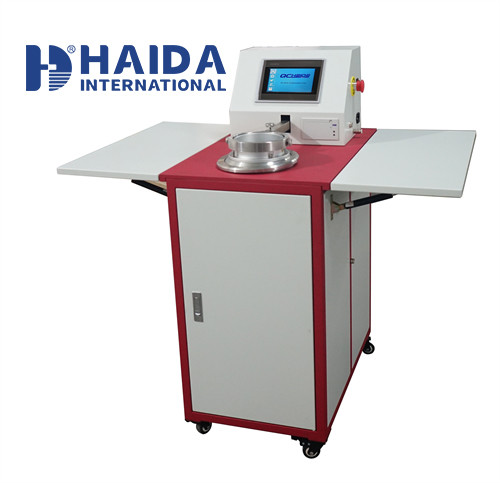

High Precision Computerization Textile Breathability Test Fabric Air Permeability Tester
Breathability is a very important performance in textile clothes.
For apparel, air permeability property is a major method to assess the comfort of garment.
Widely used and High-efficiency
The instrument is suitable to test most of fabric including woven, nonwoven, knitted fabrics, blanket, medical and hygiene textiles, geotextiles, transport textiles, protective and safety textiles, packaging textiles and other breathable textiles.
In market, consumer satisfaction requires garment manufacturers to provide high-quality products. Haida offer the most accurate and reliable air permeability tester which ensure efficient and strict control of the production process on quality compliance of raw materials.
Feature
Chinese and English double-select operation menu
Bilingual operating system to meet the needs of a wide range of users. Fresh and concise operating system make it easy to operate.
Convenient table and arm
The long arm and large table of the air permeability allow large samples to be evaluated in multiple ares without cutting.
Pressing g the arm against the sample begins the test and unclamping the arm ends it.
Qualified air tightness

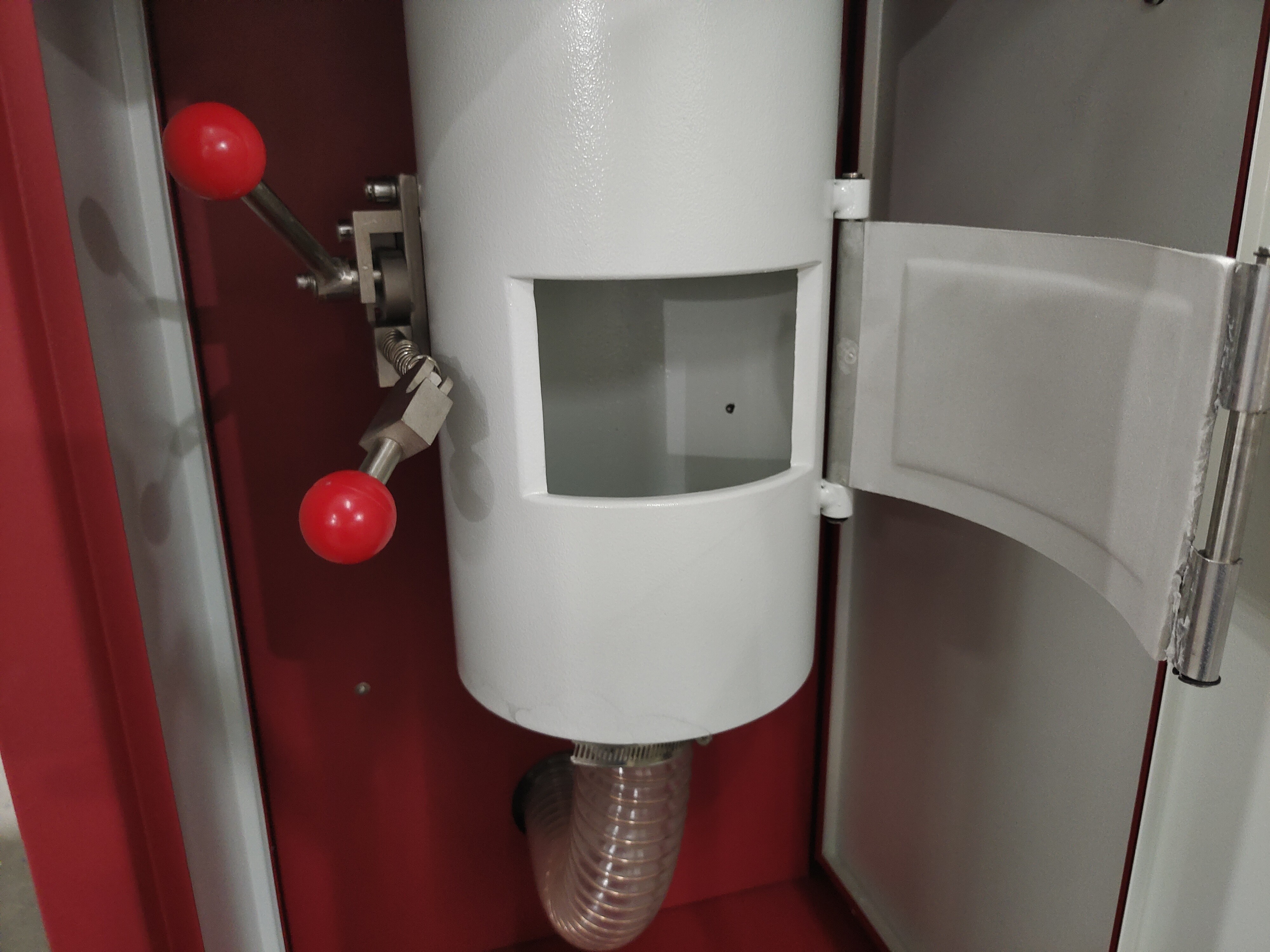

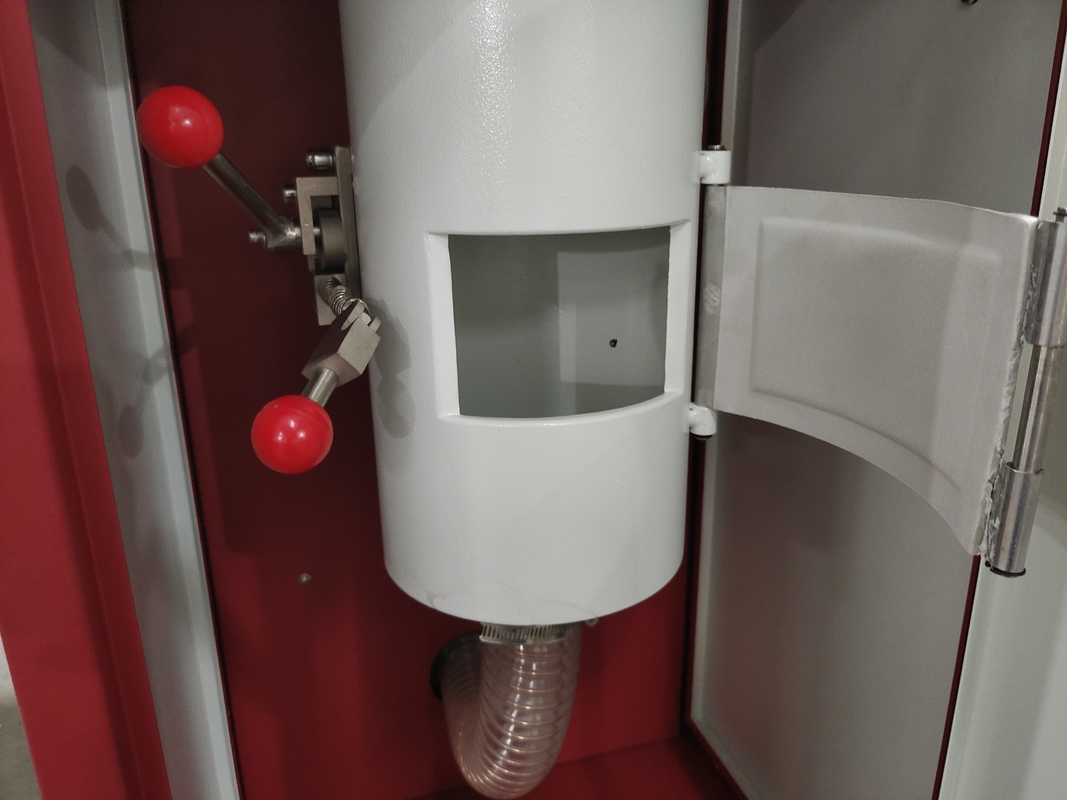

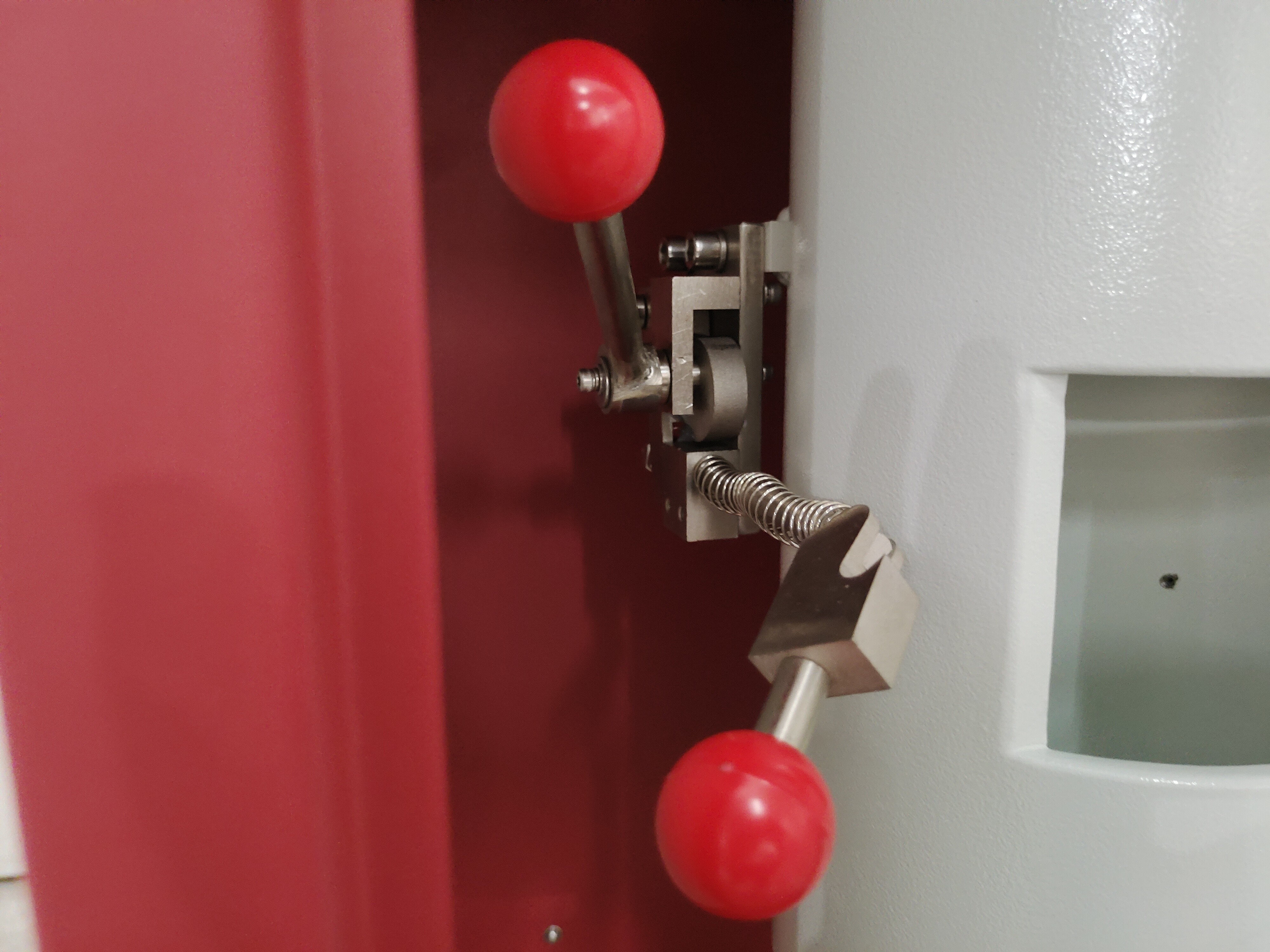

The flow cylinder is welded with seamless steel pipe, which is durable and has a door cover and door lock device, which ensures good air tightness when replacing the nozzle.
Qualified air tightness
The flow cylinder is welded with seamless steel pipe, which is durable and has a door cover and door lock device, which ensures good air tightness when replacing the nozzle.
Mobility and compact design
Heavy-duty casters and a self contained design make the air permeability easy to transport from the laboratory to the production floor for on site testing or off site storage
Standard selection
Specification
Accessories supplied with the instrument
1. Main Unit: 01 No.

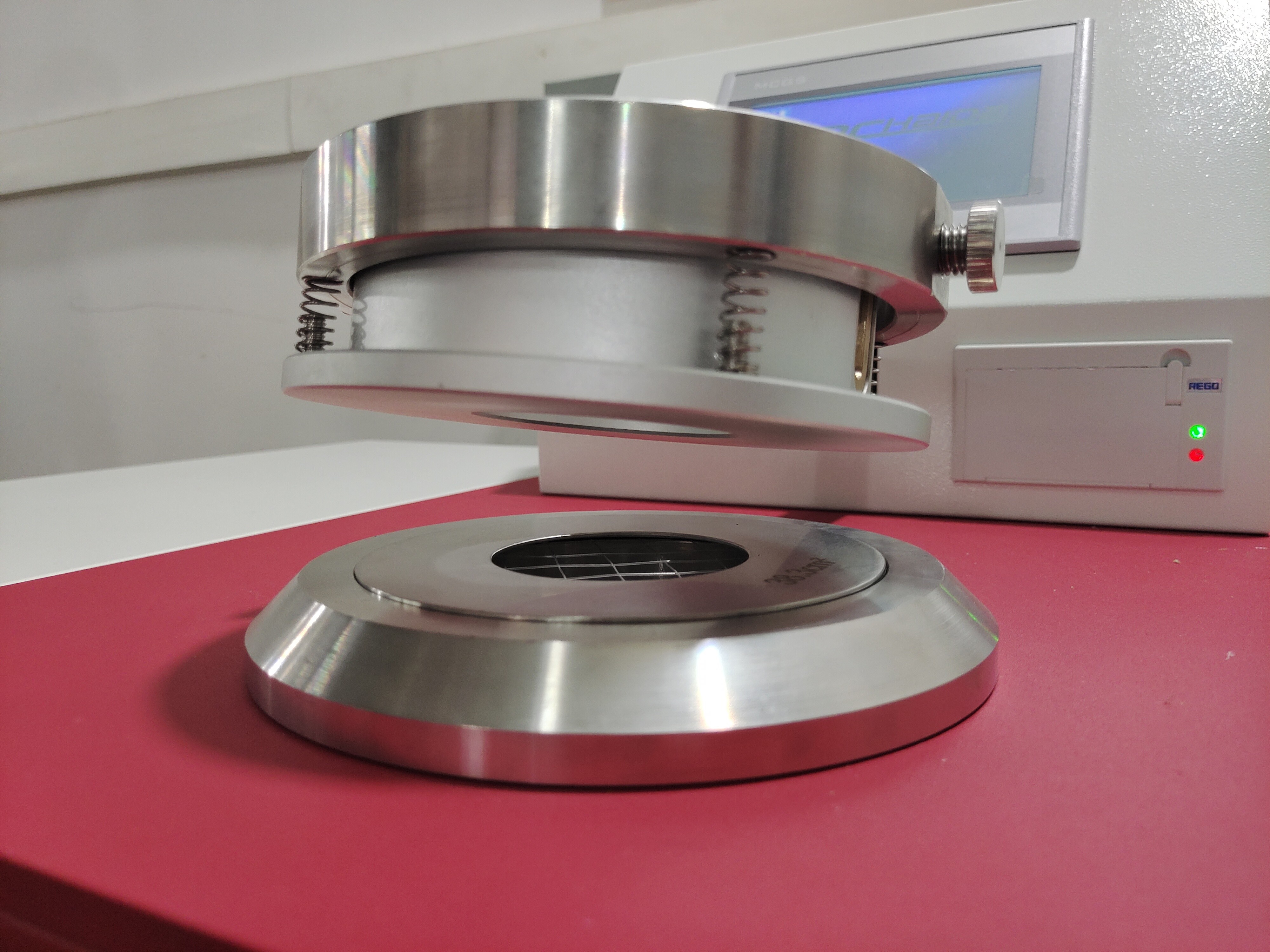

2. Test Heads: 02 Nos.
20 cm2 for DIN 53887, EN ISO 9237, WSP 70.1
38 cm2 for ASTM D 737, JIS L 1096-A, TAPPI T 251, WSP 70.1
3. Air Permeability Tester lab-cloud: 01 No.
4. Calibration Check Plate: 02 Nos. (ΦO=7.8 and ΦO= 21.6)
5. O-Ring for Air Seal: 01 No. (pack of 5)
6. Nozzle: 11 Nos.
7. Power Cord: 01 No.
8. This User’s Manual:01 No.
9. Calibration Certificate: 01 No.
Nozzle
