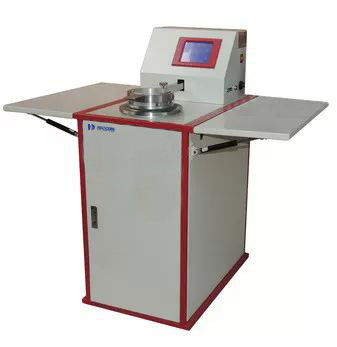

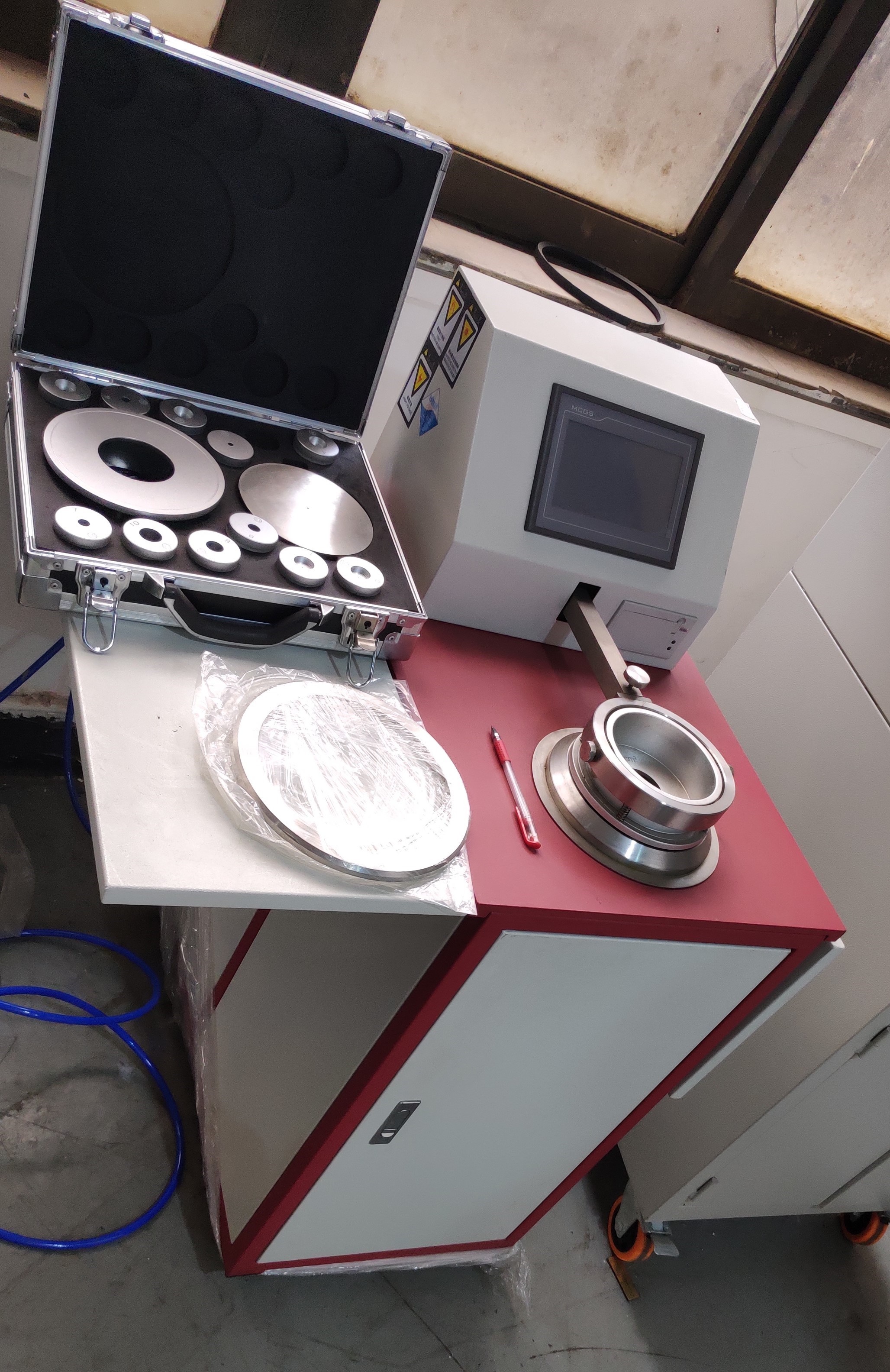

220V Face Mask Differential Pressure Tester Experimental Area 4.9cm2 5.06cm2

Basic Information
Place of Origin: Guangdong, China (Mainland)
Brand Name: HAIDA
Certification: CE,ISO
Model Number: HD-W810-2
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: ach set protected with resin fiber and PP film, then put into Strong wooden case with operation man
Delivery Time: 20 days after order confirmed
Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash, escrow
Supply Ability: 30 Sets per Month Haida
Detail Information
Power: Electronic Measuring Range: 0-2000Pa, Accuracy: 1Pa
Flowmeter Range: 0-10L/min, Accuracy: 3%± Dimensions: 460 X 500 X 670 Mm
Power Supply: 220V, 50Hz,300W Use: Mask
High Light:

5.06cm2 Face Mask Differential Pressure Tester


300W Face Mask Differential Pressure Tester

Product Description

220V Face Mask Differential Pressure Tester Experimental Area 4.9cm²,5.06cm²




Test standard


YY 0469-2011,Y/T 0969-2013,EN14683:2019





Face Mask Differential Pressure Tester used to measure the pressure difference index of medical surgical masks under specified conditions.



Technical parameters


Technical Index HD-W810-2
Measuring range 0-2000Pa, accuracy: 1Pa
Flowmeter range 0-10L/min, accuracy: 3%±
Exhaust volume of air pump 8L/min (1-100L/min adjustable)
Experimental area 4.9cm²,5.06cm²
Dimensions 460 x 500 x 670 mm
Power supply 220V, 50Hz,300W
Weight 25kg














Features and Advantages


1. HD color touch screen.

2. High precision imported digital differential pressure gauge.

3. High-precision imported flowmeter with high flow control accuracy.







        Air permeability tester                Air permeability tester
