Programmable Lab Constant Temperature & Humidity Control Cabinet Environmental Climate Chamber Equipment for fabric

Brand Name:	Haida
MOQ:	1
Price:	AED 14,210.19-16,827.85

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong, China

Power:

5.5kw

Voltage:

380 V

Capacity:

60L/100L/150L/225L/408L/1000L

Humidity Range:

20~98%R.H

Temperature Range:

-20℃,-40℃,-60℃,-70℃~+150℃

Internal Dimensions:

400*500*500mm

External Dimensions:

700*1400*1100mm

Temperature Fluctuation:

±0.5℃

Temperature Uniformity:

≤1.5℃

Humidity Fluctuation:

≤±2.5%RH

Humidity Uniformity:

3%RH

Cooling Speed:

1℃/min

Heating Speed:

3℃/min

Internal Material:

SUS#304 Stainless Steel

External Material:

Stainless Steel

Highlight:

programmable lab humidity control cabinet

environmental climate chamber for fabric

constant temperature test chamber equipment

Product Description

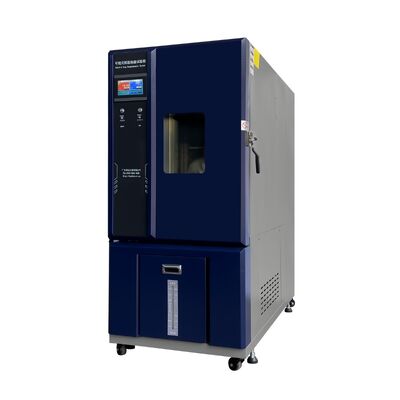

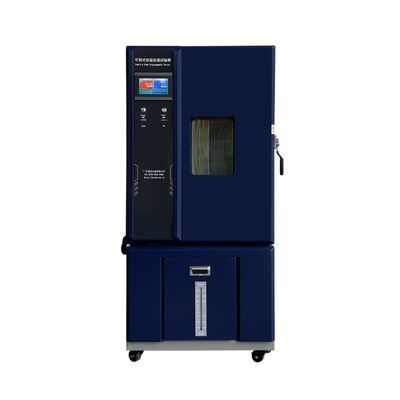

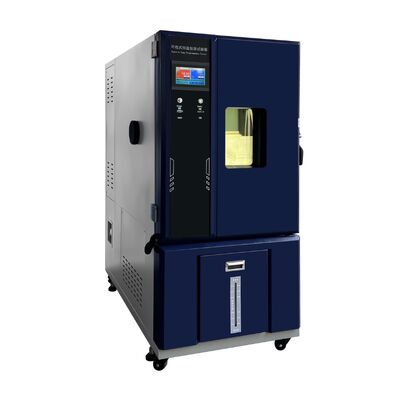

HD-E702 Programmable Temperature & Humidity Test Chamber

The HD-E702 Temperature and Humidity Test Chamber is designed to evaluate material performance under various environmental conditions, testing heat resistance, cold resistance, dry resistance, and humidity resistance. Ideal for quality testing across multiple industries including electronics, electrical appliances, mobile phones, communications, instruments, vehicles, plastic products, metals, food, chemicals, building materials, medical care, and aerospace.

Technical Specifications

Model Dimensions

Model	Internal Dimension (W×H×D)	External Dimension (W×H×D)
HD-E702-100	400×500×500mm	700×1400×1100mm
HD-E702-150	500×500×600mm	800×1500×1100mm
HD-E702-225	500×750×600mm	800×1670×1200mm
HD-E702-408	600×850×800mm	900×1770×1400mm
HD-E702-1000	1000×1000×800mm	1550×2100×1400mm

Internal Dimensions

400×500×500mm (W×D×H)

External Dimensions

700×1400×1100mm (W×D×H)

Temperature Range

-20℃, -40℃, -60℃, -70℃ to +150℃

Temperature Fluctuation

±0.5℃

Temperature Uniformity

≤1.5℃

Humidity Range

20-98% RH

Humidity Fluctuation

≤±2.5% RH

Humidity Uniformity

3% RH

Cooling Speed

1℃/min average (without loading)

Heating Speed

3℃/min average (without loading)

Internal Chamber Material

SUS#304 stainless steel, mirror finished

External Chamber Material

Stainless steel

Cooling Method

Air cooling

Controller

LCD touch screen, programmable control for temperature and humidity with cyclic test parameters

Insulation Material

50mm high density rigid Polyurethane foam

Heater

Explosion-proof type SUS#304 stainless steel fins radiator pipe heater

Compressor

France Tecumseh compressor x 2 sets

Lighting

Heat resistance

Temperature Sensor

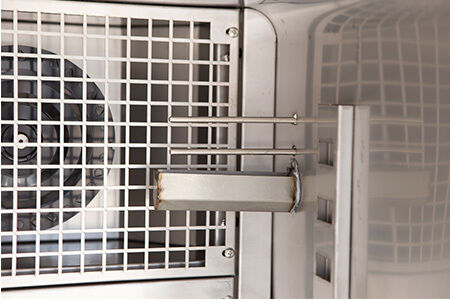

PT-100 dry and wet bulb sensor

Observation Window

Tempered glass

Testing Hole

Diameter 50mm, for cable routing

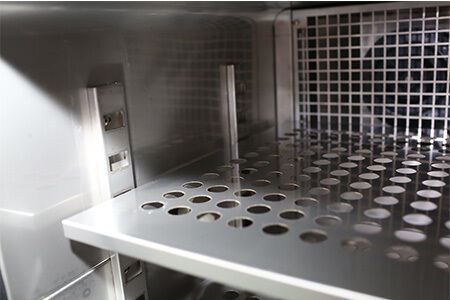

Sample Tray

SUS#304 stainless steel, 2 pieces

Safety Protection Features

Leakage protection
Over-temperature protection
Compressor overvoltage and overload protection
Heater short circuit protection
Water shortage protection

Test Chamber Applications

Simulate test environments with different temperature and humidity conditions
Cyclic testing including climatic conditions: holding test, cooling-off test, heating-up test, moistening test, and drying test
Cable port with flexible silicone plug for cable routing to test units under operation
Uncover test unit weaknesses in short-term tests with accelerated time effect

Design Features

High performance and quiet operation (68 dBA)
Space-saving design for flush installation to wall
Full thermal break around door-frame
One 50mm diameter cable port with flexible silicone plug
Accurate wet/dry-bulb humidity measurement system for easy maintenance

Programmable Controller Features

PLC controller for test chamber operation
Step types include: ramp, soak, jump, auto-start, and end
RS-232 interface for computer connectivity and data output

Manufacturer Profile

Professional manufacturer of environmental test equipment with expertise in climate simulation chambers for industrial and research applications.
