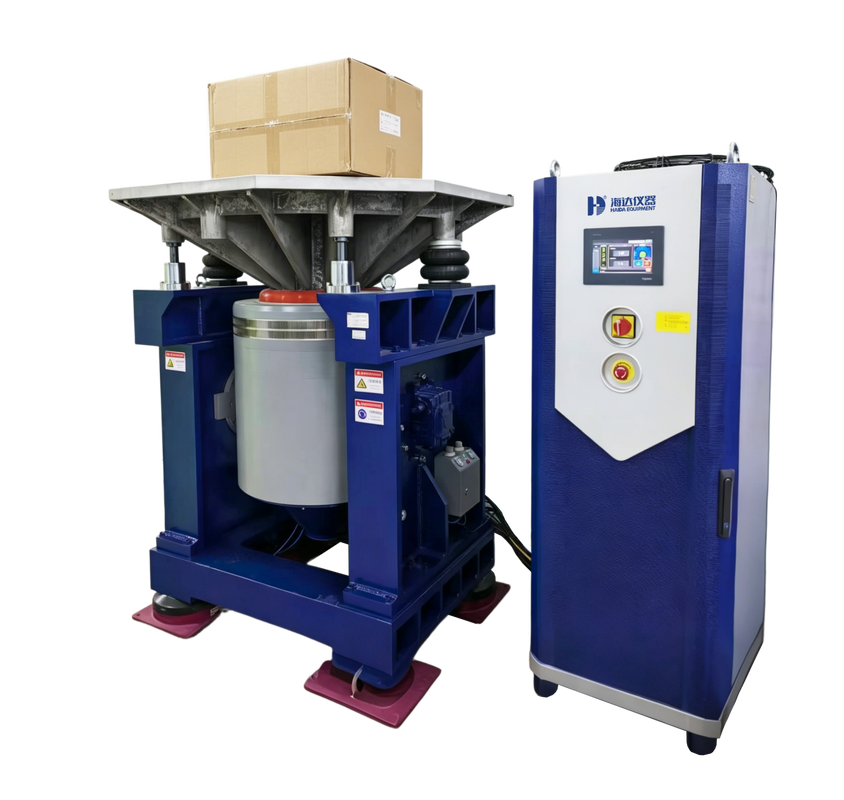

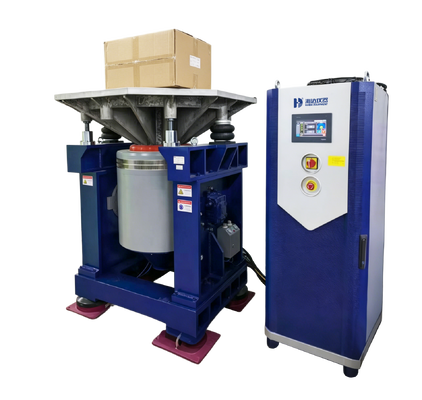

EQUIPMENT DETAILS OF HD-Snake-A30V ELECTRO-DYNAMATIC VERTICAL SHAKER

Name: EQUIPMENT DETAILS OF HD-Snake-A30V ELECTRO-DYNAMATIC VERTICAL SHAKER
Brand: Haida Equipment Co., Ltd
SKU: HD-Snake-A30V
Price: 4.00 USD
Availability: InStock

Brand Name:	Haida
Model Number:	HD-Snake-A30V
MOQ:	1
Price:	€4,182.07-5,142.87

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong, China

Internal Dimension:

600*600*600mm

External Dimension:

1100*900*1650mm

Test Sample Size:

300*300*50mm

Chamber Material:

SUS#304 Stainless Steel

Mesh Hole Size:

75um

Mesh Wire Diameter:

50um

Talcum Powder Amount:

2kg/m³

Airflow Speed:

No More Than 2m/s

Vacuum Pump Capacity:

60-600 L/H

Door Type:

Left Open Door With Tempered Glass

Power Supply:

AC380V, 50/60Hz, Three Phase

Fan Type:

Centrifugal Fan

Controller Type:

PLC Touch Screen

Cycle Time:

Adjustable

Test Time:

0s ~99m99s

Highlight:

EQUIPMENT DETAILS ELECTRO-DYNAMATIC VERTICAL SHAKER

HD-Snake-A30V ELECTRO-DYNAMATIC VERTICAL SHAKER

Product Description

Item		Description
Force (Maximum)	Sine	30 kN
	Random	30 kN
	Shock	60 kN
Frequency Range		1～2600 Hz
Max. Displacement		(Peak to Peak)100mm
Max. Velocity		2m/s
Max. Acceleration (Without load)		980 m/s2(100g)
Vibration direction		Vertical
Armature Diameter		Ф340 mm
Effective Armature Mass		30kg
Dimension		1200* 800 *1560mm
Weight		3500kg (Slip Table is excluded)
Power supply		AC 3-phase 380V/50Hz
Fixtures (1 Set)		Supplied by the manufacturer.
