products details

Created with Pixso. Home Created with Pixso. Products Created with Pixso.
Environmental Test Chamber
Created with Pixso.

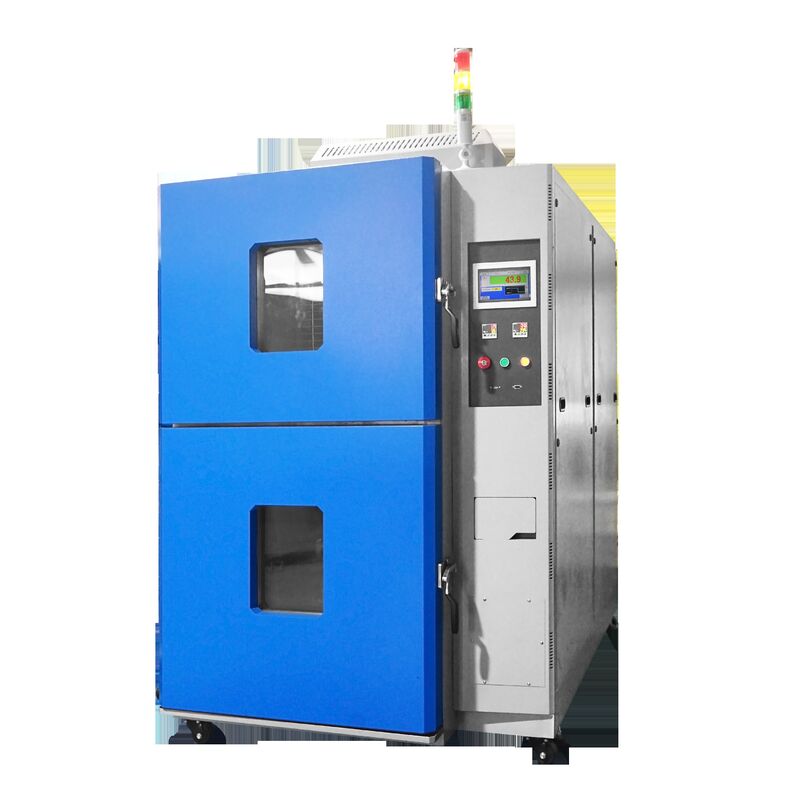

High Low Temperature Shock Tester test Machine

High Low Temperature Shock Tester test Machine

High Low Temperature Shock Tester test Machine

Brand Name: HaiDa
Model Number: HD-E703
MOQ: 1
Price: $899-4,389
Detail Information
Product Description
Detail Information
Place of Origin:
Guangdong, China
Certification:
CE,ISO
Internal Dimensions:
400*500*500mm
External Dimensions:
600*1080*1380mm
Working Capacity:
100 Liter
Internal Material:
SUS#304 Stainless Steel, Mirror Finished
External Material:
Stainless Steel With Paint Spray
Temperature Range:
-70℃~+150℃
Temperature Fluctuation:
±1C
Humidity Range:
10%~98%RH
Humidity Fluctuation:
±2.5%RH
Humidity Uniformity:
3%RH
Sample Tray:
SUS#304 Stainless Steel, 2pcs
Observation Window:
Tempered Glass: 250*300mm
Testing Hole:
Diameter 50mm
Power Supply:
Three-phase, 380V, 50Hz
Temperature Rate:
Less Than 20C/min
Highlight:

high low temperature shock tester

,

environmental test chamber machine

,

temperature shock test equipment

Product Description
High Low Temperature Shock Tester Test Machine
Product Overview
This temperature shock test chamber is designed for specimen testing requiring rapid temperature changes, evaluating thermal mechanical property failures with temperature rates up to 20°C/min to simulate real application environments.
Testing Standards
Complies with IEC60068-2-14 standards for temperature change with specified rate of change.
Technical Specifications
Item Specification
Internal dimension (W*D*H) 400*500*500mm
External dimension (W*D*H) 600*1080*1380mm
Working capacity 100 liter
Internal chamber material SUS#304 stainless steel, mirror finished
External chamber material Stainless steel with paint spray
Temperature range -70℃~+150℃
Temperature fluctuation ±1℃
Humidity range 10%~98%RH
Humidity fluctuation ±2.5%RH
Humidity uniformity 3%RH
Sample tray SUS#304 stainless steel, 2pcs
Observation window Tempered glass: 250*300mm
Testing hole Diameter 50mm, for cable routing
Power supply source Three-phase, 380V, 50Hz
Safety protection device Protection for leakage, Over-temperature, Compressor over-voltage and overload, Heater short circuit
Applications
  • Simulate test environments with different temperature and humidity conditions
  • Cyclic testing including climatic conditions: holding test, cooling-off test, heating-up test, and drying test
Design Features
  • Cable ports provided on the left side for easy wiring of specimens
  • Door equipped with hinges preventing auto-closing
  • Designed to comply with major environmental test standards (IEC, JEDEC, SAE)
  • Safety tested with CE certification
High Low Temperature Shock Tester test Machine 0
Company Information
HAIDA INTERNATIONAL is a professional manufacturer of testing equipment with over 15 years of experience. Our products serve various industries including paper products, packaging, ink printing, adhesive tapes, footwear, leather products, electronics, plastic and rubber products, and are used by scientific research units, quality inspection institutions, and academic fields.
High Low Temperature Shock Tester test Machine 1
Quality Control
High Low Temperature Shock Tester test Machine 2
Our Services
Equipment Service
We provide comprehensive support including operation videos, English operation manuals, and video conferencing. Response within 48 hours and solutions within 3 working days.
Onsite Services
  • Device installation
  • Equipment operation test technology training
  • Equipment calibration
  • Daily maintenance and equipment upkeep
Additional Support
  • Free technical training for visiting factories
  • 24-hour online contact
  • Free software upgrades
  • Comprehensive documentation including product instructions, operation videos, and test applications
Problem Resolution
  • Social media 24-hour online communication
  • Seamless email support
  • Video conferencing
  • Onsite technical service
High Low Temperature Shock Tester test Machine 3
Why Choose HAIDA?
  • Considerate Service: Different country plugs, manual voltage change from 110V to 220V, insurance indicator
  • Excellent After-Sales Service: 12-month warranty, free controller repairs, free replacement parts, operation videos, English manuals, and video conferencing support
Please feel FREE to contact us for any needs. Visit our OFFICIAL WEBSITE at:
www.haidatestequipment.com
For more information, please leave a message below and click "CONTACT SUPPLIER"
Thank you for your time and attention!
