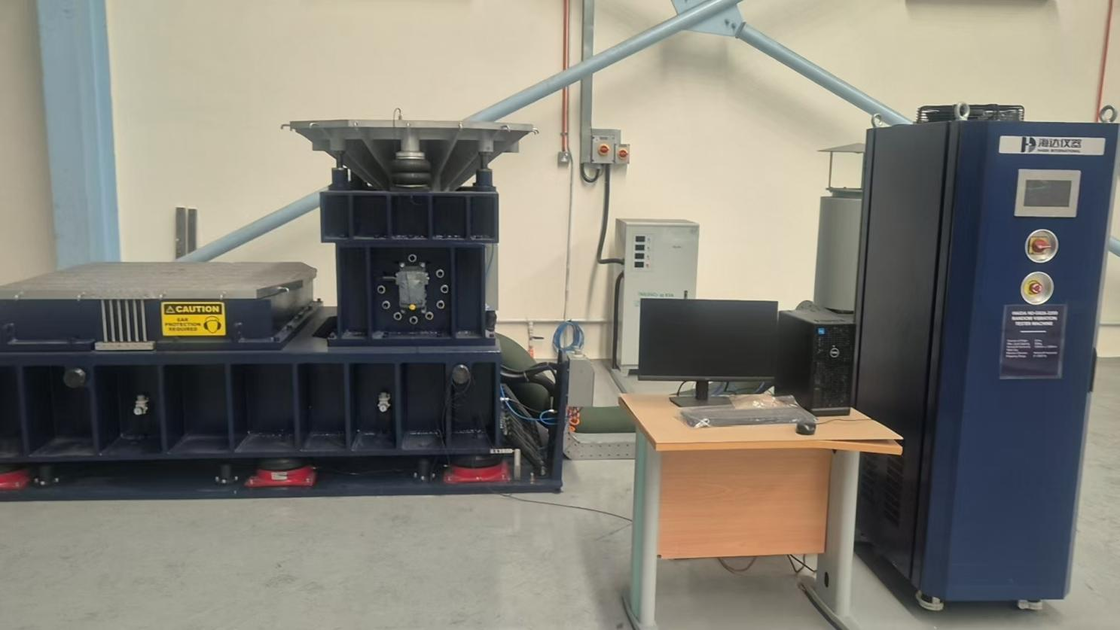

ELECTRO-DYNAMIC RANDOM VIBRATION TEST MACHINE

Detail Information

Place of Origin:

Guangdong, China

Internal Dimension:

600*600*600mm

External Dimension:

1100*900*1650mm

Test Sample Size:

300*300*50mm

Chamber Material:

SUS#304 Stainless Steel

Mesh Hole Size:

75um

Mesh Wire Diameter:

50um

Talcum Powder Amount:

2kg/m³

Airflow Speed:

No More Than 2m/s

Vacuum Pump Capacity:

60-600 L/H

Door Type:

Left Open Door With Tempered Glass

Power Supply:

AC380V, 50/60Hz, Three Phase

Fan Type:

Centrifugal Fan

Controller Type:

PLC Touch Screen

Cycle Time:

Adjustable

Test Time:

0s ~99m99s

Highlight:

Product Description

Item		Description
Force (Maximum)	Sine	3000Kg.f peak
	Random	3000Kg.f r.ms
	Shock	6000Kg.f peak
Frequency Range		1~2600 Hz
Max. Displacement		100mm (Peak to Peak)
Max. Velocity		2.2m/s
Max. Acceleration		100G (980 m/s²)
Vibration Direction		Horizontal & Vertical
Armature Diameter		Ф340 mm
Effective Armature Mass		30kg
Approx. Dimension		3100mm×1700mm×1260mm (Head Expander is excluded in this dimension, calculated individually )
Approx. Weight		5000kg (Head Expander is excluded in this dimension, calculated individually )
Power Supply		AC 3-phase 380V, 50/60Hz 58KW (can be adjusted as per Brazil requirement)
Air Source Required		0.6Mpa (User-supplied)
Individual grounding wire		<4Ω
Work Ambient Temperature		0–40℃;
Work Relative Humidity		0–90%, non-condensing.
Cable		6m (Can be adapted to the site)
