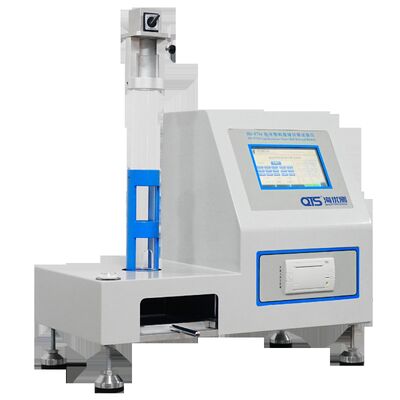

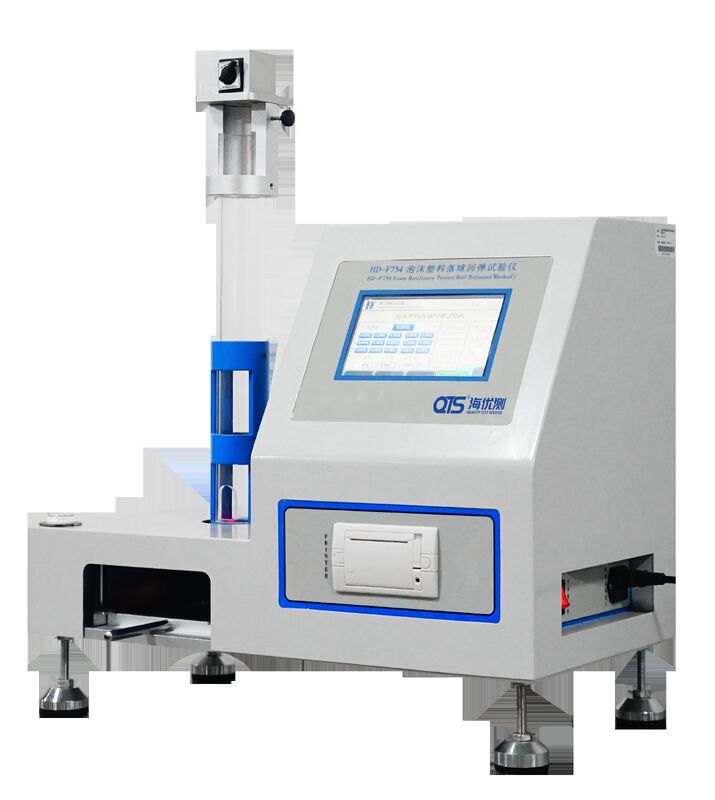

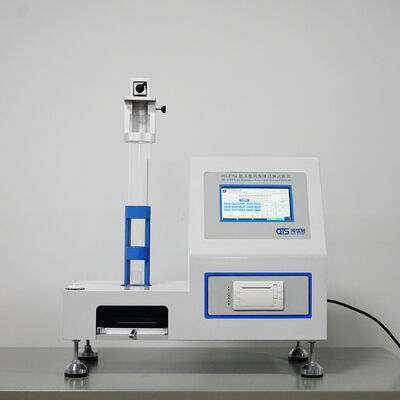

Touch Screen Control ISO 8307 Electronic Foam Ball Rebound Fatigue Tester

Brand Name:	Haida
Model Number:	HD-F754
MOQ:	1
Price:	$1,800-2,100

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong, China

Ball Diameter:

16 ± 0.05 Mm

Ball Mass:

16.8g ± 1.5 G

Drop Height:

500±0.5%mm

Rebound Rate Accuracy:

<0.5%

Sample Size:

100 Mm × 100 Mm × 50 Mm

Machine Dimensions:

575 × 305 × 630 Mm

Power Consumption:

0.1 KW

Display Type:

LCD Touch Screen

Sensor Type:

Optical Fiber Sensor

Test Results:

Rebound Height, Rebound Rate, Average Rebound Rate

Test Standard:

ASTM D3574, ISO 8307

Ball Drop Distance:

460 ± 0.5%mm (GB), 500 ± 0.5%mm (American Standard)

Output Method:

Built-in Printer

Control Type:

Microprocessor

Measurement Accuracy:

<1.5%

Highlight:

ISO 8307 foam ball tester

electronic rebound fatigue tester

touch screen foam testing equipment

Product Description

Touch Screen Control ISO 8307 Electronic Foam Ball Rebound Fatigue Tester

Product Overview

The Foam Drop Ball Rebound Tester complies with ASTM D3574 and ISO 8307 test standards, as well as Japanese urethane foam SESN 3296 specifications for automotive seat cushion testing. This precision instrument is specifically designed for measuring the falling ball rebound performance of flexible polyurethane foam materials.

Testing Principle

The instrument utilizes a steel ball with specified diameter and mass that freely falls onto the foam sample from a predetermined height. It calculates the maximum rebound height of the steel ball and determines the percentage ratio between rebound height and drop height, known as the rebound rate. This rebound rate accurately represents the foam's rebound performance characteristics.

Key Features

Microprocessor-controlled operation for precise measurements
LCD touch screen interface with Chinese language display
Built-in printer for immediate test data output
Advanced optical fiber sensor technology
Safe, reliable operation with high measurement accuracy

Technical Specifications

Parameter	Specification
Drop Height	500±0.5% mm
Drop Ball	Diameter: ￠16±0.05 mm, Mass: 16.8g ± 1.5 g
Accuracy	<1.5%
Display	LCD Touch Screen Interface
Sensor	Optical Fiber Sensor
Test Results	Rebound height, rebound rate, and average rebound rate after 5 test cycles
Sample Size (L×W×H)	100 mm × 100 mm × 50 mm
Machine Dimensions (L×W×H)	575 × 305 × 630 mm
Test Results Output	Built-in Printer
Power Consumption	0.1 KW

Standard Configuration

Items	Details
Documents	Operation Manual ×1 piece Factory Inspection Report ×1 piece Operation Video in USB flash disk with machine ×1 piece
Power Line	1 piece
Plug	1 piece (Per your local plug standard)
Optical Fiber Ranging Sensor	1 Set
Micro-Printer	1 Set
Touch Screen	1 piece
PLC	1 piece
Electrical Accessories	1 Set

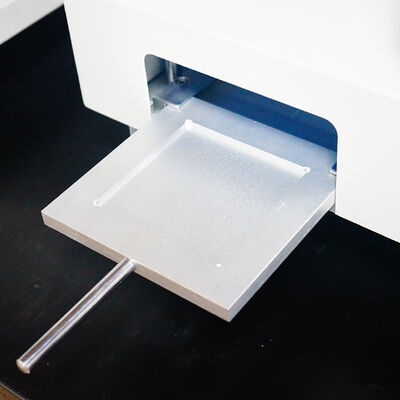

Specimen Holder	1 Set

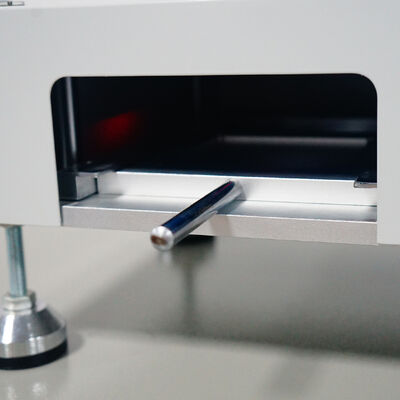

Packing Box	1 Set (Includes two steel balls and one sampling rod)

Furniture Testing Solutions

Our comprehensive testing equipment portfolio supports quality assurance and compliance testing for furniture manufacturers and material suppliers worldwide.
