EN BIFMA Comprehesive Fatigue Test Machine for Chair Sofa Furniture Testing Equipment

Brand Name:	Haida
MOQ:	1
Price:	$9,500-13,000

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong, China

Voltage:

220 V

Controller:

Touch Screen

Material:

Section Aluminum

Senor Accuracy:

0.3%

Control Panel:

Programmable LCD Touch Screen Controller

Seat Load:

0~200kg (adjustable)

Back Load:

0~100kg (adjustable)

Test Cyclic:

0~999,999 (adjustable)

Maximum Tension:

150kg

Maximum Thrust:

50kg

Maximum Pressure:

150kg

Vertical Stroke:

500mm

Horizontal Range:

500mm To 1200mm

Load Modules:

Quick Connector

Control Mode:

PLC With LCD Touch Screen

Highlight:

BIFMA fatigue test machine for furniture

chair sofa testing equipment

furniture durability testing machine

Product Description

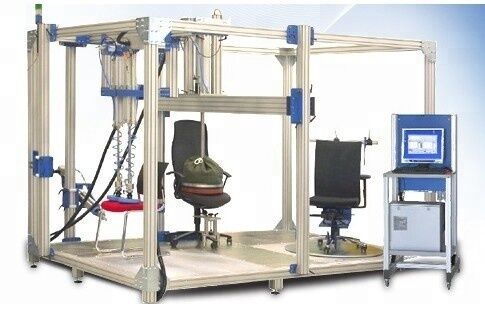

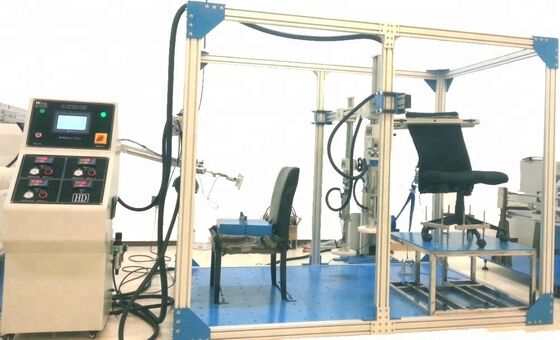

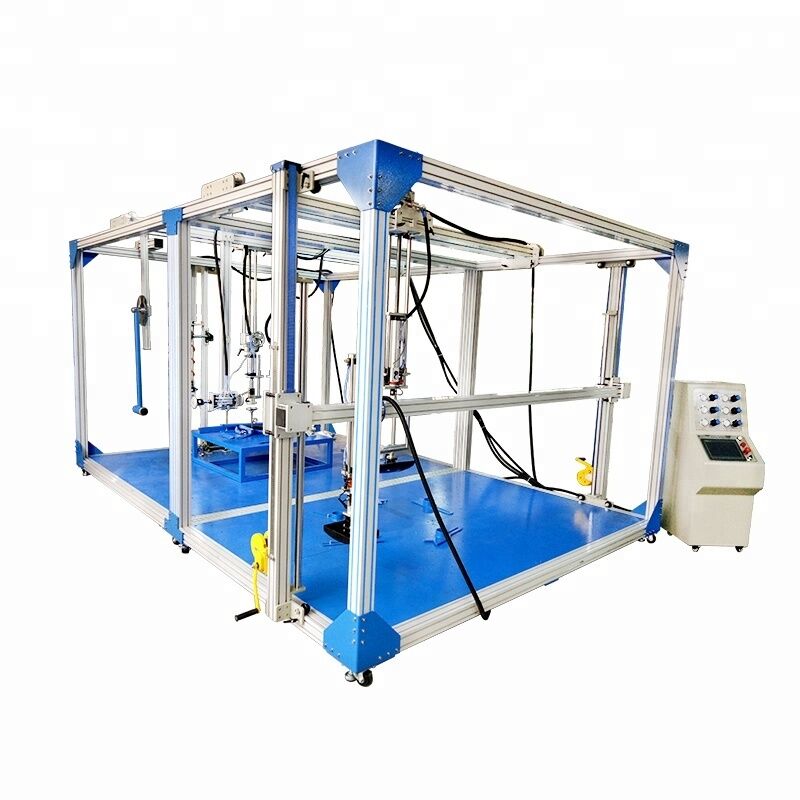

EN BIFMA Comprehensive Fatigue Test Machine for Chair & Sofa Furniture

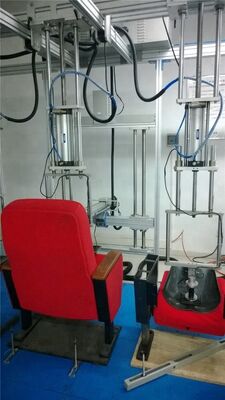

This advanced testing equipment simulates normal functional use to determine the structural strength of sofas and chairs by applying controlled loads and forces to various components. The system utilizes specific shape and load modules with programmable forms and frequencies to repeatedly test seats, backs, and armrests, with integrated force sensors displaying real-time pressure readings.

Testing Capabilities

Drop impact test for seat components
Horizontal cyclic load test for armrests
Arm downward load static test
Back strength durability testing
Vertical static load capacity testing
Chair and table leg horizontal load testing
Various cyclic and static vertical/horizontal load tests

Technical Specifications

Control System	Programmable LCD Touch Screen Controller with PLC
Sensor Accuracy	0.3%
Seat Load Capacity	0-200kg (adjustable)
Back Load Capacity	0-100kg (adjustable)
Test Cycles	0-999,999 (adjustable)
Maximum Tension	150kg
Maximum Horizontal Thrust	50kg
Maximum Vertical Pressure	150kg
Actuator Stroke	500mm

Key Features

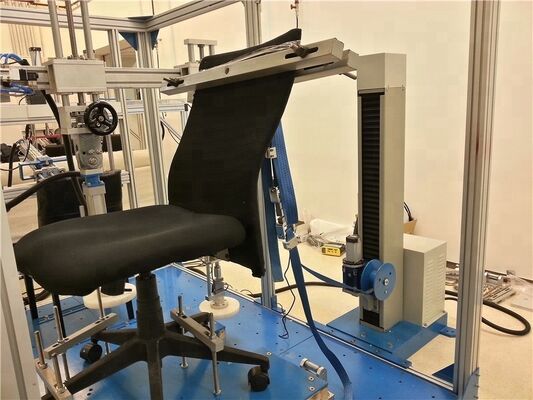

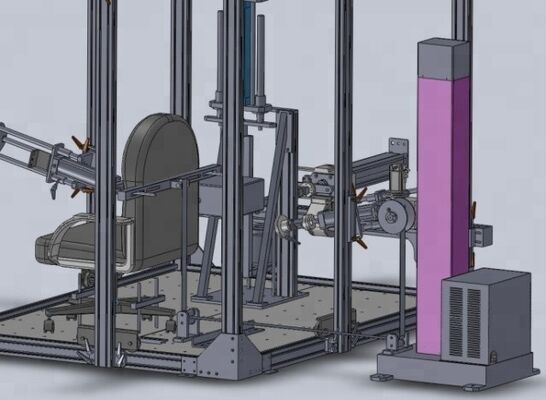

Tension mechanism with servo motor and strap pulley architecture for precise force control
Two independent electric actuator groups for vertical and horizontal testing
Adjustable vertical positioning with 150kg maximum pressure capacity
Flexible horizontal positioning with 500-1200mm adjustable range
Multiple screw holes on base plate for easy attachment installation
Quick-connect front-end connectors for load block and fixture replacement
Optional computer integration for force and displacement data recording

Manufacturer Profile

HAIDA INTERNATIONAL is a professional manufacturer with over 20 years of experience producing various testing equipment. Our products serve multiple industries including paper products, packaging, ink printing, adhesive tapes, footwear, leather products, toys, baby products, hardware, electronics, plastic and rubber products. HAIDA equipment is trusted by scientific research institutions, quality inspection organizations, and academic facilities worldwide.

Quality Assurance

We maintain rigorous quality control standards throughout our manufacturing process to ensure reliable and accurate testing equipment performance.

Customer Support & Services

Technical Support Commitment: We guarantee response within 48 hours and solution provision within 3 working days for any testing process issues.

Comprehensive Service Package

Operation videos and English operation manuals
Video conference technical support
On-site equipment installation and calibration
Equipment operation and technical training
Daily maintenance and equipment care guidance
Free technical training for factory visits
24-hour online contact availability
Complimentary software upgrades

Documentation & Resources

Product instructions and specifications
Detailed operation instructions and videos
Experiment test applications and reports

Problem Resolution Channels

24-hour social media communication
Seamless email support
Video conferencing for complex issues
On-site technical service when required
