BIFMA 5.1Furniture Tester Equipment Chair Stability Tester

Brand Name:	haida
Model Number:	HD-F778
MOQ:	1
Price:	$1,388

Detail Information

Product Description

Detail Information

Place of Origin:

China

Cylinder Stroke:

250mm

Loading Weight:

Forward Stability: 60kg/61kg; Rear Stability: 130kg

Horizontal Pull Force:

20N

Plate Thickness:

13 Mm

Loading Point Position:

60mm From Front Edge

Seat Loading Pad:

Diameter 200mm, Arc Surface 300mm

Test Space:

780mm X 740mm (L X W)

Machine Weight:

400kg (including Weight)

Power Supply:

1∮ AC 220V

Engine Power:

20W

Instrument Dimensions:

1350mm X 1000mm X 1850mm (L X W X H)

Packaging Dimensions:

1470mm X 1100mm X 1250mm

Gross Weight:

560kg

Power Supply Source:

Single-phase, 220V±10%, 50/60Hz

Main Test Items:

Office Chair Forward/backward Stability Test

Highlight:

BIFMA 5.1 furniture tester

chair stability testing equipment

furniture testing equipment with warranty

Product Description

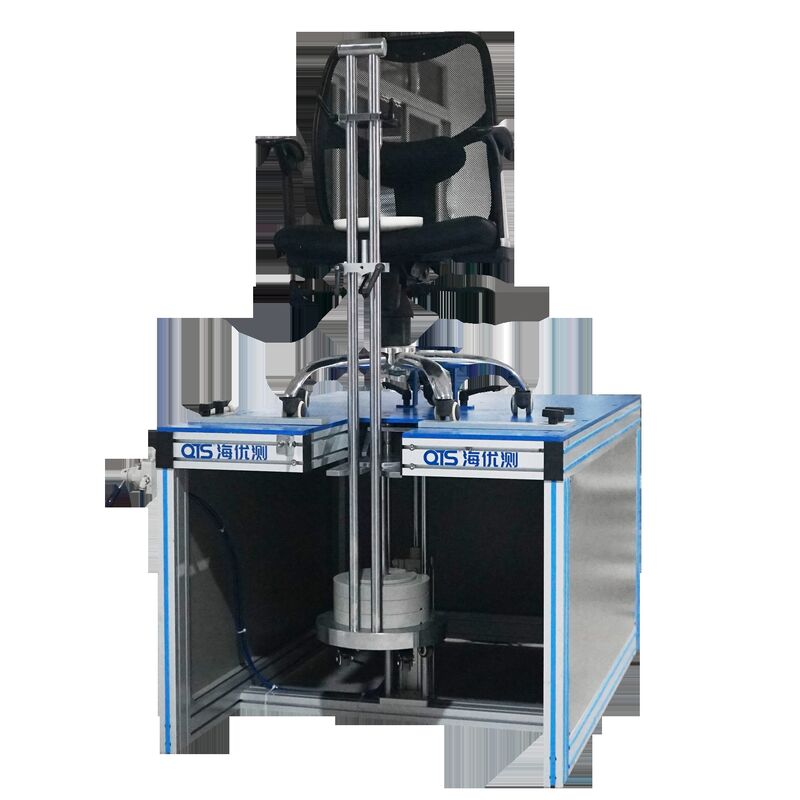

BIFMA 5.1 Furniture Tester Equipment - Chair Stability Tester

The chair stability tester is designed for comprehensive testing of various office chairs, stools, and seating products. This equipment evaluates mechanical properties including forward stability and backward stability at room temperature. Widely utilized in the office furniture industry, it enables manufacturers to assess product stability and enhance overall quality standards.

Technical Specifications

Cylinder Stroke	250mm

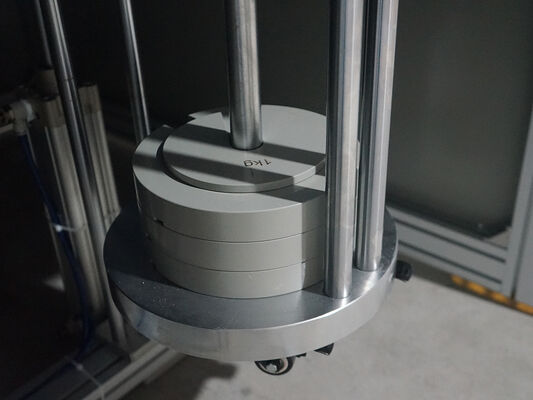

Loading Weight	Forward stability: European standard 60kg, American standard 61kg; Rear stability weight: 130kg
Horizontal Pull Force	20N
Plate for Fixing Sample	Thickness of 13mm
Loading Point Position	The center of the seat surface is 60mm away from the front edge

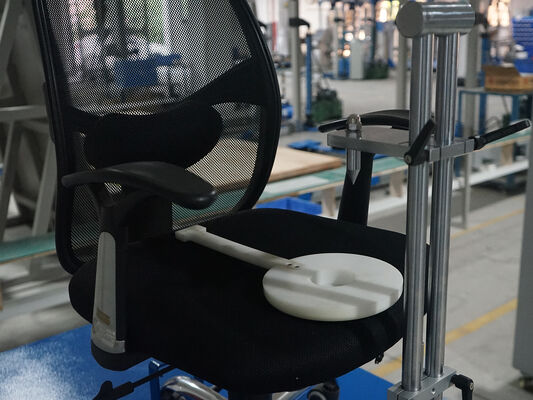

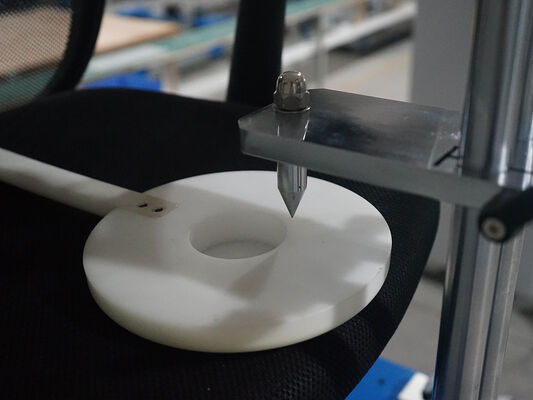

Seat Loading Pad	Diameter 200mm, arc surface 300mm
Sample Test Space	780mm x 740mm (L * W)
Machine Weight	Approximately 400kg (including weight)
Power Supply	1∮ AC 220V
Engine Power	Approximately 20W
Instrument Dimensions	1350mm x 1000mm x 1850mm (L * W * H)
Main Test Items	Office chair forward and backward stability test

Testing Applications

Forward Stability Test

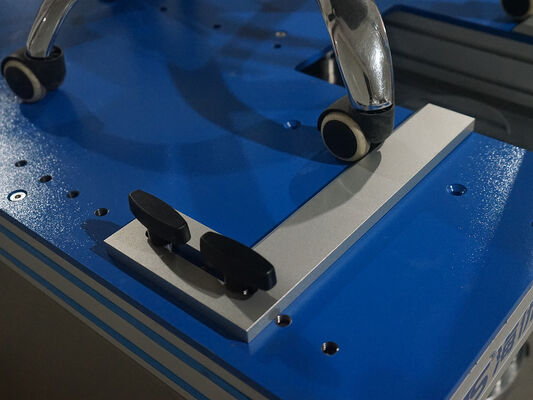

Position the sample on the platform using 13mm mobile blocks to prevent wheel movement. The cylinder-driven lifting mechanism applies 610N force at the seat surface center position, 60mm from the leading edge. Simultaneously, a 20N horizontal tension is applied to the chair back to evaluate forward stability performance and measure deformation under defined test loads.

Backward Stability Test

Secure the sample on the platform with 13mm blocks to prevent sliding. For chairs with insufficient back height, additional blocks are used to accommodate the loading plate. Apply 1300N force on the seat surface while applying horizontal thrust 6mm from the top to assess backward stability performance.

Why Choose Our Furniture Testing Equipment?

Considerate Service: Accommodates different country plugs with manual voltage change from 110V to 220V, includes insurance indicator
Excellent After-Sales Service: 12-month warranty with free controller repair assistance and replacement parts
Comprehensive Support: Operation videos and English operation manuals provided
Technical Assistance: Video conference support available for complex issues
