Automatic Computerized IFD Foam Compression Hardness Testing Machine Sponge Rebound Test Machine

Brand Name:	Haida
MOQ:	1
Price:	$1,600-2,600

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong, China

Voltage:

220 V

Motor Type:

AC Inverter Motor

Capacity:

200Kg

Max Stroke:

200mm

Test Speed:

100d20mm/min

Induction Way:

Load Cell

Control Display:

Computer

Up Plate Diameter:

200mm

Load Sensor:

2KN

Maximum Sample Size:

380 X 380 X150mm (L*W*H)

Standard Sample:

GB/ISO: 380 X 380 X 50mm (L*W*H)、ASTM: 380 X 380 X 100mm (L*W*H)

Test Cycles:

1~999999

Test Stoke:

180mm

Dimension:

600 X 500 X 1080 Mm (L*W*H)

Power:

850W

Highlight:

automatic foam compression hardness tester

computerized sponge rebound test machine

IFD foam testing equipment with warranty

Product Description

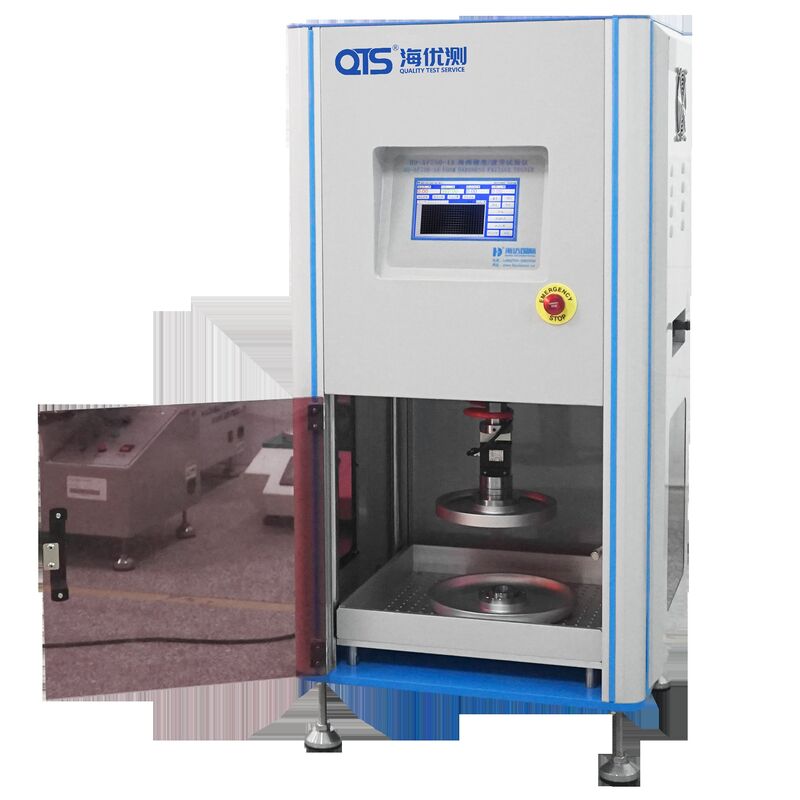

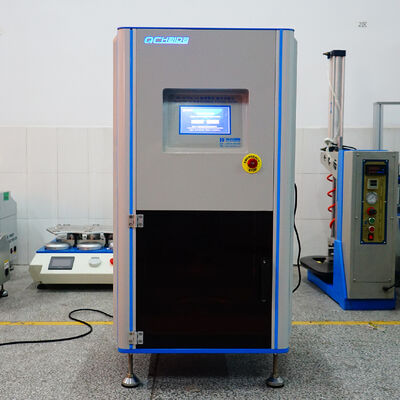

Automatic Computerized IFD Foam Compression Hardness Testing Machine

Professional testing equipment for measuring compressed indentation hardness of sponge, foam, and other porous elastic materials.

Foam Pounding Fatigue Test Machine

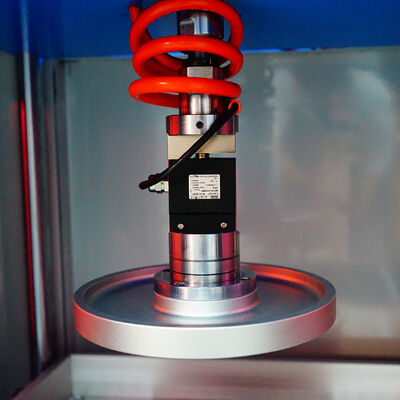

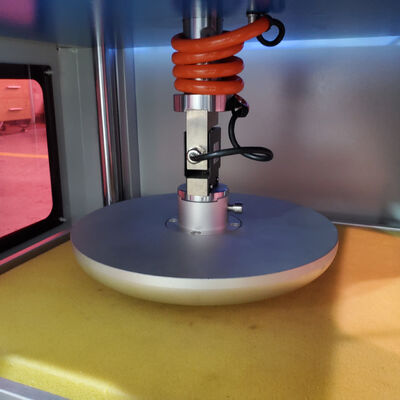

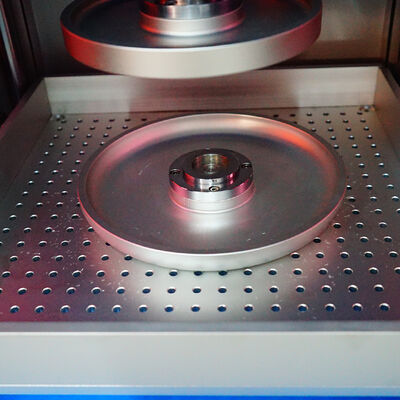

This advanced testing system places specimens under a pressure plate that compresses materials at specified speeds until reaching standard-required concavity. The load cell transmits pressure data to the computer for processing and display, enabling precise measurement of indentation hardness for sponge, foam, and similar materials.

Technical Specifications

Compliance Standards

GB/T 12825-2003; GB/T 18941-2003; ISO2439-2008; ISO3385-2014; ASTM D3574 (Point of test 13); GB/T_10807-2006

Capacity	2KN Load Sensor
Maximum Sample Size	380 x 380 x 150mm (LWH)
Standard Sample	GB/ISO: 380 x 380 x 50mm (LWH) ASTM: 380 x 380 x 100mm (LWH)
Test Cycles	1~999,999
Test Speed	100 mm/min±20mm/min (GB/T 12825-2003, ISO2439-2008, GB/T_10807-2006) 70±5/min (GB/T 18941-2003, ISO3385-2014) 250 mm/min±25mm/min (ASTM D3574)
Test Stroke	180mm
Dimension	600 x 500 x 1080 mm (LWH)
Power	850W

Why Choose Our Testing Equipment?

Considerate Service: Compatible with different country plugs, manually adjustable voltage from 110V to 220V, with insurance indicator
Excellent After-Sales Service: 12 months warranty with free controller repair services, even for non-original components
Comprehensive Support: Operation videos and English operation manuals provided
Technical Assistance: Video conference support available for complex technical issues

Please feel FREE to contact us if you have any requirements. Visit our OFFICIAL WEBSITE at: www.haidatestequipment.com

For more information, please leave a message below and click "CONTACT SUPPLIER"

Thank you for your time and attention!
