products details

Created with Pixso. Home Created with Pixso. Products Created with Pixso.
Furniture Testing Equipment Series
Created with Pixso.

Office Chair Drop Impact Test Machine Furniture Durability Tester Chair Stability Testing Equipment

Office Chair Drop Impact Test Machine Furniture Durability Tester Chair Stability Testing Equipment

Office Chair Drop Impact Test Machine Furniture Durability Tester Chair Stability Testing Equipment

Brand Name: Haida
MOQ: 1
Price: $4,999
Detail Information
Product Description
Detail Information
Place of Origin:
Guangdong, China
Certification:
CE,ISO
Power Supply:
AC220V±10%, 50/60Hz
Gross Weight:
820kg
Machine Dimensions:
2750*1510*1350mm
Adjustable Drop Height:
10mm To 250mm
Largest Chair Width:
1000mm
Test Speed:
10~30 Times/min
Times Setting:
0 ~ 999,999
Control Mode:
PLC And LCD Touch Screen
Chair Seating Height:
200-600mm (adjustable)
Air Source:
6kg/cm2
Test Bag Weight:
136kg (can Be Divided To 102kg, 57kg)
Impact Sandbags Diameter:
16 Inch
Impact Sandbags Weight:
125 Pounds
Impact Speed:
10-30 Times/minute
Static Pressure Speed:
10-30 Times/minute
Highlight:

office chair durability tester

,

furniture drop impact test machine

,

chair stability testing equipment

Product Description

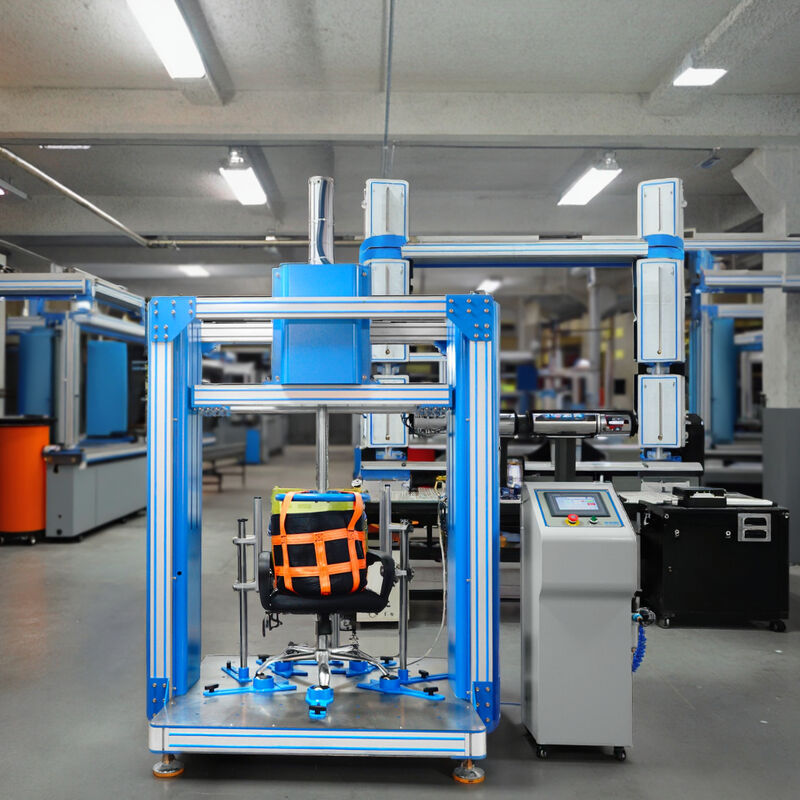

Office Chair Drop Impact Test Machine
Furniture Durability Tester and Chair Stability Testing Equipment designed to evaluate office chair performance under rigorous conditions.
Product Overview
Office Chair Drop Impact Test Machine Furniture Durability Tester Chair Stability Testing Equipment 0
The Chair Drop Impact Tester is engineered to evaluate the ability of office chairs to withstand heavy and abusive impact forces on the seat. This testing equipment assesses chair durability against fatigue stresses and wear caused by downward vertical forces on the seat surface.
Office Chair Drop Impact Test Machine Furniture Durability Tester Chair Stability Testing Equipment 1
General Specifications
Machine Dimensions: 2750 × 1510 × 1350mm (W × D × H)
Power Supply: Single-phase, AC220V±10%, 50/60Hz (customizable)
Gross Weight: 820kg
Office Chair Drop Impact Test Machine Furniture Durability Tester Chair Stability Testing Equipment 2
Standard Features
Feature Specification
Adjustable Drop Height 10mm to 250mm
Largest Chair Dimensions Width 1000mm
Test Speed 10-30 times/min
Times Setting 0 - 999,999
Control Mode PLC and LCD Touch Screen
Chair Seating Height 200-600mm (adjustable)
Air Source 6kg/cm²
Accessories Total test bag weight 136kg (divisible to 102kg, 57kg)
Office Chair Drop Impact Test Machine Furniture Durability Tester Chair Stability Testing Equipment 3
Compliance Standards
Application Standard: BIFMA X5.1 2017
Reference Document: BIFMA X5.1 2017 Clause 7 Drop Test Dynamic
Test Procedures
Functional Load Test
  • Raise a 102 kg (225 lb) test bag 152 mm (6 in) above the uncompressed seat and release one time
  • Remove the test bag
  • For chairs with seat height adjustment, set to lowest position and repeat the test
Proof Load Test
Similar to Functional Load Test but using 136 kg (300 lb) force
Office Chair Drop Impact Test Machine Furniture Durability Tester Chair Stability Testing Equipment 4
Seating Durability Impact Test
Reference Document: BIFMA X5.1 2017 Clause 10.3 Impact Test
Raise a 57 kg (125 lb) test bag 36 mm (1.4 in) above the uncompressed seat and release for 100,000 cycles at 10-30 cycles/min.
Office Chair Drop Impact Test Machine Furniture Durability Tester Chair Stability Testing Equipment 5
Product Gallery
Office Chair Drop Impact Test Machine Furniture Durability Tester Chair Stability Testing Equipment 6 Office Chair Drop Impact Test Machine Furniture Durability Tester Chair Stability Testing Equipment 7
Company Information
HAIDA INTERNATIONAL is a professional manufacturer of testing equipment with over 15 years of industry experience. Our products serve diverse industries including paper products, packaging, ink printing, adhesive tapes, footwear, leather products, toys, electronics, plastics, rubber, and scientific research institutions.
Office Chair Drop Impact Test Machine Furniture Durability Tester Chair Stability Testing Equipment 8
Equipment Services
Technical Support: 48-hour response guarantee with solutions within 3 working days
Resources Provided: Operation videos and English operation manuals
Video Conference Support: Available for technical assistance
Onsite Services
  • Device installation and setup
  • Equipment operation and technical training
  • Equipment calibration services
  • Daily maintenance and equipment care
Additional Support
  • Free technical training for factory visits
  • 24-hour online contact availability
  • Free software upgrades
  • Comprehensive product documentation and test reports
Problem Resolution
  • 24-hour social media communication
  • Seamless email support
  • Video conferencing solutions
  • Onsite technical service
Office Chair Drop Impact Test Machine Furniture Durability Tester Chair Stability Testing Equipment 9
Why Choose HAIDA?
  • Considerate Service: International plug compatibility, manual voltage change from 110V to 220V, insurance indicators
  • Excellent After-Sales Service: 12-month warranty with free controller repairs and replacement parts, even for non-original components
  • Comprehensive Support: Operation videos, English manuals, and video conference assistance
Contact Information

Please feel free to contact us with any requirements. Visit our official website at:
www.haidatestequipment.com

For more information, please leave a message below and click "CONTACT SUPPLIER".
Thank you for your time and attention!
