Chair Arm and Back Strength Vertical and Horizontal Test Chair Strength and Durability Tester

Brand Name:	haida
MOQ:	1

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong, China

Power Supply:

AC220V±10%, 50/60Hz

Capacity:

0-200kg

Setting Time:

0-99S (adjustable)

Control Interface:

LCD Touch Screen

Motor Type:

Servo Motor & Air Cylinder

Test Platform:

Arm Test

Test Grips:

Arm Vertical & Back Strength

Machine Dimensions:

2100*1100*1700mm

Compressed Air:

6-7kg/cm2

Electrical Consumption:

0.2KW

Gross Weight:

380kg

Backrest Force:

667N Or 1001N

Arm Vertical Force:

750N Or 1125N

Arm Horizontal Force:

445N Or 667N

Test Cycles:

80,000-120,000 Cycles

Highlight:

chair strength tester equipment

furniture durability testing machine

vertical horizontal chair tester

Product Description

Chair Arm and Back Strength Vertical and Horizontal Test Chair Strength and Durability Tester

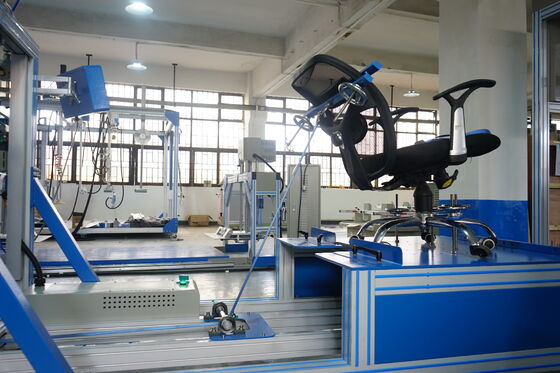

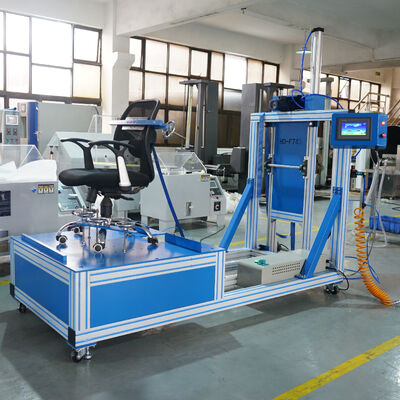

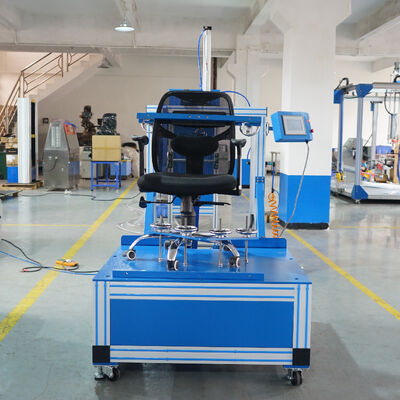

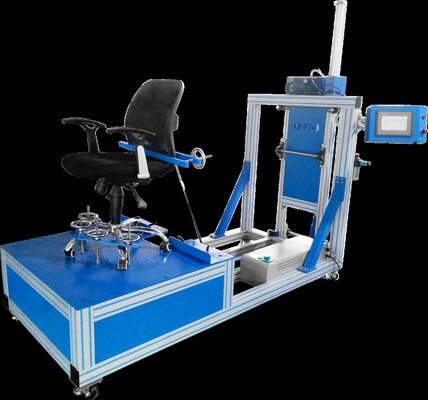

The Chair Strength and Durability Tester is designed to test office chair arm (vertical and horizontal test) and back strength. It features a PLC controller with touch screen interface for inputting test parameters, allowing setting of test force and cycles.

General Specifications

Machine Dimensions: 2100 × 1100 × 1700mm (W × D × H)

Compressed Air Requirement: 6-7kg/cm²

Electrical Consumption: 0.2KW

Power Supply: Single-phase, AC220V±10%, 50/60Hz (customizable)

Gross Weight: 380kg

Standard Features

Feature	Specification
Capacity	0-200kg
Setting Time	0-99S (adjustable)
Control System	PLC control with LCD touch screen interface
Motor	One servo motor & air cylinder to provide pull force

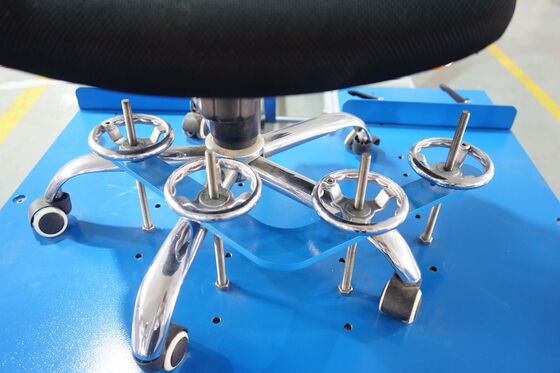

Test Accessories	One test platform for arm test, arm vertical test grips, back strength test grips
Emergency Button	Included
Number and Cycles	Programmable
Power	One phase, AC 220V, 50 Hz

Application Standards

BIFMA X5.1-2017 sections 5, 6, 12, 13, 14, 15

Reference Document: BIFMA X5.1-2017

Section 5 - Backrest Strength Test - Static Type I: Apply force of 667N (150lbf) or 1001N (225lbf) to backrest at backstop position for one minute at 70±10 degrees angle.

Section 6 - Backrest Strength Test - Static Type II & III: Same as Section 5 with force of 667N (150lbf) or 1001N (225lbf) at 90±10 degrees angle.

Section 12 - Arm Strength Test - Vertical Static: Apply force of 750N (169lbf) or 1125N (253lbf) for one minute.

Section 13 - Arm Strength Test - Horizontal Static: Apply force of 445N (100lbf) or 667N (150lbf) for 15 seconds in outward direction.

Section 14 - Backrest Durability Test - Cyclic Type I: 120,000 cycles for chairs with backrest width ≤406mm, 80,000 cycles for width >406mm.

Section 15 - Backrest Durability Test - Cyclic Type II and III: 120,000 cycles for chairs with backrest width ≤406mm, 80,000 cycles for width >406mm.
