Polymeric Material Foam IFD Hardness Test Tensile Compression Tester Machine

Polymeric Material Foam IFD Hardness Test Tensile Compression Tester Machine

Polymeric Material Foam IFD Hardness Test Tensile Compression Tester Machine

Brand Name: Haida
Model Number: HD-F750A
MOQ: 1
Price: $4,000-5,500
Detail Information
Product Description
Detail Information
Place of Origin:
Guangdong, China
Power Supply:
Single Phase, 220V, 50Hz
Capacity:
200KG
Motor Type:
Servo Motor
Driver Type:
Taiwan High Precision Ball Screw
Weight:
160KG
Sensor Type:
Load Cell
Dimension:
790×590×1010mm
Control System:
Computer
Unit Options:
Kg, N, LB
Upper Plate Diameter:
200mm
Lower Plate Size:
420×420mm
Max Stroke:
500mm
Test Speed:
0~500mm/min
Gross Weight:
170kg
Packaging Dimensions:
700×920×1200mm
Highlight:

Polymeric foam hardness tester machine

,

Foam tensile compression tester

,

Furniture testing equipment with warranty

Product Description
Polymeric Material Foam IFD Hardness Test Tensile Compression Tester Machine
Polymeric Material Foam IFD Hardness Tester by Indentation Technique

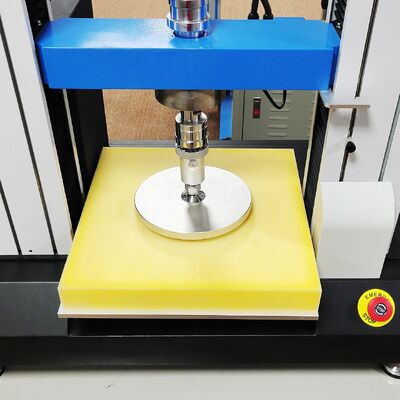

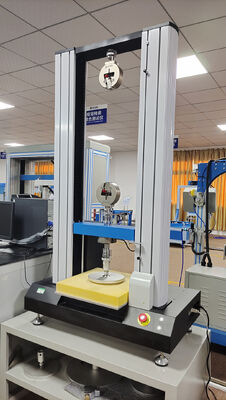

Polymeric Material Foam IFD Hardness Test Tensile Compression Tester Machine 0 Polymeric Material Foam IFD Hardness Test Tensile Compression Tester Machine 1
Product Overview
This tensile foam tester performs sponge sag, tensile testing, and material tensile and compression tests. It is widely used for testing sponge, foam, and other porous elastic materials for compression indentation hardness, sag ratio, and various physical properties including tensile and compression testing.
Applications & Test Purpose
The foam compression tester is designed to test material compressed indentation hardness for sponge, foam, and other porous elastic materials. The specimen is placed under a pressure plate that compresses at a specified speed until reaching the required concavity according to national standards. The load cell feeds pressure data to the computer for processing and display, enabling accurate measurement of indentation hardness.

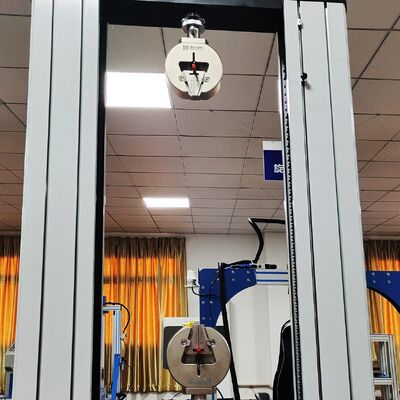

Polymeric Material Foam IFD Hardness Test Tensile Compression Tester Machine 2
Design Standard
ASTM D 3574
General Specifications
  • Packaging Dimensions: 700×920×1200mm (W×D×H)
  • Power Supply: Single-phase, 220V±10%, 50/60Hz (customizable)
  • Gross Weight: 170kg
Standard Features
Feature Specification
Control and Display Computer
Sensor Load Cell
Capacity 200KG
Unit Kg, N, LB
Upper Plate Diameter 200mm, bottom fillet R1mm
Lower Plate 420×420mm, holes diameter 6mm, space 20mm
Maximum Stroke 500mm
Test Speed 0-500mm/min
Motor Servo Motor
Driver Taiwan High Precision Ball Screw
Power Single Phase, 220V, 50Hz
Weight 160KG
Dimension 790×590×1010mm
Accessories One computer with software

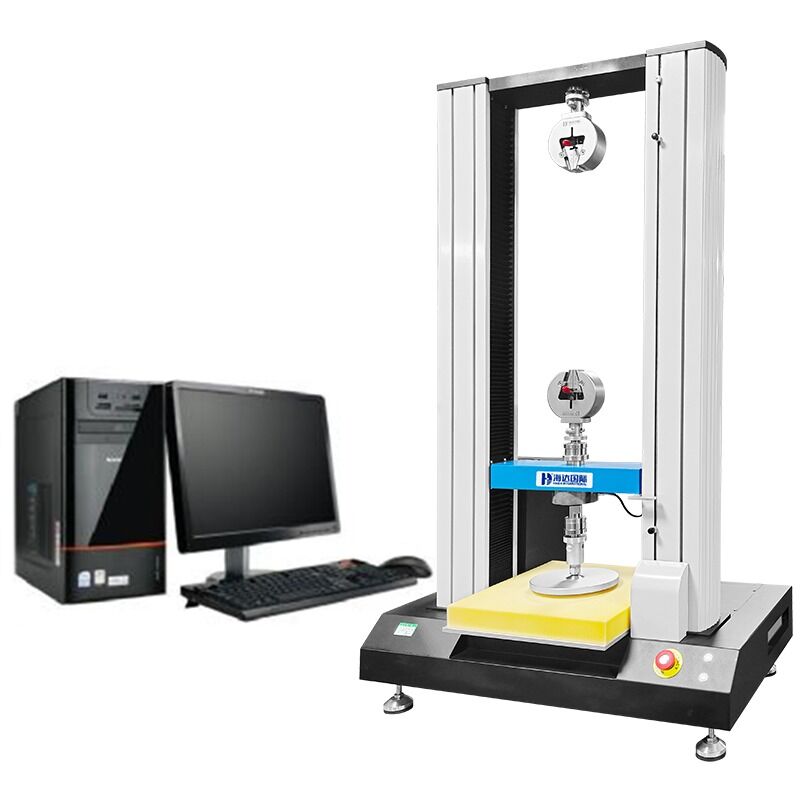

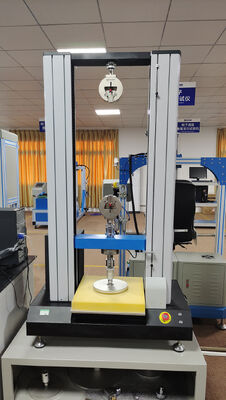

Polymeric Material Foam IFD Hardness Test Tensile Compression Tester Machine 3 Polymeric Material Foam IFD Hardness Test Tensile Compression Tester Machine 4
Company Information
HAIDA INTERNATIONAL is a professional manufacturer of various testing equipment with over 20 years of experience. HAIDA products are widely used in paper products, packaging, ink printing, adhesive tapes, bags, footwear, leather products, environment, toys, baby products, hardware, electronic products, plastic products, rubber products and other industries, and applicable to all scientific research units, quality inspection institutions and academic fields.
Polymeric Material Foam IFD Hardness Test Tensile Compression Tester Machine 5
Quality Control
Polymeric Material Foam IFD Hardness Test Tensile Compression Tester Machine 6
Our Services
Haida Equipment Service: If you face any problems during testing, we promise to reply within 48 hours and provide solutions within 3 working days. We offer operation videos and English operation manuals, plus video conferencing support.
Onsite Services
  • Device installation
  • Equipment operation test technology training
  • Equipment calibration
  • Daily maintenance and equipment maintenance
Additional Support
  • Free technical training for visiting factories
  • 24-hour online contact
  • Free software upgrades
  • Free documentation: Product instructions, operation instructions/videos, experiment test applications and reports
Device Problem Handling
  • Social media 24-hour online communication
  • Email seamless docking
  • Video conferencing
  • Free on-site technical service
Polymeric Material Foam IFD Hardness Test Tensile Compression Tester Machine 7
