IP5X & 6X Programmable Vacuum Sand and Dust test Chamber Environmental Test Chamber Dust-proof Testing for Electronics

Brand Name:	Haida
Model Number:	HD-E706
MOQ:	1
Price:	€4,182.07-5,142.87

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong, China

Internal Dimension:

600*600*600mm

External Dimension:

1100*900*1650mm

Test Sample Size:

300*300*50mm

Chamber Material:

SUS#304 Stainless Steel

Mesh Hole Size:

75um

Mesh Wire Diameter:

50um

Talcum Powder Amount:

2kg/m³

Airflow Speed:

No More Than 2m/s

Vacuum Pump Capacity:

60-600 L/H

Door Type:

Left Open Door With Tempered Glass

Power Supply:

AC380V, 50/60Hz, Three Phase

Fan Type:

Centrifugal Fan

Controller Type:

PLC Touch Screen

Cycle Time:

Adjustable

Test Time:

0s ~99m99s

Highlight:

IP5X dust test chamber

programmable environmental test chamber

dust-proof testing for electronics

Product Description

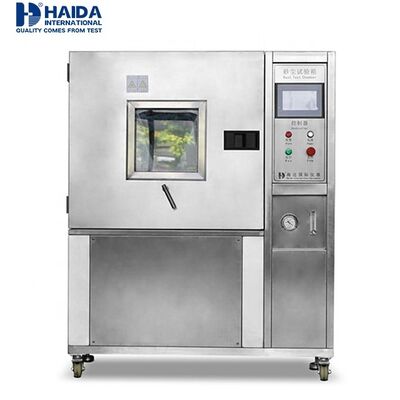

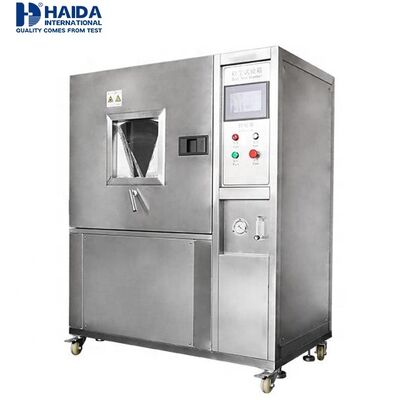

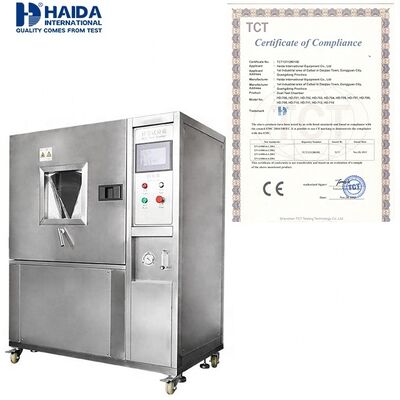

IP5X & 6X Programmable Vacuum Sand and Dust Test Chamber

Professional environmental test chamber designed for dust-proof testing of electronics, ensuring compliance with IP5X and IP6X protection standards.

Product Overview

This programmable vacuum sand and dust test chamber provides reliable environmental testing for electronic components and devices, verifying their resistance to dust ingress under controlled conditions.

Technical Specifications

Item	Value
Warranty	1 year
Customized Support	OEM, ODM
Place of Origin	Guangdong, China
Brand Name	Haida
Model Number	HD-E706
Power	Electronic
Internal Dimension (W×D×H)	600×600×600mm
External Dimension (W×D×H)	1100×900×1650mm
Test Sample (W×D×H)	300×300×50mm
Chamber Material	SUS#304 Stainless Steel
Square Mesh Sieve Specifications	Mesh hole 75μm, mesh metal wire diameter 50μm
Talcum Powder Amount	2kg/m³
Airflow Speed	No more than 2m/s

Controller Features

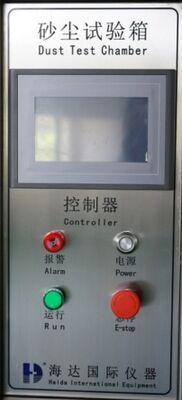

PLC Touch Screen controller with programmable settings
Adjustable blowing dust time (Stop/Blow) cycles
Configurable cycle time settings
Pre-set test time range: 0s to 99 minutes 99 seconds

Additional Specifications

Vacuum pump capacity: 60-600 L/H
Left-opening door with tempered glass viewing window
Power supply: AC 380V, 50/60Hz, three phase
Centrifugal fan system
Safety protection devices including meter over-temperature function, phase shortage protection, and power short-circuit protection

Manufacturer Profile

Haida specializes in manufacturing high-quality environmental test chambers and testing equipment for industrial applications.
