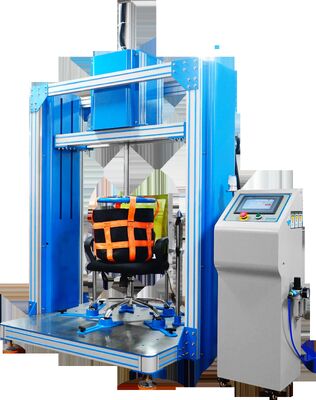

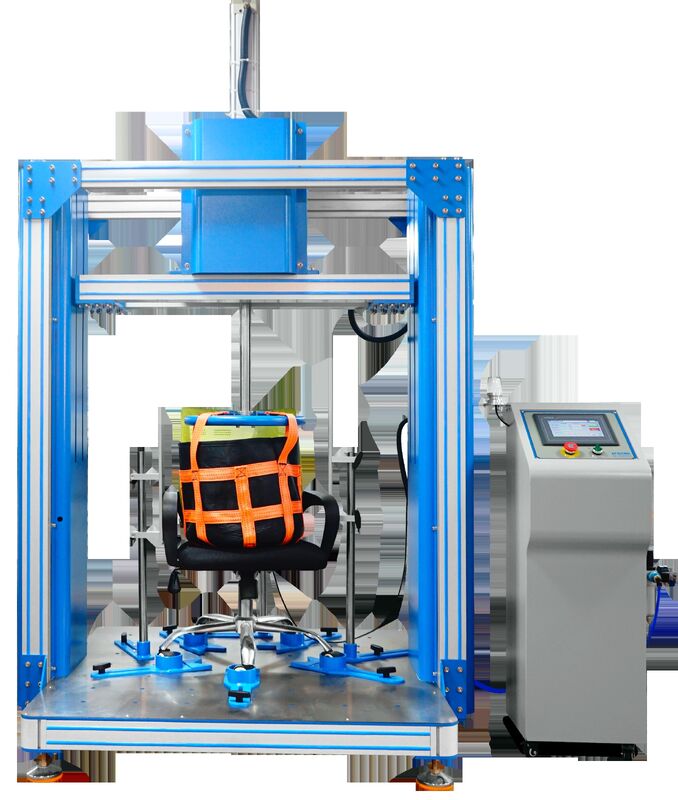

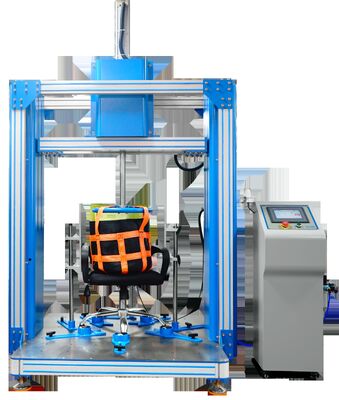

Swivel Durability Testing Equipment Furniture Rotating Chair Machine

Swivel Durability Testing Equipment Furniture Rotating Chair Machine

Swivel Durability Testing Equipment Furniture Rotating Chair Machine

Brand Name: Haida
Model Number: HD-F736
MOQ: 1
Price: $6,300
Detail Information
Product Description
Detail Information
Place of Origin:
Guangdong, China
Certification:
CE,ISO
Counter Range:
0-999,999
Impact Sandbags Diameter:
16 Inch
Impact Sandbags Weight:
125 Pounds
Impact Speed:
10-30 Times/minute
Static Pressure Speed:
10-30 Times/minute
Cylinder Stroke:
0-300mm
Rail Height:
90-135cm
Power Supply:
AC220V, 3A
Machine Dimensions:
2750*1510*1350mm
Gross Weight:
820kg
Adjustable Drop Height:
10mm To 250mm
Largest Chair Width:
1000mm
Test Speed:
10~30 Times/min
Chair Seating Height:
200-600mm
Air Source Pressure:
6kg/cm2
Highlight:

furniture swivel testing machine

,

durability testing equipment for chairs

,

rotating chair testing equipment

Product Description
Swivel Durability Testing Equipment Furniture Rotating Chair Machine
Test rig for chair drop durability is used to evaluate the ability of the chair to withstand heavy and abusive impact forces on the seat. It can also evaluate the ability of chairs to withstand fatigue stresses and wear caused by downward vertical force(s) on the seat.
Swivel Durability Testing Equipment Furniture Rotating Chair Machine 0 Swivel Durability Testing Equipment Furniture Rotating Chair Machine 1
General Specifications
Machine Dimensions: (W x D x H) 2750*1510*1350mm
Power supply source: single-phase, AC220V±10%, 50/60Hz (can be appointed)
Gross Weight: 820kg
Swivel Durability Testing Equipment Furniture Rotating Chair Machine 2
Standard Features
Feature Specification
Adjustable Drop Height 10mm to 250mm
Largest chair dimensions width 1000mm
Test speed 10~30 times/min
Times setting 0 ~ 999,999
Control mode PLC and LCD touch screen
Chair seating height 200-600mm (adjustable)
Air source 6kg/cm²
Accessories Total test bag weight 136kg (can be divided to 102kg, 57kg)
Swivel Durability Testing Equipment Furniture Rotating Chair Machine 3
Application Standards
BIFMA X5.1 2017
Reference Documentation
BIFMA X5.1 2017 clause 7 Drop Test Dynamic
Test Procedures
Functional Load Test
  • A test bag weighing 102 kg (225 lb.) shall be raised 152 mm (6 in.) above the uncompressed seat and released one time
  • Remove the bag
  • For chairs with seat height adjustment features, set height to its lowest position and repeat the test
Proof Load Test
Similar to Functional Load Test, but the force is 136 kg (300 lb)
Swivel Durability Testing Equipment Furniture Rotating Chair Machine 4
Seating Durability Test Cycles
Reference: BIFMA X5.1 2017 clause 10.3 Impact test
Test Procedure
A test bag weighing 57 kg (125 lb.) shall be raised 36 mm (1.4 in.) above the uncompressed seat and released for 100,000 cycles at 10-30 cycles/min
Swivel Durability Testing Equipment Furniture Rotating Chair Machine 5
Product Images
Swivel Durability Testing Equipment Furniture Rotating Chair Machine 6 Swivel Durability Testing Equipment Furniture Rotating Chair Machine 7
Company Information
HAIDA INTERNATIONAL
Professional manufacturer of various kinds of testing equipment with over 15 years of experience. HAIDA products are widely used in paper products, packaging, ink printing, adhesive tapes, bags, footwear, leather products, environment, toys, baby products, hardware, electronic products, plastic products, rubber products and other industries, and applicable to all scientific research units, quality inspection institutions and academic fields.
Swivel Durability Testing Equipment Furniture Rotating Chair Machine 8
Quality Control
Swivel Durability Testing Equipment Furniture Rotating Chair Machine 9
Our Services
Haida Equipment Service
If you face any problems during testing process, we promise to reply within 48 hours and provide solutions within 3 working days. We offer operation videos and English operation manuals. Video conferencing available.
Onsite Service
  • Device installation
  • Equipment Operation Test Technology training
  • Equipment Calibration
  • Daily maintenance and maintenance of equipment
Additional Services
  • Free technical training for visiting factories
  • 24-hour Online contact
  • Free software upgrades
  • Free documentation: Product Instruction, Operation instructions/videos, Experiment Test applications and reports
Device Problem Handling
  • Social media 24 hours online communication
  • Mail seamless docking
  • Video conferencing
  • Free door-to-door service
Swivel Durability Testing Equipment Furniture Rotating Chair Machine 10
Why Choose Us?
  • Considerate Service: Different countries plugs, manually change voltage from 110V to 220V, insurance indicator
  • Excellent After Sale Service: 12 months warranty. Free repair of problem controllers, free replacement parts, even if not from our factory
  • Operation videos and English operation manuals available
  • Video conferencing support
Please feel FREE to contact us if you have any needs. And welcome to visit our OFFICIAL WEBSITE at:
www.haidatestequipment.com
If you want to know more information... Please leave a message below and click "CONTACT SUPPLIER"
Thanks for your time and attention!
