Sponge Foam Hardness Compression Tensile Tester for Sofa/Mattress/Furniture Universal Tensile Testing Machine

Brand Name:	HAIDA
Model Number:	HD-F750A
MOQ:	1
Price:	$4,000-5,899

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong, China

Sensor Type:

Load Cell

Capacity:

500KG

Measurement Units:

Kg, N, LB

Upper Plate Diameter:

200mm

Upper Plate Fillet:

R1mm

Lower Plate Dimensions:

380X380mm

Lower Plate Holes:

6mm Diameter, 20mm Spacing

Maximum Stroke:

1200mm (including Fixture)

Test Speed Range:

0.1~500mm/min

Motor Type:

Servo Motor

Power Supply:

Single Phase, 220V, 50/60Hz

Machine Weight:

160KG

Dimensions:

790×590×1010mm

Ball Screw:

Taiwan High Precision

Design Standard:

ASTM D 3574

Highlight:

foam hardness compression tester

universal tensile testing machine

furniture foam tensile tester

Product Description

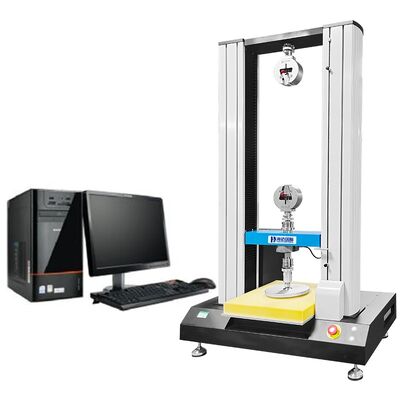

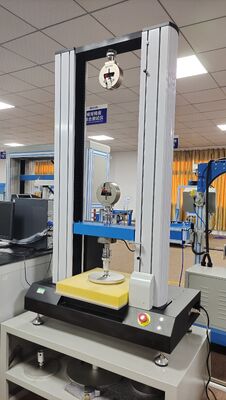

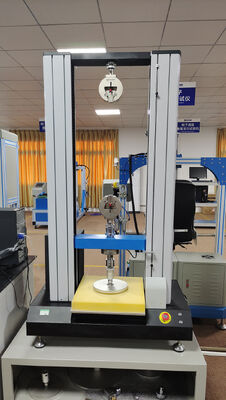

Sponge Foam Hardness Compression Tensile Tester

Universal tensile testing machine designed for sofa, mattress, and furniture applications, capable of performing comprehensive foam and sponge material testing.

Product Overview

The Foam Hardness Compression Tensile Tester is a versatile testing instrument that performs sag, tensile, and compression tests on sponge and foam materials. This universal testing machine evaluates compression indentation hardness, sag ratio, and various physical properties of porous elastic materials including tensile and press testing capabilities.

Applications & Testing Purpose

This foam compression tester measures compressed indentation hardness of porous elastic materials such as sponge and foam. The system compresses specimens at specified speeds until reaching required concavity standards, with load cell feedback providing precise pressure measurements for accurate material hardness evaluation.

Technical Specifications

Item	Specifications
Control and Display	Computer
Sensor	Load Cell
Capacity	200KG
Units	Kg, N, LB
Upper Plate	Diameter 200mm, bottom fillet R1mm
Lower Plate	420×420mm, holes diameter 6mm, space 20mm
Maximum Stroke	500mm
Test Speed	0~500mm/min
Motor	Servo Motor
Driver	Taiwan High Precision Ball Screw
Power	Single Phase, 220V, 50/60Hz
Weight	160KG
Dimensions	790×590×1010mm
Accessories	One computer with software
Design Standard	ASTM D 3574

Manufacturer Information

HAIDA INTERNATIONAL is a professional manufacturer with over 20 years of experience producing various testing equipment. HAIDA products serve diverse industries including paper products, packaging, ink printing, adhesive tapes, footwear, leather products, electronics, plastic and rubber products, and are trusted by scientific research units, quality inspection institutions, and academic organizations worldwide.

Quality Assurance

Comprehensive Service Support

Haida Equipment Service:

48-hour response guarantee for technical issues with solutions within 3 working days
Operation videos and English operation manuals provided
Video conference support available

Onsite Services:

Professional device installation
Equipment operation and test technology training
Precision equipment calibration
Daily maintenance and equipment care guidance

Additional Support Features:

Free technical training for factory visits
24-hour online contact availability
Complimentary software upgrades
Comprehensive documentation including product instructions, operation videos, and test applications

Device Problem Resolution:

24-hour social media communication
Seamless email support
Video conferencing solutions
Professional on-site service when required
